Rolled Ball Screws

JBK

JBF

Search JLS models or products

Choose a product family below. No table opens until you select it.

Product specifications

Open one family at a time.

Rolled Ball Screws1 family

JLS

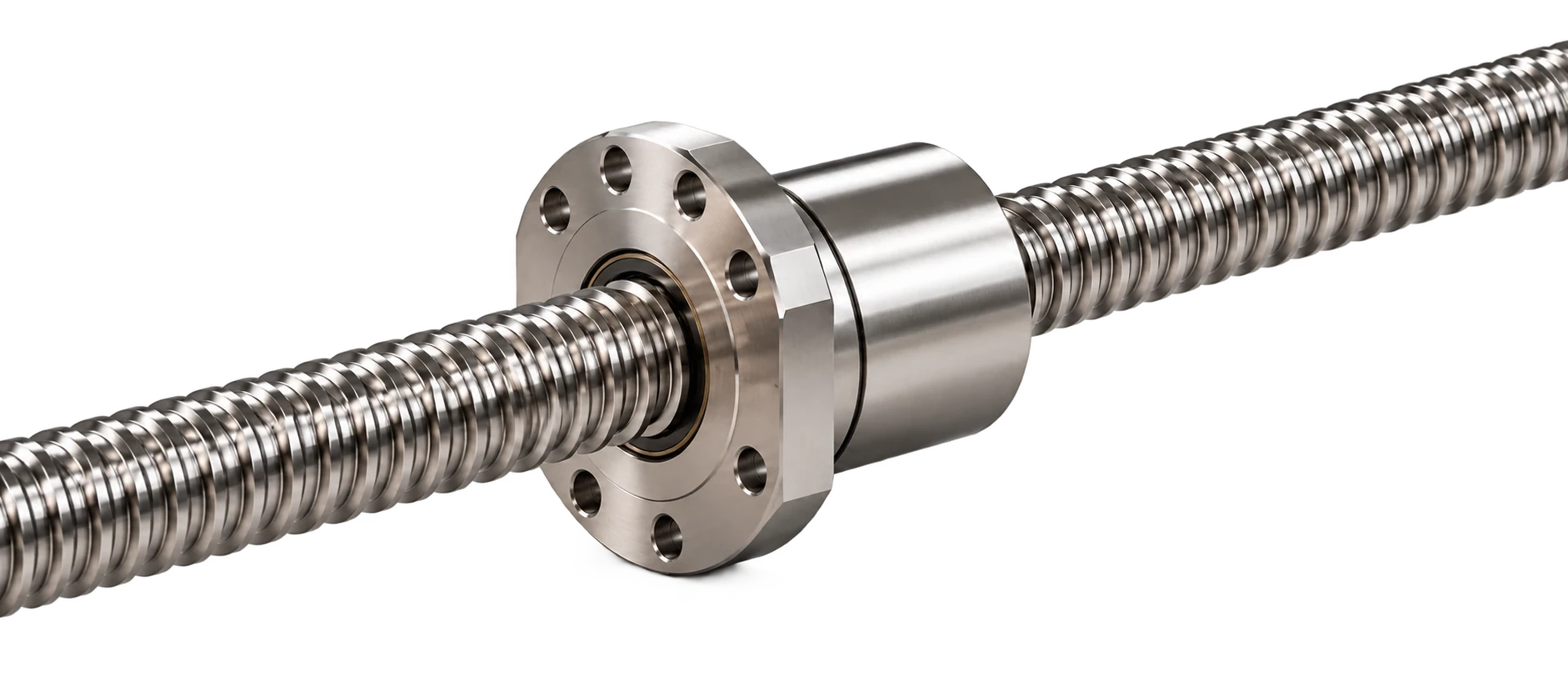

Rolled Ball Screws

Rolled Ball Screws · Rolled Ball Screws. Choose the full model marking and mounting format for your machine.18 models / configurationsView specs

Rolled Ball Screws · Rolled Ball Screws. Choose the full model marking and mounting format for your machine.

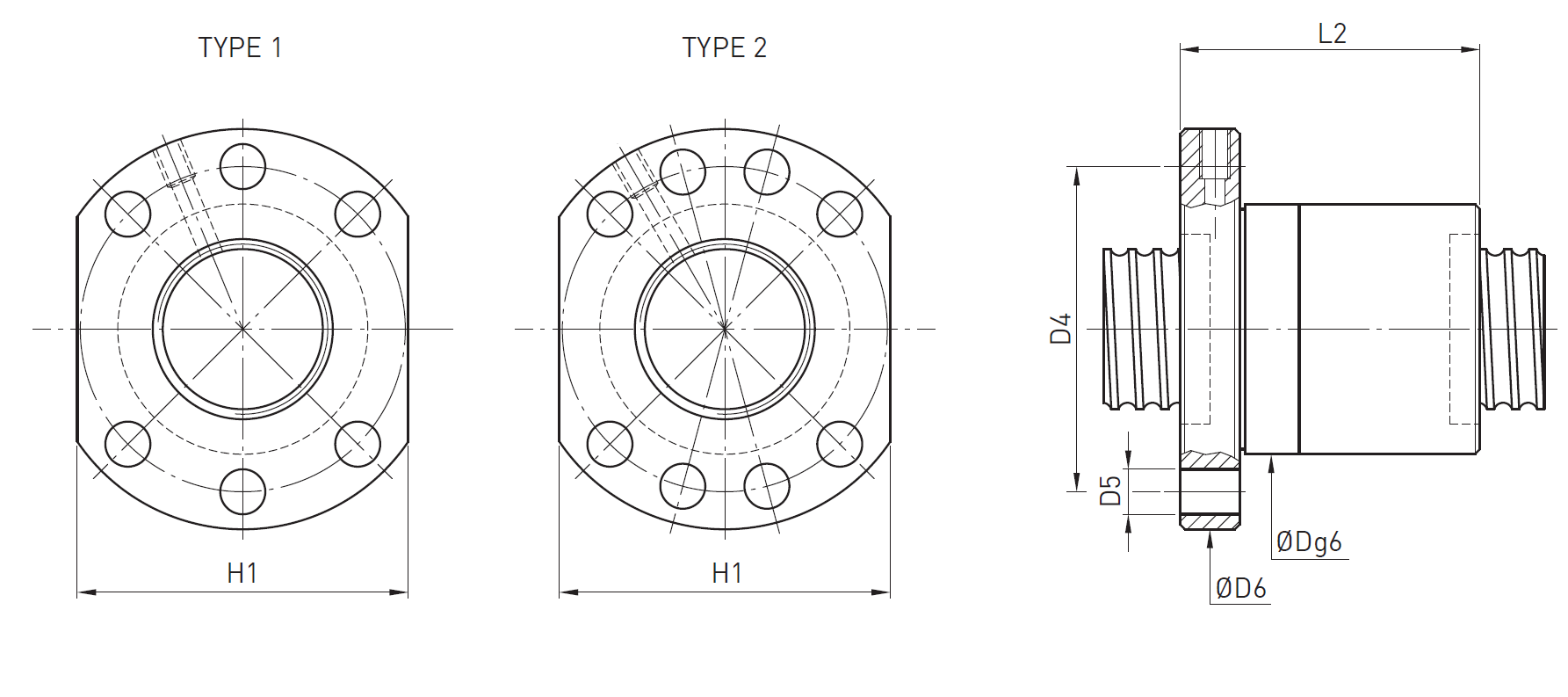

JLS Rolled Ball Screws dimension sketch — Dimension sketch · open to enlarge

Rolled Ball Screws
Model No.	Screw Dia	Lead	D-g6	D4	D5	D6	H1	L2	Drawing
R16-5T3-JSI	16	5	28	38	5.5	48	40	43	Drawing PDF ↗
R16-5T4-JSI	16	5	28	38	5.5	48	40	51	Drawing PDF ↗
R20-5T3-JSI	20	5	36	47	6.6	58	44	44	Drawing PDF ↗
R20-5T4-JSI	20	5	36	47	6.6	58	44	52	Drawing PDF ↗
R25-5T3-JSI	25	5	40	51	6.6	62	48	44	Drawing PDF ↗
R25-5T4-JSI	25	5	40	51	6.6	62	48	51	Drawing PDF ↗
R25-10T3-JSI	25	10	40	51	6.6	62	48	71	Drawing PDF ↗
R25-10T4-JSI	25	10	40	51	6.6	62	48	85	Drawing PDF ↗
R32-5T3-JSI	32	5	50	65	9	80	62	46	Drawing PDF ↗
R32-5T4-JSI	32	5	50	65	9	80	62	53	Drawing PDF ↗
R32-10T3-JSI	32	10	50	65	9	80	62	72	Drawing PDF ↗
R32-10T4-JSI	32	10	50	65	9	80	62	90	Drawing PDF ↗
R40-5T4-JSI	40	5	50	78	9	93	70	55	Drawing PDF ↗
R40-10T3-JSI	40	10	50	78	9	93	70	74	Drawing PDF ↗
R40-10T4-JSI	40	10	50	78	9	93	70	93	Drawing PDF ↗
R50-10T4-JSI	50	10	75	93	11	110	85	78	Drawing PDF ↗
R63-10T4-JSI	63	10	90	108	11	125	95	98	Drawing PDF ↗
R80-10T4-JSI	80	10	105	125	13.5	145	110	98	Drawing PDF ↗

Ball Screw Support Units4 families

JLS

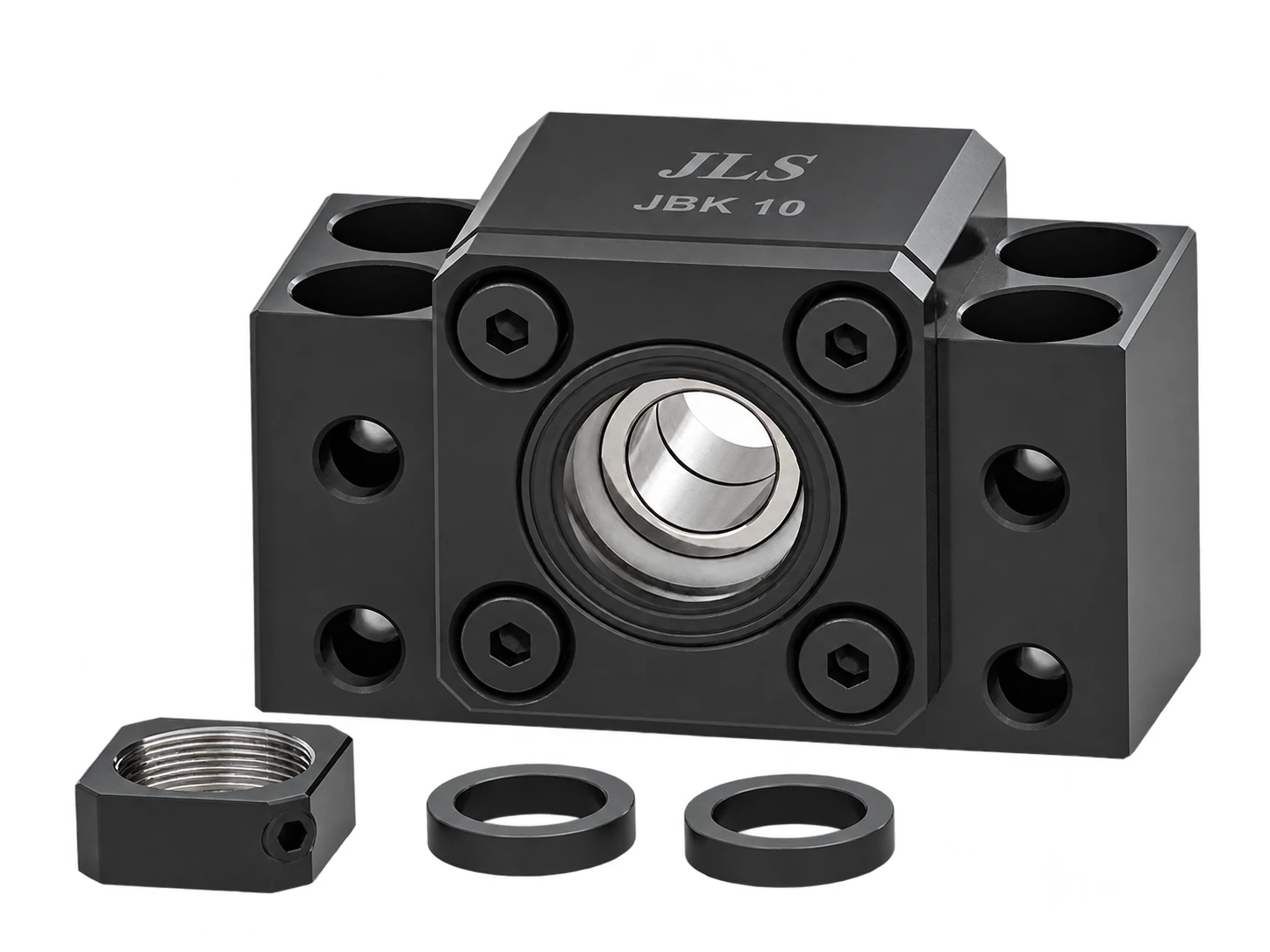

JBK

Ball Screw Support Units · JBK. Choose the full model marking and mounting format for your machine.11 models / configurationsView specs

Ball Screw Support Units · JBK. Choose the full model marking and mounting format for your machine.

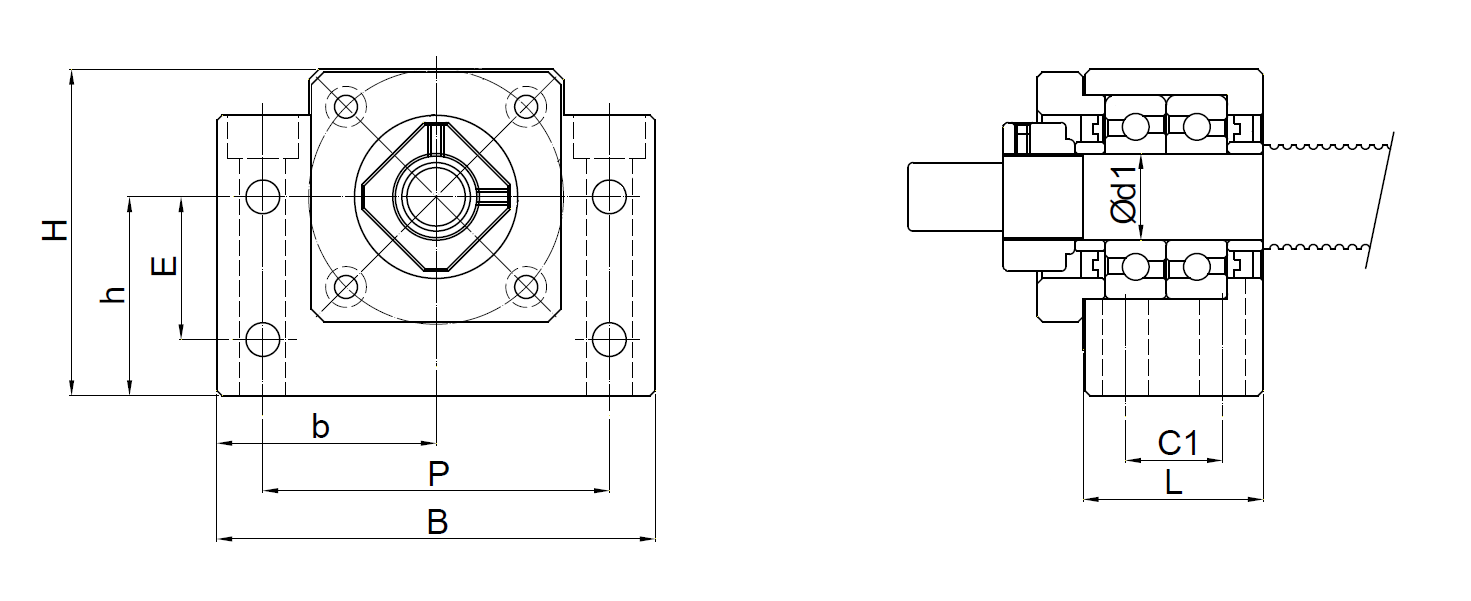

JLS JBK dimension sketch — Dimension sketch · open to enlarge

JBK
Model No.	d 1	L	B	H	b ± 0.02	h ± 0.02	P	E	C 1	Drawing
JBK6	6	23	52	32	26	17	38	-	-	—
JBK8	8	23	52	32	26	17	38	-	-	—
JBK10	10	25	60	39	30	22	46	15	13	Drawing PDF ↗
JBK12	12	25	60	43	30	22	46	18	13	Drawing PDF ↗
JBK15	15	27	70	48	35	28	54	18	15	Drawing PDF ↗
JBK17	17	35	86	64	43	39	68	28	19	Drawing PDF ↗
JBK20	20	35	88	60	44	34	70	22	19	Drawing PDF ↗
JBK25	25	42	106	80	53	48	85	33	22	Drawing PDF ↗
JBK30	30	45	128	89	64	51	102	33	23	Drawing PDF ↗
JBK35	35	50	140	96	70	52	114	35	26	Drawing PDF ↗
JBK40	40	61	160	110	80	60	130	37	33	Drawing PDF ↗

JLS

JBF

Ball Screw Support Units · JBF. Choose the full model marking and mounting format for your machine.10 models / configurationsView specs

Ball Screw Support Units · JBF. Choose the full model marking and mounting format for your machine.

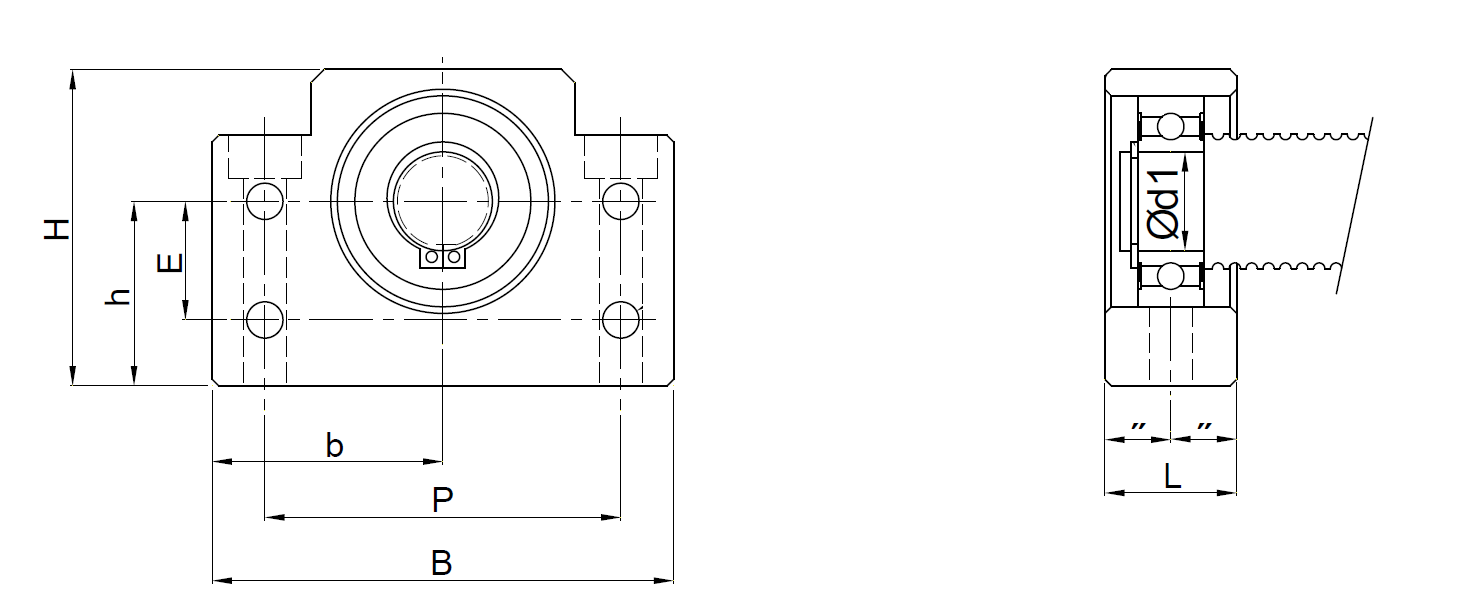

JLS JBF dimension sketch — Dimension sketch · open to enlarge

JBF
Model No.	d 1	L	B	H	b ± 0.02	h ± 0.02	P	E	Drawing
JBF6/8	6	14	52	32	26	17	38	-	—
JBF10	10	20	60	39	30	22	46	15	Drawing PDF ↗
JBF12	12	20	60	43	30	25	46	18	Drawing PDF ↗
JBF15	15	20	70	48	35	28	54	18	Drawing PDF ↗
JBF17	17	23	86	64	43	39	68	28	Drawing PDF ↗
JBF20	20	26	88	60	44	34	70	22	Drawing PDF ↗
JBF25	25	30	106	80	53	48	85	33	Drawing PDF ↗
JBF30	30	32	128	89	64	51	102	33	Drawing PDF ↗
JBF35	35	32	140	96	70	52	114	35	Drawing PDF ↗
JBF40	40	37	160	110	80	60	130	37	Drawing PDF ↗

JLS

JFK

Ball Screw Support Units · JFK. Choose the full model marking and mounting format for your machine.11 models / configurationsView specs

Ball Screw Support Units · JFK. Choose the full model marking and mounting format for your machine.

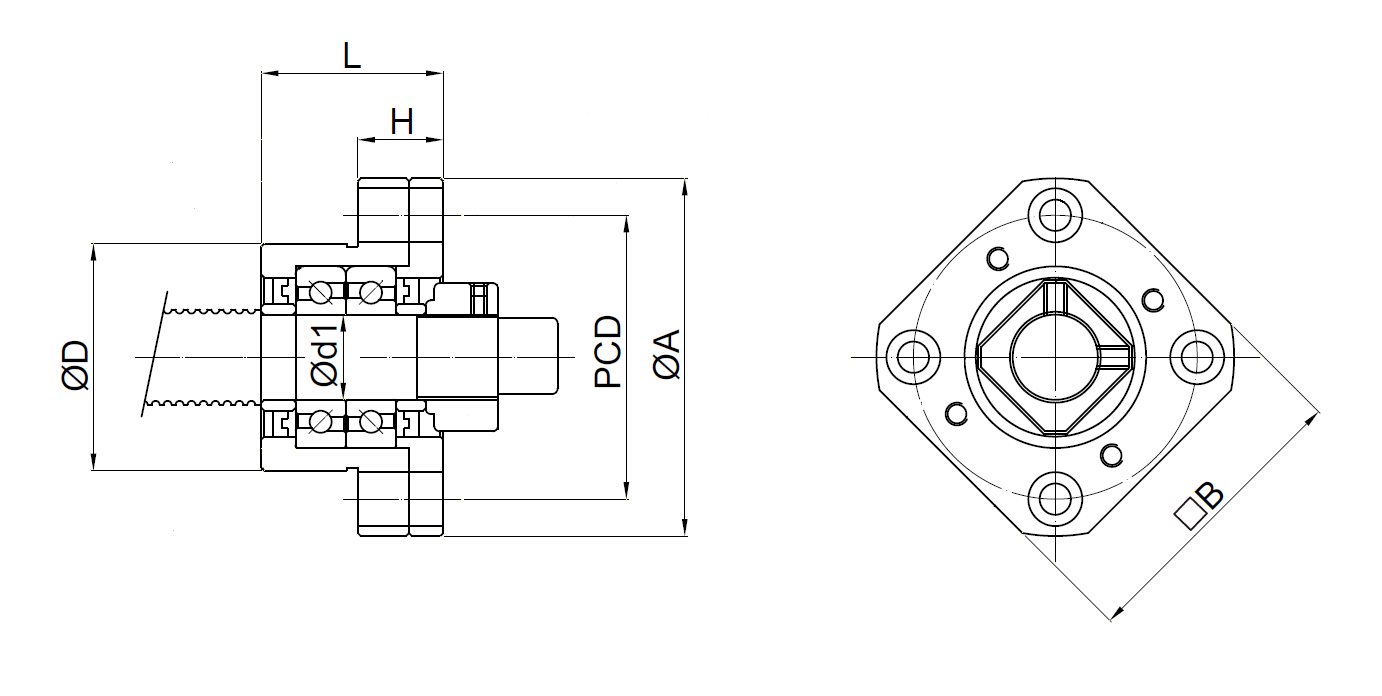

JLS JFK dimension sketch — Dimension sketch · open to enlarge

JFK
Model No.	d 1	L	H	D-g6	A	PCD	B	Drawing
JFK4	4	15	6	18	32	24	25	—
JFK5	5	16.5	6	20	34	26	26	—
JFK6	6	20	7	22	36	28	28	—
JFK8	8	23	9	28	43	35	35	—
JFK10	10	27	10	34	52	42	42	Drawing PDF ↗
JFK12	12	27	10	36	54	44	44	Drawing PDF ↗
JFK15	15	32	15	40	63	50	52	Drawing PDF ↗
JFK17	17	45	22	50	77	62	61	Drawing PDF ↗
JFK20	20	52	22	57	85	70	68	Drawing PDF ↗
JFK25	25	57	27	63	98	80	79	Drawing PDF ↗
JFK30	30	62	30	75	117	95	93	Drawing PDF ↗

JLS

JFF

Ball Screw Support Units · JFF. Choose the full model marking and mounting format for your machine.8 models / configurationsView specs

Ball Screw Support Units · JFF. Choose the full model marking and mounting format for your machine.

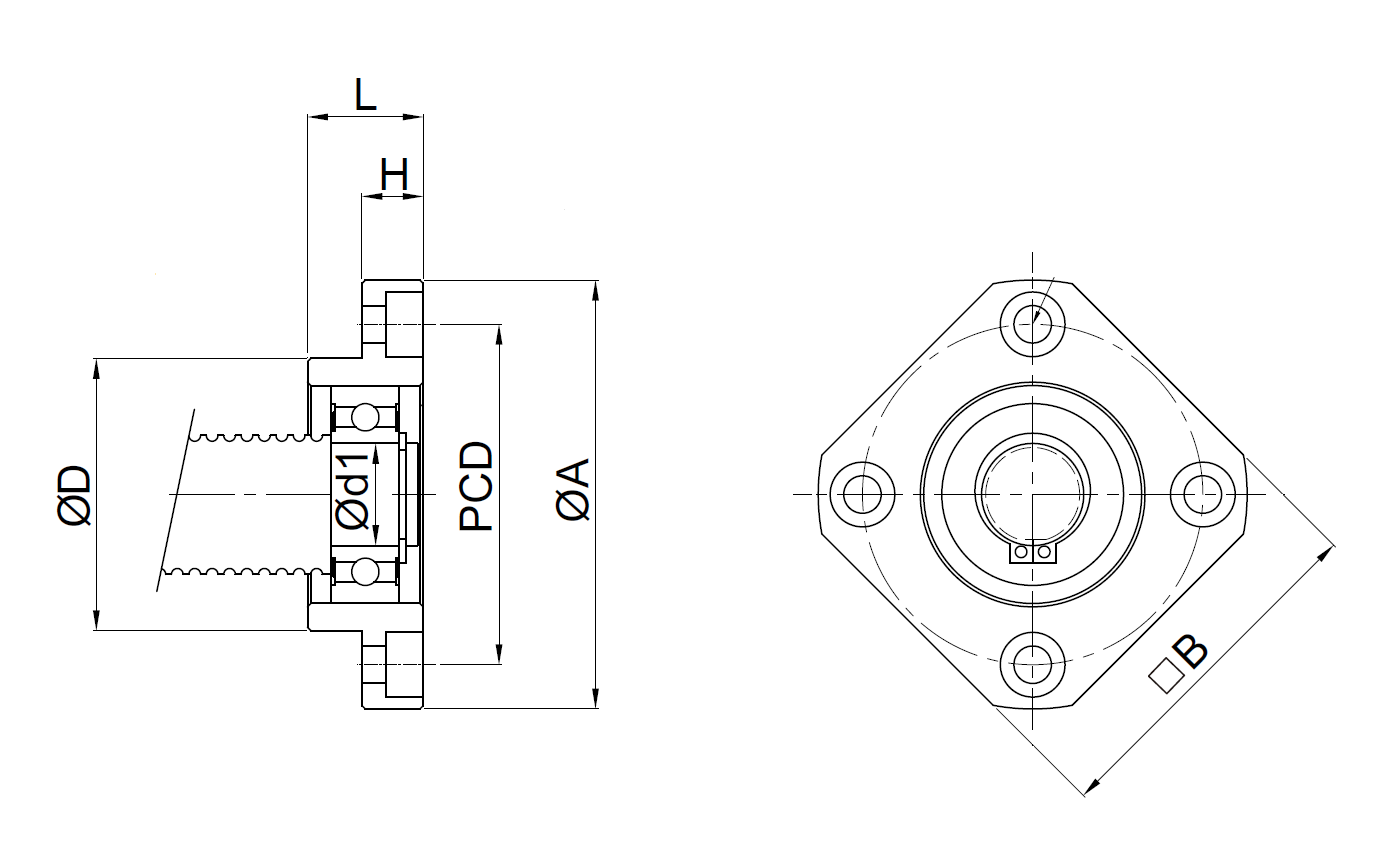

JLS JFF dimension sketch — Dimension sketch · open to enlarge

JFF
Model No.	d 1	L	H	D-g6	A	PCD	B	Drawing
JFF6/8	6	10	6	22	36	28	28	—
JFF10	8	12	7	28	43	35	35	Drawing PDF ↗
JFF12	10	15	7	34	52	42	42	Drawing PDF ↗
JFF15	15	17	9	40	63	50	52	Drawing PDF ↗
JFF17	17	20	11	50	77	62	61	Drawing PDF ↗
JFF20	20	20	11	57	85	70	68	Drawing PDF ↗
JFF25	25	24	14	63	98	80	79	Drawing PDF ↗
JFF30	30	27	18	75	117	95	93	Drawing PDF ↗

Linear Guideways4 families

JLS

JLW

Linear Guideways · JLW. Choose the full model marking and mounting format for your machine.15 models / configurationsView specs

Linear Guideways · JLW. Choose the full model marking and mounting format for your machine.

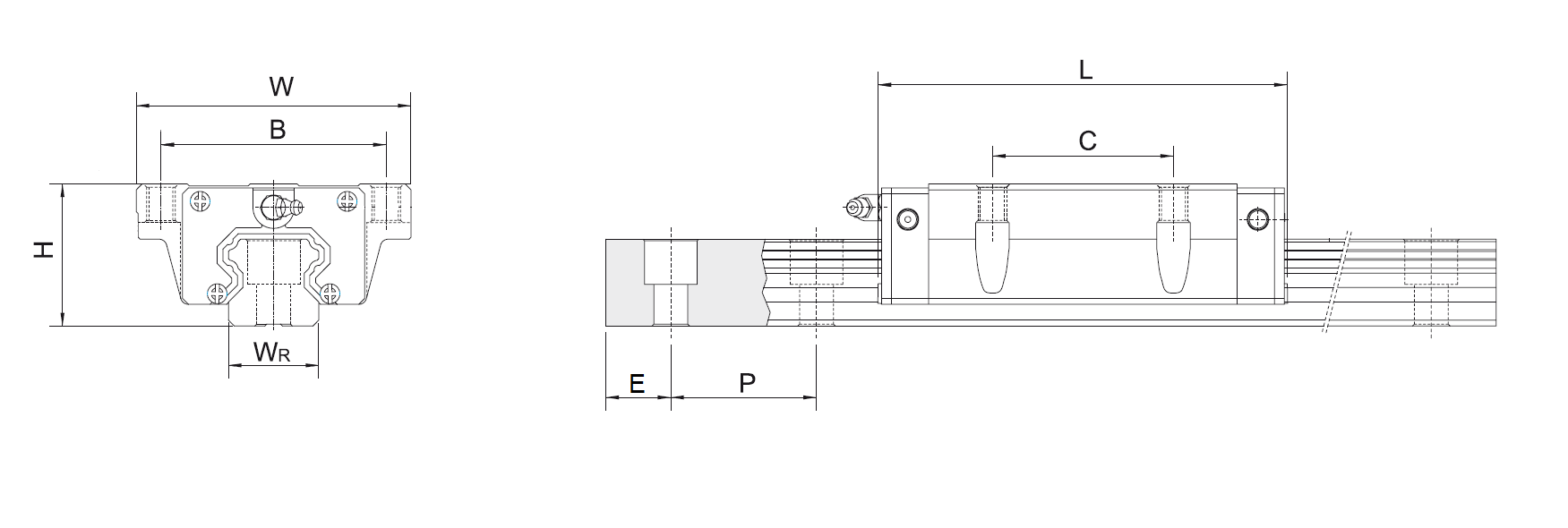

JLS JLW dimension sketch — Dimension sketch · open to enlarge

JLW
Model No.	H	W	L	B	C	W R	P	(Recommended) E	Drawing
JLW15CC	24	47	61.4	38	30	15	60	20	Drawing PDF ↗
JLW20CC	30	63	77.5	53	40	20	60	20	Drawing PDF ↗
JLW20HC	30	63	92.2	53	40	20	60	20	Drawing PDF ↗
JLW25CC	36	70	84	57	45	23	60	20	Drawing PDF ↗
JLW25HC	36	70	104.8	57	45	23	60	20	Drawing PDF ↗
JLW30CC	42	90	97.4	72	52	28	80	20	Drawing PDF ↗
JLW30HC	42	90	120	72	52	28	80	20	Drawing PDF ↗
JLW35CC	48	100	112	82	62	34	80	20	Drawing PDF ↗
JLW35HC	48	100	138	82	62	34	80	20	Drawing PDF ↗
JLW45CC	60	120	139	100	80	45	105	22.5	Drawing PDF ↗
JLW45HC	60	120	171	100	80	45	105	22.5	Drawing PDF ↗
JLW55CC	70	140	167	116	95	53	120	30	Drawing PDF ↗
JLW55HC	70	140	205	116	95	53	120	30	Drawing PDF ↗
JLW65CC	90	170	200	142	110	63	150	35	Drawing PDF ↗
JLW65HC	90	170	260	142	110	63	150	35	Drawing PDF ↗

JLS

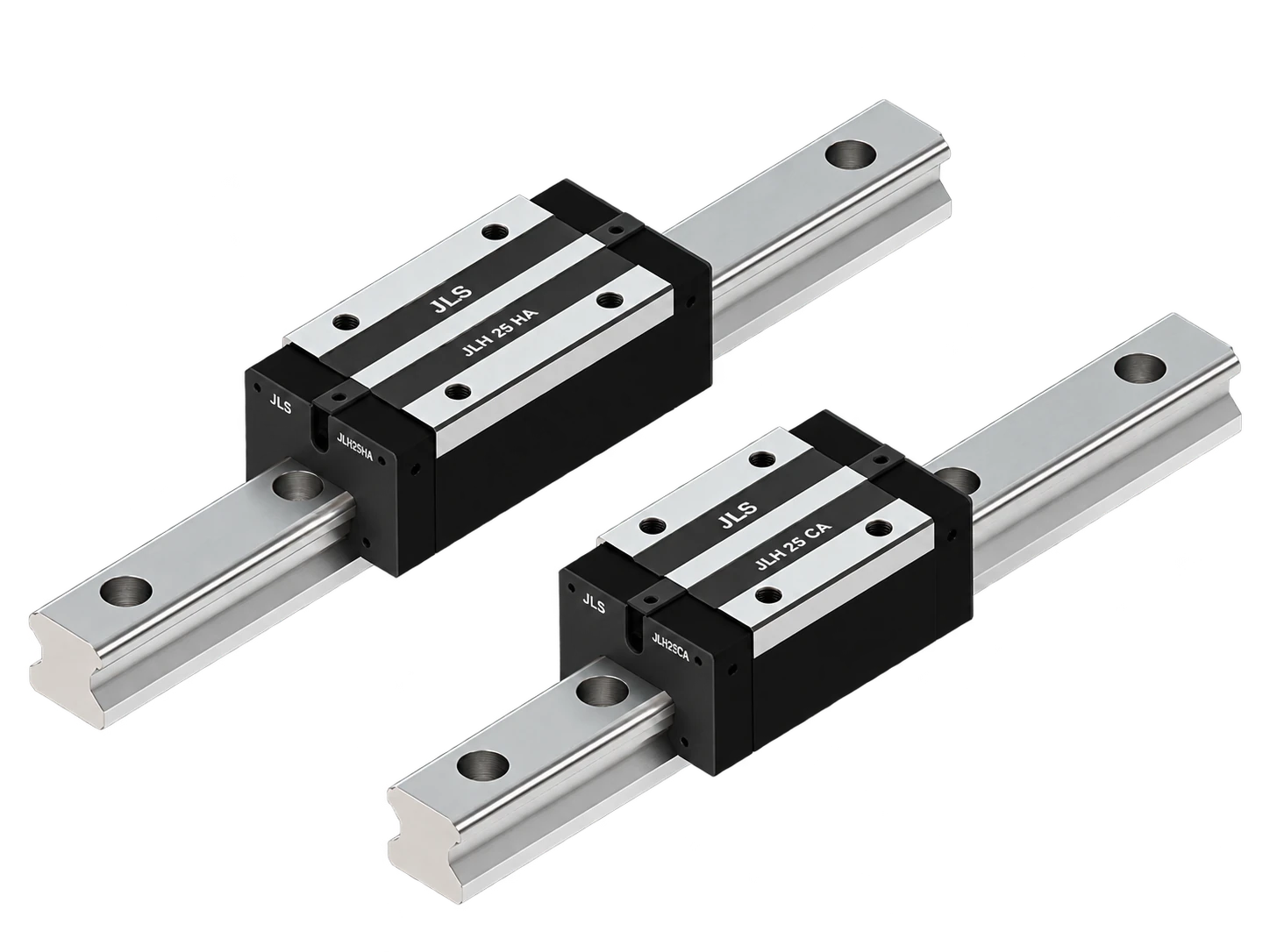

JLH

Linear Guideways · JLH. Choose the full model marking and mounting format for your machine.15 models / configurationsView specs

Linear Guideways · JLH. Choose the full model marking and mounting format for your machine.

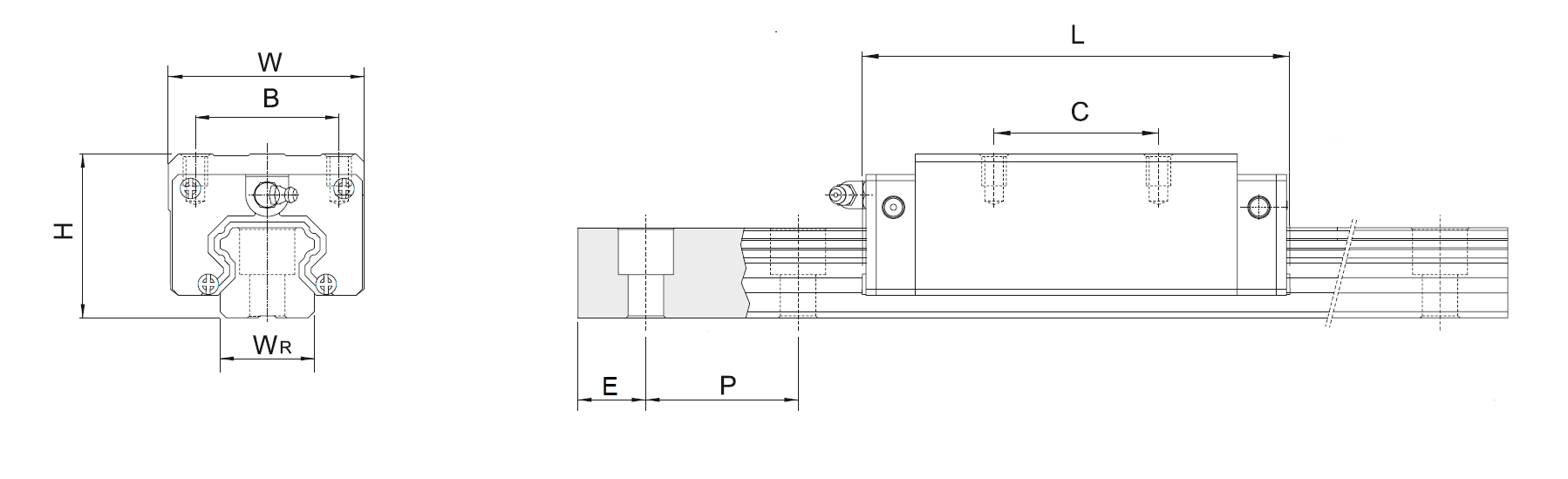

JLS JLH dimension sketch — Dimension sketch · open to enlarge

JLH
Model No.	H	W	L	B	C	W R	P	(Recommended) E	Drawing
JLH15CA	28	34	61.4	26	26	15	60	20	Drawing PDF ↗
JLH20CA	30	44	77.5	32	36	20	60	20	Drawing PDF ↗
JLH20HA	30	44	92.2	32	50	20	60	20	Drawing PDF ↗
JLH25CA	40	48	84	35	35	23	60	20	Drawing PDF ↗
JLH25HA	40	48	104.8	35	50	23	60	20	Drawing PDF ↗
JLH30CA	45	60	97.4	40	40	28	80	20	Drawing PDF ↗
JLH30HA	45	60	120	40	60	28	80	20	Drawing PDF ↗
JLH35CA	55	70	112	50	50	34	80	20	Drawing PDF ↗
JLH35HA	55	70	138	50	72	34	80	20	Drawing PDF ↗
JLH45CA	70	86	139	60	60	45	105	22.5	Drawing PDF ↗
JLH45HA	70	86	171	60	80	45	105	22.5	Drawing PDF ↗
JLH55CA	80	100	167	75	75	53	120	30	Drawing PDF ↗
JLH55HA	80	100	205	75	95	53	120	30	Drawing PDF ↗
JLH65CA	90	126	200	76	70	63	150	35	Drawing PDF ↗
JLH65HA	90	126	260	76	120	63	150	35	Drawing PDF ↗

JLS

JEW

Linear Guideways · JEW. Choose the full model marking and mounting format for your machine.8 models / configurationsView specs

Linear Guideways · JEW. Choose the full model marking and mounting format for your machine.

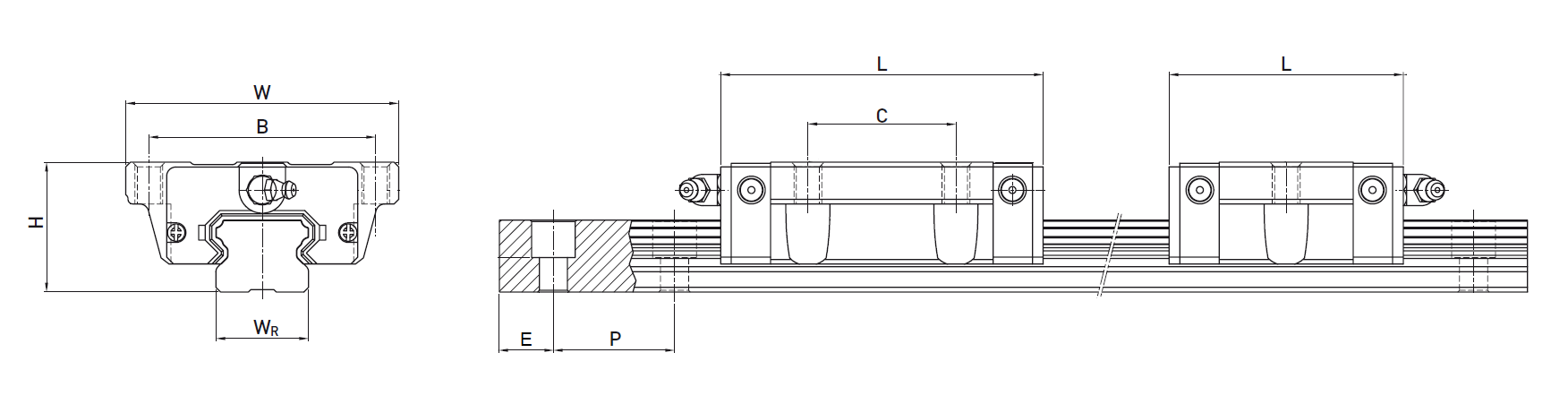

JLS JEW dimension sketch — Dimension sketch · open to enlarge

JEW
Model No.	H	W	L	B	C	W R	P	(Recommended) E	Drawing
JEW15SC	24	52	40.1	41	-	15	60	20	Drawing PDF ↗
JEW15CC	24	52	56.8	41	26	15	60	20	Drawing PDF ↗
JEW20SC	28	59	50	49	-	20	60	20	Drawing PDF ↗
JEW20CC	28	59	69.1	49	32	20	60	20	Drawing PDF ↗
JEW25SC	33	73	59.1	60	-	23	60	20	Drawing PDF ↗
JEW25CC	33	73	82.6	60	35	23	60	20	Drawing PDF ↗
JEW30SC	42	90	69.5	72	-	28	80	20	Drawing PDF ↗
JEW30CC	42	90	98.1	72	40	28	80	20	Drawing PDF ↗

JLS

JEH

Linear Guideways · JEH. Choose the full model marking and mounting format for your machine.8 models / configurationsView specs

Linear Guideways · JEH. Choose the full model marking and mounting format for your machine.

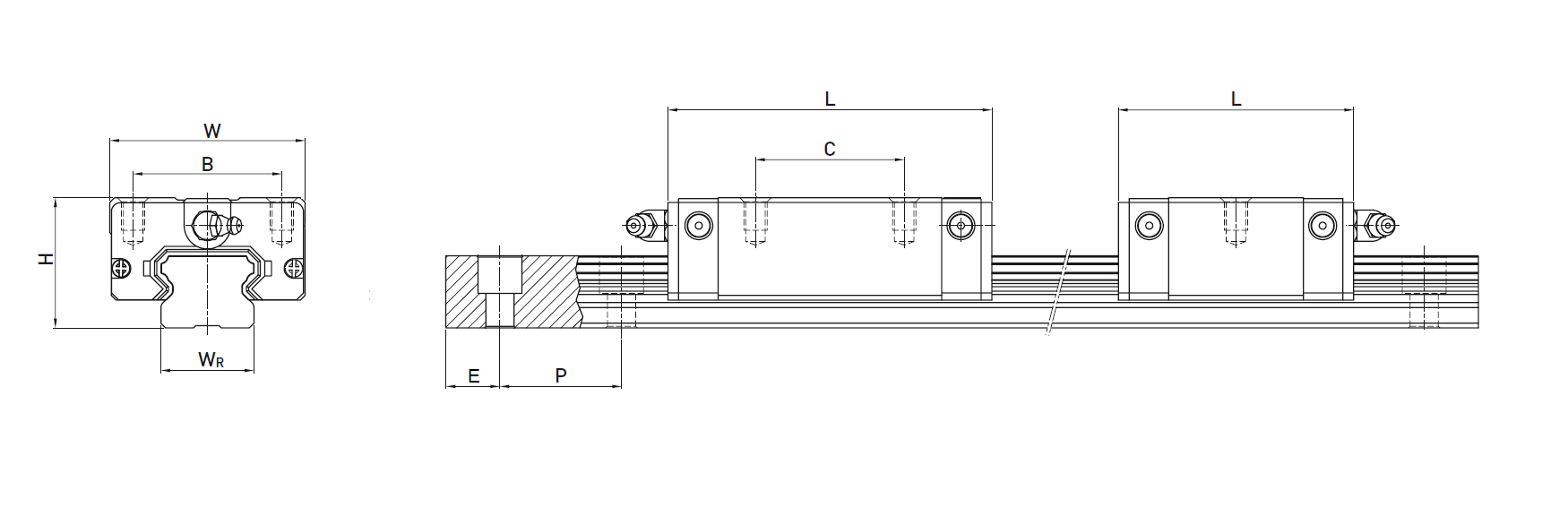

JLS JEH dimension sketch — Dimension sketch · open to enlarge

JEH
Model No.	H	W	L	B	C	W R	P	(Recommended) E	Drawing
JEH15SA	24	34	40.1	26	-	15	60	20	Drawing PDF ↗
JEH15CA	24	34	56.8	26	26	15	60	20	Drawing PDF ↗
JEH20SA	28	42	50	32	-	20	60	20	Drawing PDF ↗
JEH20CA	28	42	69.1	32	32	20	60	20	Drawing PDF ↗
JEH25SA	33	48	59.1	35	-	23	60	20	Drawing PDF ↗
JEH25CA	33	48	82.6	35	35	23	60	20	Drawing PDF ↗
JEH30SA	42	60	69.5	40	-	28	80	20	Drawing PDF ↗
JEH30CA	42	60	98.1	40	40	28	80	20	Drawing PDF ↗

Linear Bearings33 families

JLS

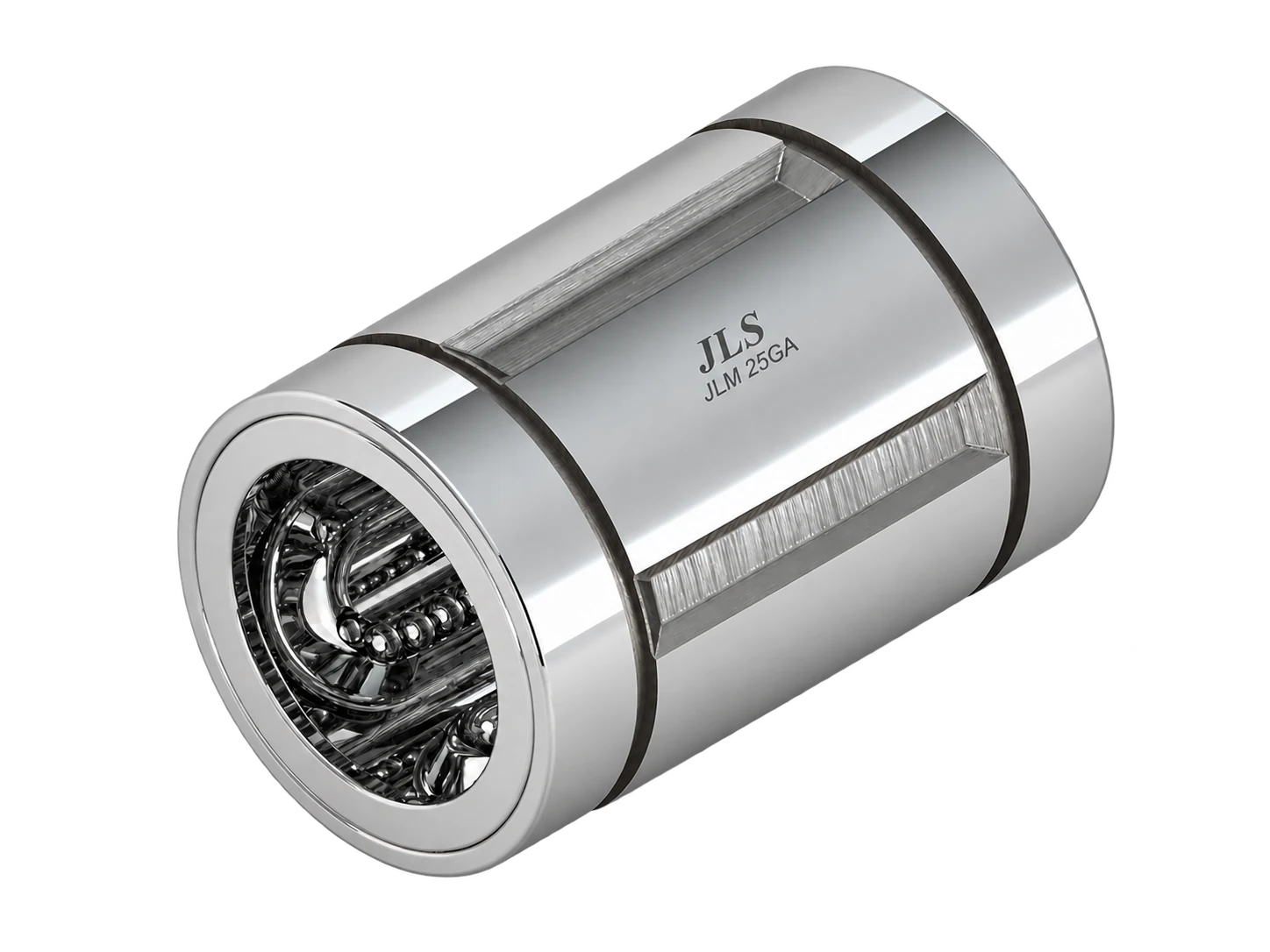

JLM-GA

Linear Bearings · JLM-GA. Choose the full model marking and mounting format for your machine.20 models / configurationsView specs

Linear Bearings · JLM-GA. Choose the full model marking and mounting format for your machine.

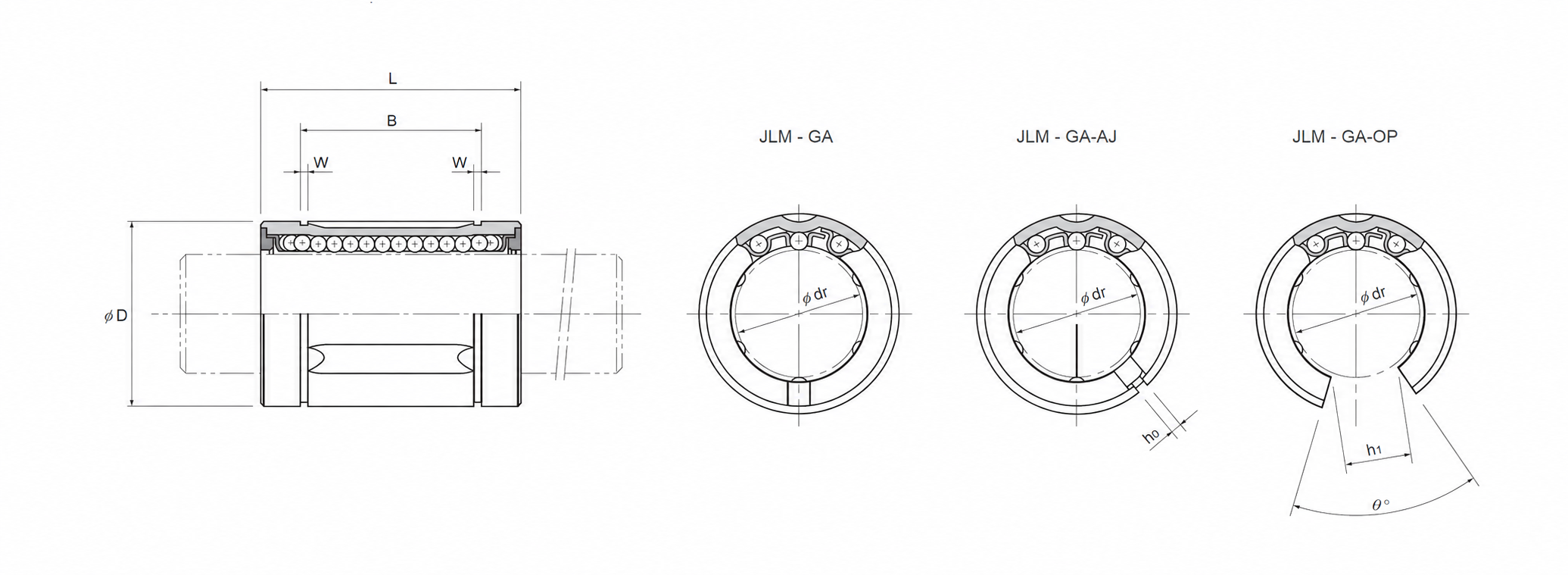

JLS JLM-GA dimension sketch — Dimension sketch · open to enlarge

JLM-GA
Model No.	Model No.	Model No.	Shaft Dia. dr	D	L	B	W	h 0	h 1	⊘ ○	Drawing
JLM6GA	-	-	6	12	19	13.5	1.1	-	-	-	—
JLM8SGA	-	-	8	15	17	11.5	1.1	-	-	-	—
JLM8GA	-	-	8	15	24	17.5	1.1	-	-	-	—
JLM10GA	-	-	10	19	29	22	1.3	-	-	-	—
JLM12GA	JLM12GAAJ	JLM12GAOP	12	21	30	23	1.3	1.5	8	80 ○	—
JLM13GA	JLM13GAAJ	JLM13GAOP	13	23	32	23	1.3	1.5	9	80 ○	—
JLM16GA	JLM16GAAJ	JLM16GAOP	16	28	37	26.5	1.6	1.5	11	80 ○	—
JLM20GA	JLM20GAAJ	JLM20GAOP	20	32	42	30.5	1.6	1.5	11	80 ○	—
JLM25GA	JLM25GAAJ	JLM25GAOP	25	40	59	41	1.85	2	12	50 ○	—
JLM30GA	JLM30GAAJ	JLM30GAOP	30	45	64	44.5	1.85	2.5	15	50 ○	—
JLM35GA	JLM35GAAJ	JLM35GAOP	35	52	70	49.5	2.1	2.5	17	50 ○	—
JLM40GA	JLM40GAAJ	JLM40GAOP	40	60	80	60.5	2.1	3	20	50 ○	—
JLM50GA	JLM50GAAJ	JLM50GAOP	50	80	100	74	2.6	3	25	50 ○	—
JLM60GA	JLM60GAAJ	JLM60GAOP	60	90	110	85	3.15	3	30	50 ○	—
JLM80GA	JLM80GAAJ	JLM80GAOP	80	120	140	105.5	4.15	3	40	50 ○	—
JLM100GA	JLM100GAAJ	JLM100GAOP	100	150	175	105.5	4.15	3	50	50 ○	—
JLM120GA	JLM120GAAJ	JLM120GAOP	120	180	200	158.6	4.15	3	85	80 ○	—
JLM150GA	JLM150GAAJ	JLM150GAOP	150	210	240	170.6	5.15	3	105	80 ○	—
JLM180GA	JLM180GAAJ	JLM180GAOP	180	260	280	210.6	5.15	3	125	80 ○	—
JLM200GA	JLM200GAAJ	JLM200GAOP	200	280	320	250.6	5.15	3	140	80 ○	—

JLS

JLME-GA

Linear Bearings · JLME-GA. Choose the full model marking and mounting format for your machine.14 models / configurationsView specs

Linear Bearings · JLME-GA. Choose the full model marking and mounting format for your machine.

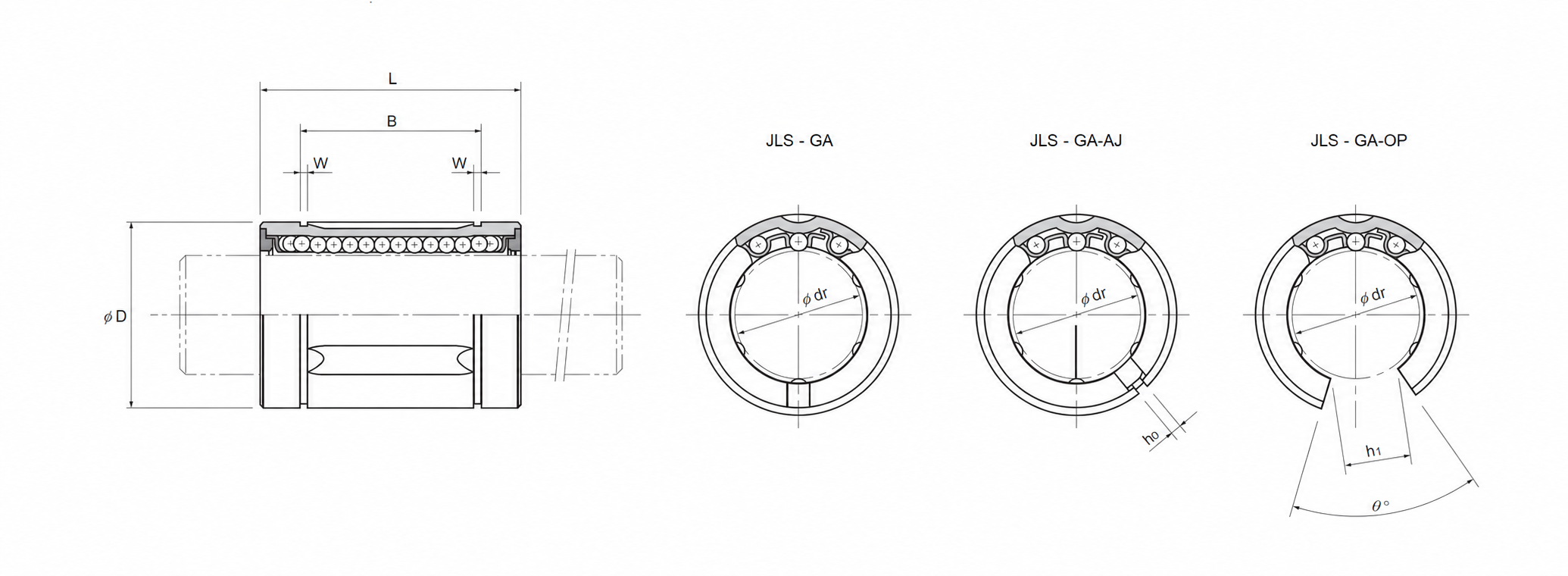

JLS JLME-GA dimension sketch — Dimension sketch · open to enlarge

JLME-GA
Model No.	Model No.	Model No.	Shaft Dia. dr	D	L	B	W	h 0	h 1	⊘ ○	Drawing
JLME5GA	-	-	5	12	22	14.5	1.1	-	-	-	—
JLME5GA	-	-	5	12	22	14.5	1.1	-	-	-	—
JLME8GA	-	-	8	16	25	16.5	1.1	-	-	-	—
JLME10GA	-	-	10	19	29	22	1.3	-	-	-	—
JLME12GA	JLME12GAAJ	JLME12GAOP	12	22	32	22.9	1.3	1.5	7.5	78 ○	—
JLME16GA	JLME16GAAJ	JLME16GAOP	16	26	36	24.9	1.3	1.5	10	78 ○	—
JLME16GA	JLME16GAAJ	JLME16GAOP	16	26	36	24.9	1.3	1.5	10	78 ○	—
JLME20GA	JLME20GAAJ	JLME20GAOP	20	32	45	31.5	1.6	2	10	60 ○	—
JLME25GA	JLME25GAAJ	JLME25GAOP	25	40	58	44.1	1.85	2	12.5	60 ○	—
JLME30GA	JLME30GAAJ	JLME30GAOP	30	47	68	52.1	1.85	2	12.5	50 ○	—
JLME40GA	JLME40GAAJ	JLME40GAOP	40	62	80	60.6	2.15	3	16.8	50 ○	—
JLME50GA	JLME50GAAJ	JLME50GAOP	50	75	100	77.6	2.68	3	21	50 ○	—
JLME60GA	JLME60GAAJ	JLME60GAOP	60	90	125	101.7	3.15	3	27.2	54 ○	—
JLME80GA	JLME80GAAJ	JLME80GAOP	80	120	165	133.7	4.15	3	36.3	54 ○	—

JLS

JLB

Linear Bearings · JLB. Choose the full model marking and mounting format for your machine.20 models / configurationsView specs

Linear Bearings · JLB. Choose the full model marking and mounting format for your machine.

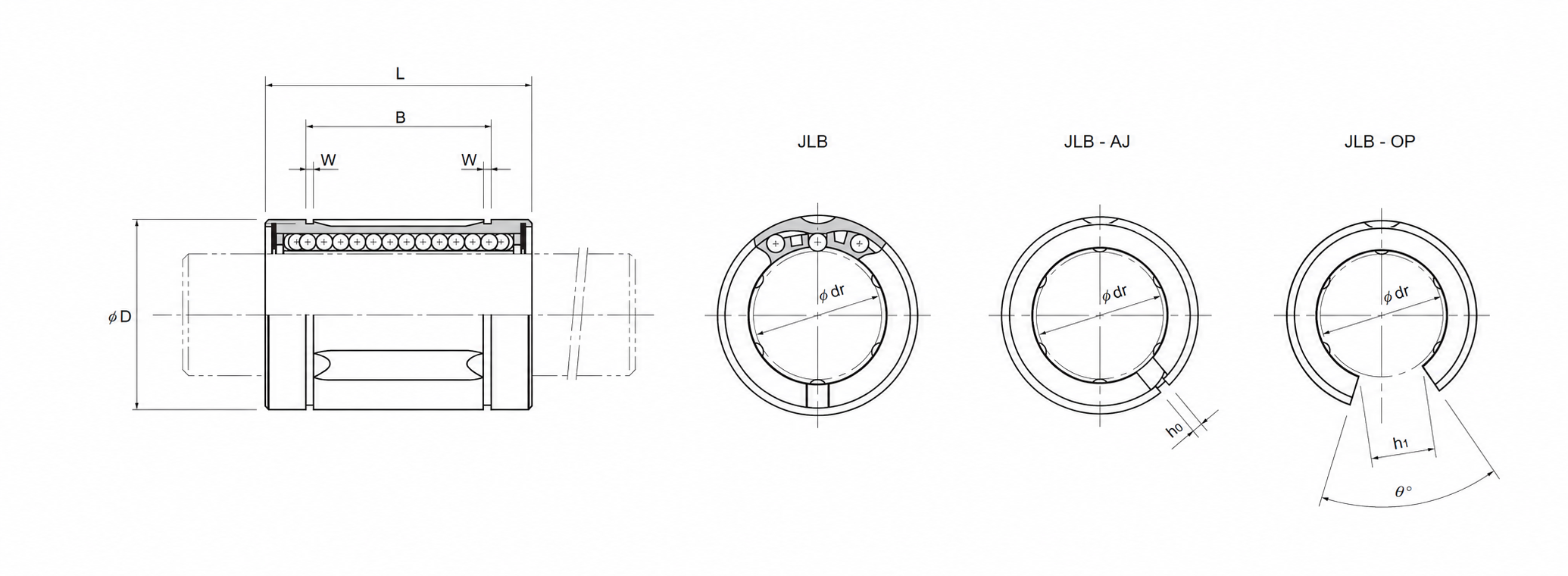

JLS JLB dimension sketch — Dimension sketch · open to enlarge

JLB
Model No.	Model No.	Model No.	Shaft Dia. dr	D	L	B	W	h 0	h 1	⊘ ○	Drawing
JLB6	-	-	6	12	19	13.5	1.1	-	-	-	—
JLB8S	-	-	8	15	17	11.5	1.1	-	-	-	—
JLB8	-	-	8	15	24	17.5	1.1	-	-	-	—
JLB10	-	-	10	19	29	22	1.3	-	-	-	—
JLB12	JLB12AJ	JLB12OP	12	21	30	23	1.3	1.5	8	80 ○	—
JLB13	JLB13AJ	JLB13OP	13	23	32	23	1.3	1.5	9	80 ○	—
JLB16	JLB16AJ	JLB16OP	16	28	37	26.5	1.6	1.5	11	80 ○	—
JLB20	JLB20AJ	JLB20OP	20	32	42	30.5	1.6	1.5	11	60 ○	—
JLB25	JLB25AJ	JLB25OP	25	40	59	41	1.85	2	12	50 ○	—
JLB30	JLB30AJ	JLB30OP	30	45	64	44.5	1.85	2.5	12	50 ○	—
JLB35	JLB35AJ	JLB35OP	35	52	70	49.5	2.1	2.5	17	50 ○	—
JLB40	JLB40AJ	JLB40OP	40	60	80	60.5	2.1	3	20	50 ○	—
JLB50	JLB50AJ	JLB50OP	50	80	100	74	2.6	3	25	50 ○	—
JLB60	JLB60AJ	JLB60OP	60	90	110	85	3.15	3	30	50 ○	—
JLB80	JLB80AJ	JLB80OP	80	120	140	105.5	4.15	3	40	50 ○	—
JLB100	JLB100J	JLB100P	100	150	175	125.5	4.15	3	50	50 ○	—
JLB120	JLB120AJ	JLB120OP	120	180	200	158.5	4.15	3	85	80 ○	—
JLB150	JLB150AJ	JLB150OP	150	210	240	170.6	5.15	3	105	80 ○	—
JLB180GA	JLB150AJ	JLB150OP	180	260	280	210.6	5.15	3	125	80 ○	—
JLB200GA	JLB200AJ	JLB200OP	200	280	320	250.6	5.15	3	140	80 ○	—

JLS

JLBE

Linear Bearings · JLBE. Choose the full model marking and mounting format for your machine.12 models / configurationsView specs

Linear Bearings · JLBE. Choose the full model marking and mounting format for your machine.

JLS JLBE dimension sketch — Dimension sketch · open to enlarge

JLBE
Model No.	Model No.	Model No.	Shaft Dia. ID	D	L	B	W	h 0	h 1	⊘ ○	Drawing
JLBE5	-	-	5	12	22	14.5	1.1	-	-	-	—
JLBE8	-	-	8	16	25	16.5	1.1	-	-	-	—
JLBE10	-	-	10	19	29	22	1.3	-	-	-	—
JLBE12	JLBE12AJ	JLBE12OP	12	22	32	22.9	1.3	1.5	7.5	78 ○	—
JLBE16	JLBE16AJ	JLBE16OP	16	26	36	24.9	1.3	1.5	10	78 ○	—
JLBE20	JLBE20AJ	JLBE20OP	20	32	45	31.5	1.6	2	10	60 ○	—
JLBE25	JLBE25AJ	JLBE25OP	25	40	58	52.1	1.85	2	12.5	60 ○	—
JLBE30	JLBE30AJ	JLBE30OP	30	47	68	52.1	1.85	2	12.5	50 ○	—
JLBE40	JLBE40AJ	JLBE40OP	40	62	80	60.6	2.15	3	16.8	50 ○	—
JLBE50	JLBE50AJ	JLBE50OP	50	75	100	77.6	2.65	3	21	50 ○	—
JLBE60	JLBE60AJ	JLBE60OP	60	90	125	101.7	3.15	3	27.2	54 ○	—
JLBE80	JLBE80AJ	JLBE80OP	80	120	165	133.7	4.15	3	36.3	54 ○	—

JLS

JLM

Linear Bearings · JLM. Choose the full model marking and mounting format for your machine.24 models / configurationsView specs

Linear Bearings · JLM. Choose the full model marking and mounting format for your machine.

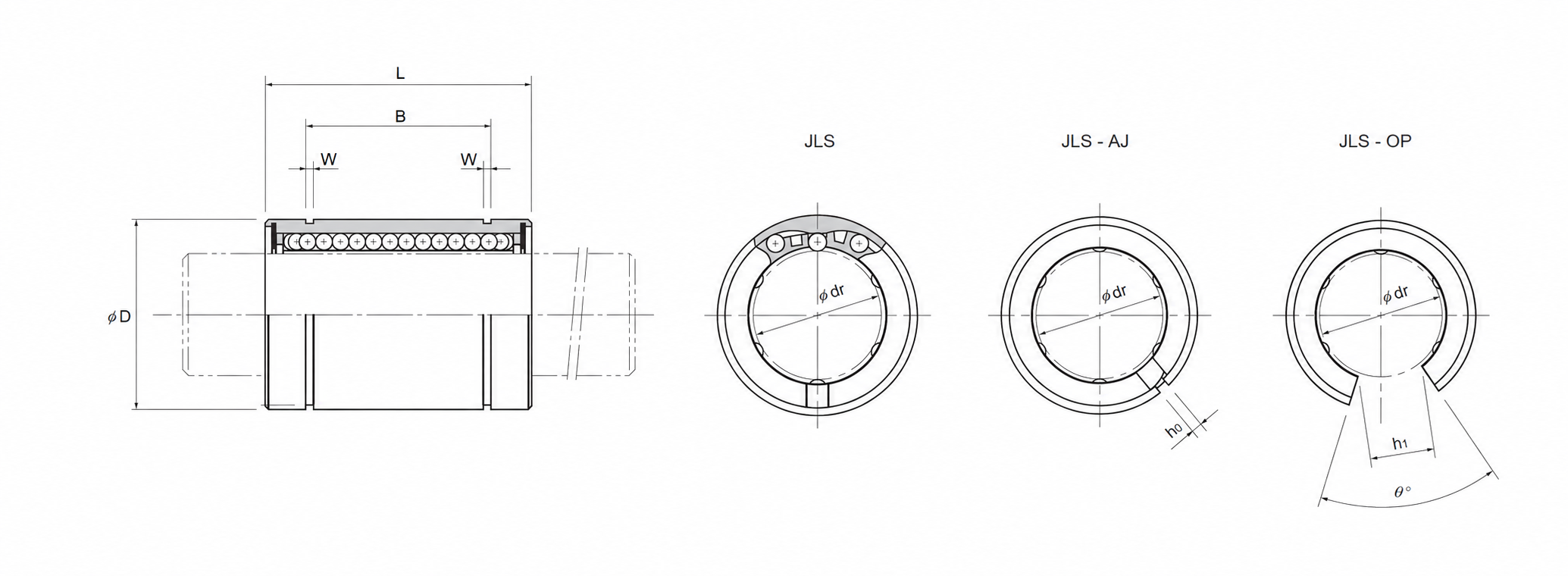

JLS JLM dimension sketch — Dimension sketch · open to enlarge

JLM
Model No.	Model No.	Model No.	Shaft Dia. dr	D	L	B	W	h 0	h 1	⊘ ○	Drawing
JLM3	-	-	3	7	10	-	-	-	-	-	—
JLM4	-	-	4	8	12	-	-	-	-	-	—
JLM5	-	-	5	10	15	10.2	1.1	-	-	-	—
JLM6	-	-	6	12	19	13.5	1.1	-	-	-	—
JLM8S	-	-	8	15	17	11.5	1.1	-	-	-	—
JLM8	-	-	8	15	24	17.5	1.1	-	-	-	—
JLM10	JLM10AJ	JLM10OP	10	19	29	22	1.3	1	6.8	80 ○	—
JLM12	JLM12AJ	JLM12OP	12	21	30	23	1.3	1.5	8	80 ○	—
JLM13	JLM13AJ	JLM13OP	13	23	32	23	1.3	1.5	9	80 ○	—
JLM16	JLM16AJ	JLM16OP	16	28	37	26.5	1.6	1.5	11	80 ○	—
JLM20	JLM20AJ	JLM20OP	20	32	42	30.5	1.6	1.5	11	60 ○	—
JLM25	JLM25AJ	JLM25OP	25	40	59	41	1.85	2	12	50 ○	—
JLM30	JLM30AJ	JLM30OP	30	45	64	44.5	1.85	2.5	15	50 ○	—
JLM35	JLM35AJ	JLM35OP	35	52	70	49.5	2.1	2.5	17	50 ○	—
JLM40	JLM40AJ	JLM40OP	40	60	80	60.5	2.1	3	20	50 ○	—
JLM50	JLM50AJ	JLM50OP	50	80	100	74	2.6	3	25	50 ○	—
JLM60	JLM60AJ	JLM60OP	60	90	110	85	3.15	3	30	50 ○	—
JLM70	JLM70AJ	JLM70OP	70	100	130	100	3.15	3	30	50 ○	—
JLM80	JLM80AJ	JLM80OP	80	120	140	105.5	4.15	3	40	50 ○	—
JLM100	JLM100AJ	JLM100OP	100	150	175	125.5	4.15	3	50	50 ○	—
JLM120	JLM120AJ	JLM120OP	120	180	200	158.6	4.15	3	85	80 ○	—
JLM150	JLM150AJ	JLM150OP	150	210	240	170.6	5.15	3	105	80 ○	—
JLM180GA	JLM180GAAJ	JLM180GAOP	180	260	280	210.6	5.15	3	125	80 ○	—
JLM200GA	JLM200GAAJ	JLM200GAOP	200	280	320	250.6	5.15	3	140	80 ○	—

JLS

JLME

Linear Bearings · JLME. Choose the full model marking and mounting format for your machine.12 models / configurationsView specs

Linear Bearings · JLME. Choose the full model marking and mounting format for your machine.

JLS JLME dimension sketch — Dimension sketch · open to enlarge

JLME
Model No.	Model No.	Model No.	Shaft Dia. dr	D	L	B	W	h 0	h 1	⊘ ○	Drawing
JLME5	-	-	5	12	22	14.5	1.1	-	-	-	—
JLME8	-	-	8	16	25	16.5	1.1	-	-	-	—
JLME10	JLME10AJ	JLME10OP	10	19	29	22	1.3	1	6.8	80 ○	—
JLME12	JLME12AJ	JLME12OP	12	22	32	22.9	1.3	1.5	7.5	78 ○	—
JLME16	JLME16AJ	JLME16OP	16	26	36	24.9	1.3	1.5	7.5	78 ○	—
JLME20	JLME20AJ	JLME20OP	20	32	45	31.5	1.6	2	10	60 ○	—
JLME25	JLME25AJ	JLME25OP	25	40	58	44.1	1.85	2	12.5	60 ○	—
JLME30	JLME30AJ	JLME30OP	30	47	68	52.1	1.85	2	12.5	50 ○	—
JLME40	JLME40AJ	JLME40OP	40	62	80	60.6	2.15	3	16.8	50 ○	—
JLME50	JLME50AJ	JLME50OP	50	75	100	77.6	2.68	3	21	50 ○	—
JLME60	JLME60AJ	JLME60OP	60	90	125	101.7	3.15	3	27.2	54 ○	—
JLME80	JLME80AJ	JLME80OP	80	120	165	133.7	4.15	3	36.3	54 ○	—

JLS

JLMB

Linear Bearings · JLMB. Choose the full model marking and mounting format for your machine.9 models / configurationsView specs

Linear Bearings · JLMB. Choose the full model marking and mounting format for your machine.

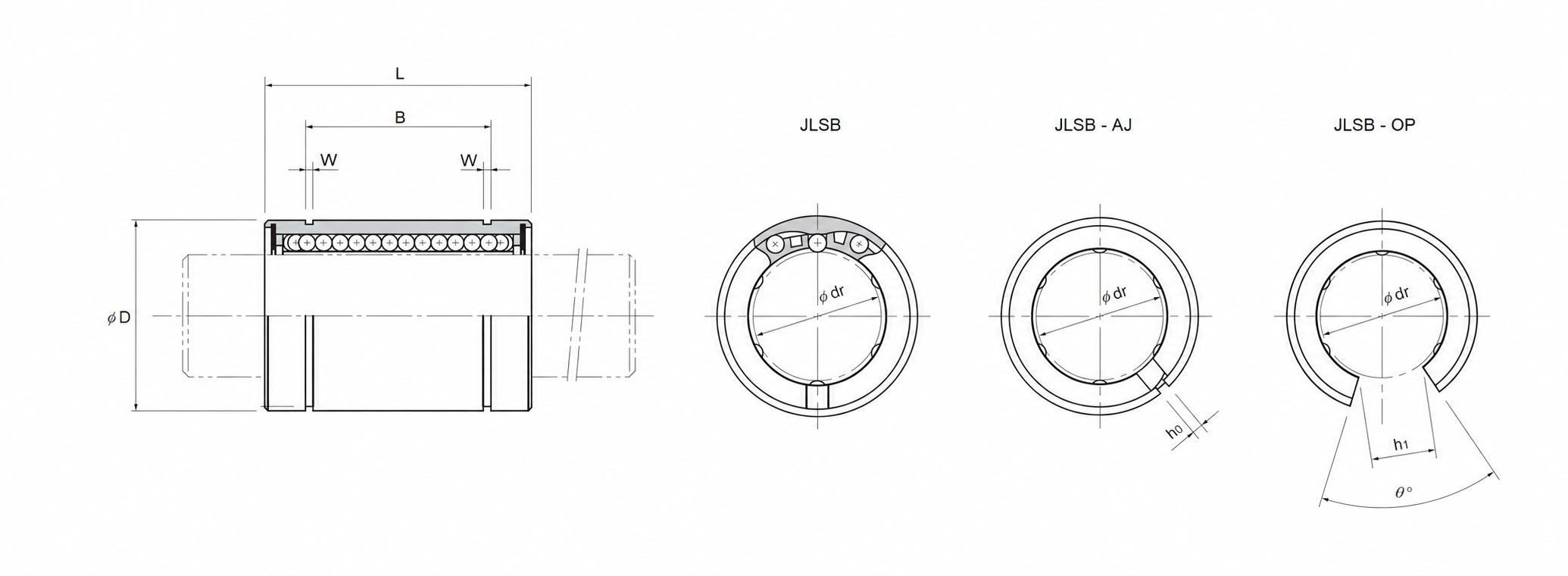

JLS JLMB dimension sketch — Dimension sketch · open to enlarge

JLMB
Model No.	Model No.	Model No.	Shaft Dia. dr	D	L	B	W	h 0	h 1	⊘ ○	Drawing
JLMB4	-	-	6.35	12.7	19.05	12.98	0.992	1	-	-	—
JLMB6	-	-	9.525	15.875	22.225	16.15	0.992	1	-	-	—
JLMB8	JLMB8AJ	JLMB8OP	12.7	22.225	31.757	24.46	1.168	1.5	7.9375	80 ○	—
JLMB10	JLMB10AJ	JLMB10OP	15.875	28.575	38.1	28.04	1.422	1.5	9.525	80 ○	—
JLMB12	JLMB12AJ	JLMB12OP	19.05	31.757	41.275	29.61	1.422	1.5	11.1125	60 ○	—
JLMB16	JLMB16AJ	JLMB16OP	25.4	39.688	57.15	44.57	1.727	1.5	14.2875	50 ○	—
JLM20	JLMB20AJ	JLMB20OP	31.75	50.8	66.675	50.92	1.727	2.5	15.875	50 ○	—
JLM24	JLMB24AJ	JLMB24OP	38.1	60.325	76.2	61.26	2.184	3	19.05	50 ○	—
JLM32	JLMB32AJ	JLMB32OP	50.8	76.2	101.6	81.07	2.616	3	25.40	50 ○	—

JLS

JLM-L

Linear Bearings · JLM-L. Choose the full model marking and mounting format for your machine.15 models / configurationsView specs

Linear Bearings · JLM-L. Choose the full model marking and mounting format for your machine.

JLS JLM-L dimension sketch — Dimension sketch · open to enlarge

JLM-L
Model No.	Shaft Dia. dr	D	L	B	W	Drawing
JLM6LUU	6	12	35	27	1.1	—
JLMLUU	8	15	45	35	1.1	—
JLM10LUU	10	19	55	44	1.3	—
JLM12LUU	12	21	57	46	1.3	—
JLM13LUU	13	23	61	46	1.3	—
JLM16LUU	16	28	70	53	1.6	—
JLM20LUU	20	32	80	61	1.6	—
JLM25LUU	25	40	112	82	1.85	—
JLM30LUU	30	45	123	89	1.85	—
JLM35LUU	35	52	135	99	2.1	—
JLM40LUU	40	60	151	121	2.1	—
JLM50LUU	50	80	192	148	2.6	—
JLM60LUU	60	90	209	170	3.15	—
JLM80LUU	80	120	265	211	4.15	—
JLM100LUU	100	150	330	270	4.15	—

JLS

JLME-L

Linear Bearings · JLME-L. Choose the full model marking and mounting format for your machine.9 models / configurationsView specs

Linear Bearings · JLME-L. Choose the full model marking and mounting format for your machine.

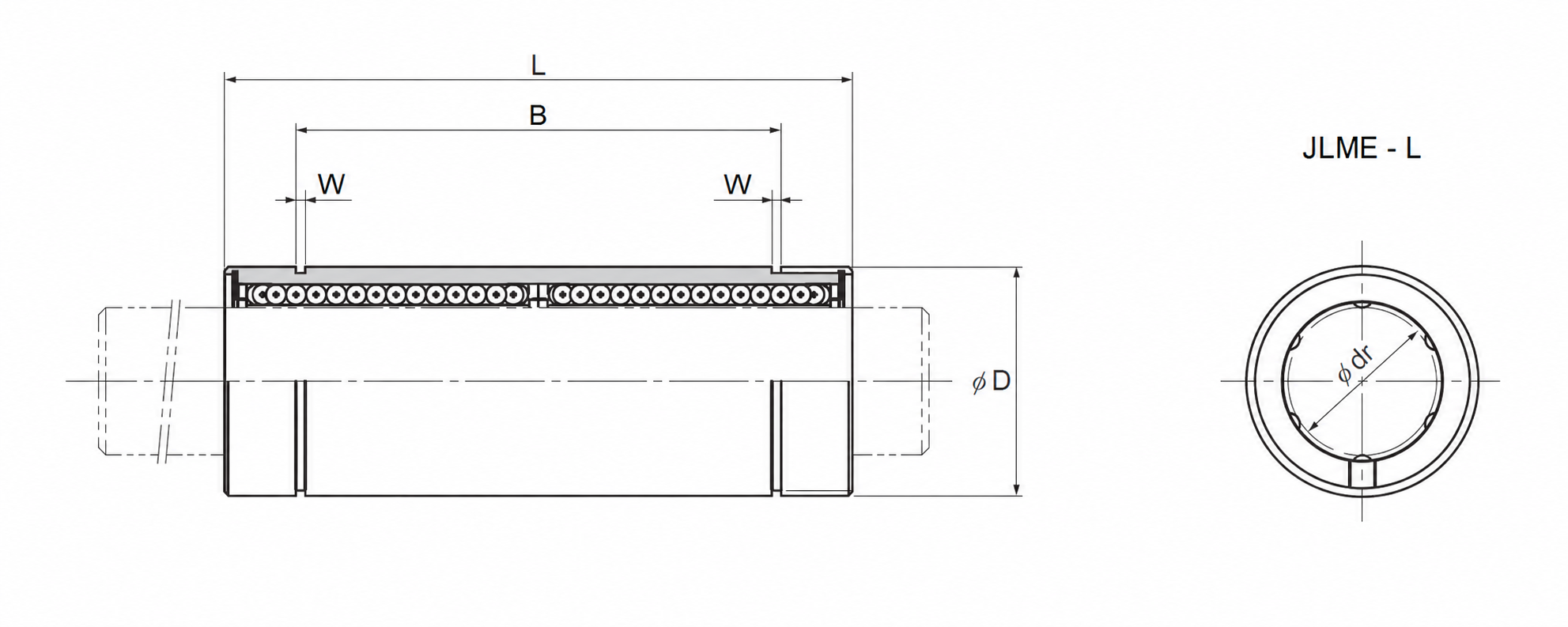

JLS JLME-L dimension sketch — Dimension sketch · open to enlarge

JLME-L
Model No.	Shaft Dia. dr	D	L	B	W	Drawing
JLME8LUU	8	16	46	33	1.1	—
JLME12LUU	12	22	61	45.8	1.3	—
JLME16LUU	16	26	68	49.8	1.3	—
JLME20LUU	20	32	80	61	1.6	—
JLME25LUU	25	40	112	82	1.85	—
JLME30LUU	30	47	123	104.2	1.85	—
JLME40LUU	40	62	151	121.2	2.15	—
JLME50LUU	50	75	192	155.2	2.65	—
JLME60LUU	60	90	209	170	3.15	—

JLS

JLMB-L

Linear Bearings · JLMB-L. Choose the full model marking and mounting format for your machine.9 models / configurationsView specs

Linear Bearings · JLMB-L. Choose the full model marking and mounting format for your machine.

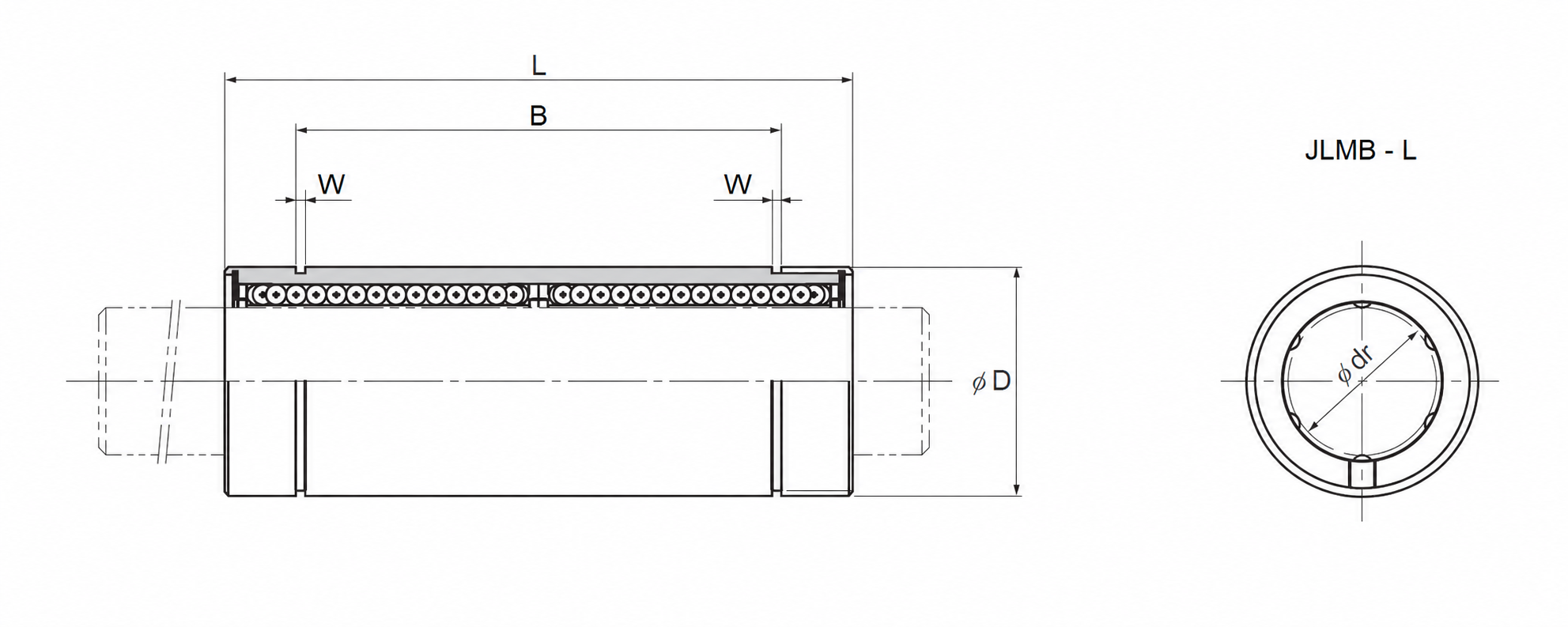

JLS JLMB-L dimension sketch — Dimension sketch · open to enlarge

JLMB-L
Model No.	Shaft Dia. dr	D	L	B	W	Drawing
JLMB4LUU	6.35	12.7	34.925	25.959	0.992	—
JLMB6LUU	9.525	15.875	40.481	32.298	0.922	—
JLMB8LUU	12.7	22.225	60.325	48.895	1.168	—
JLMB10LUU	15.875	28.575	71.438	56.08	1.422	—
JLMB12LUU	19.05	31.757	78.581	59.218	1.422	—
JLMB16LUU	25.4	39.688	108.744	89.139	1.727	—
JLMB20LUU	31.75	50.8	127	101.839	1.727	—
JLMB24LUU	38.1	60.325	144.463	122.519	2.184	—
JLMB32LUU	50.8	76.2	196.85	162.183	2.616	—

JLS

JKH

Linear Bearings · JKH. Choose the full model marking and mounting format for your machine.10 models / configurationsView specs

Linear Bearings · JKH. Choose the full model marking and mounting format for your machine.

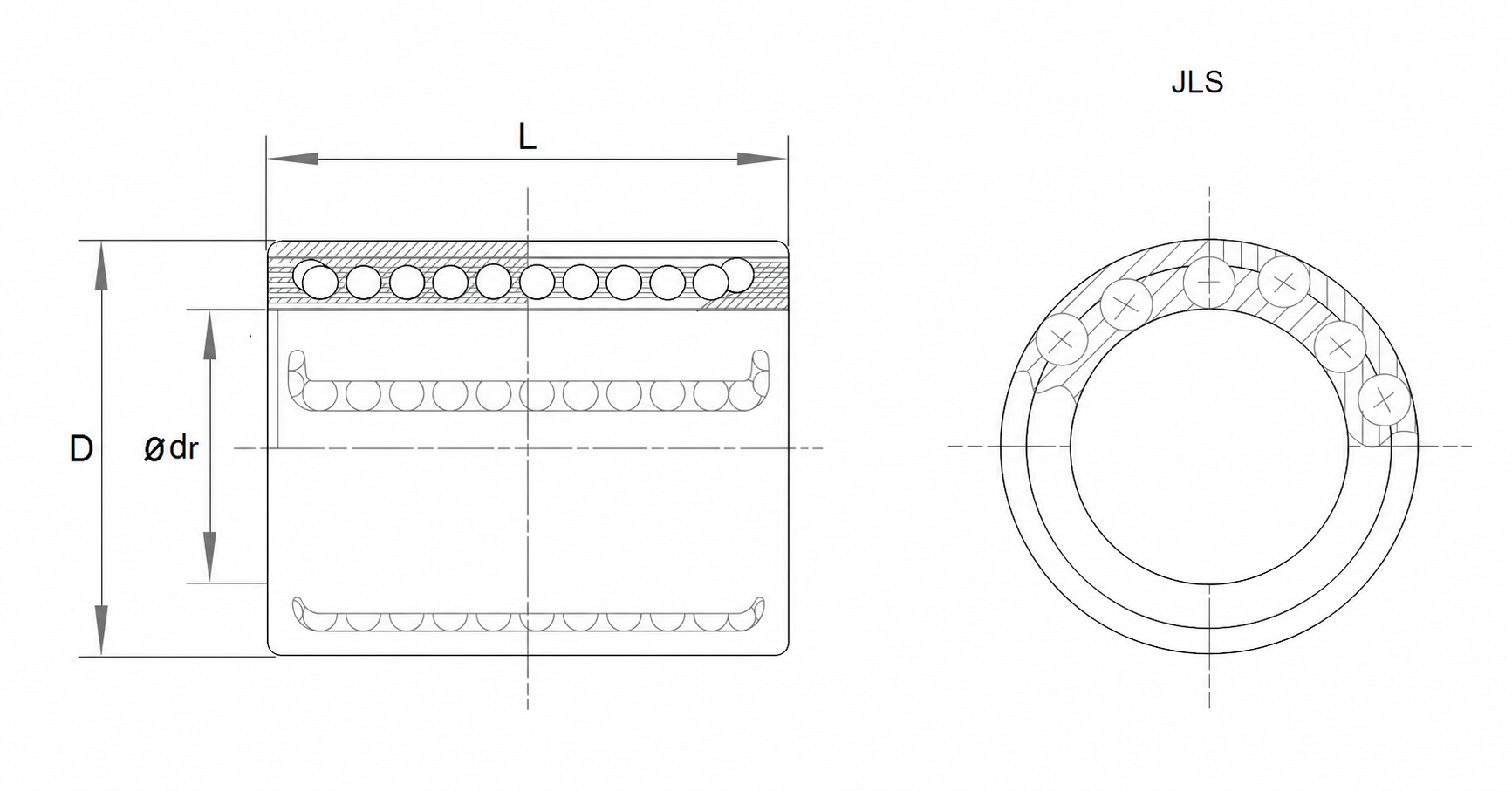

JLS JKH dimension sketch — Dimension sketch · open to enlarge

JKH
Model No.	Shaft Dia. dr	D	L	Drawing
JKH0824	8	15	24	—
JKH1026	10	17	26	—
JKH1228	12	19	28	—
JKH1428	14	21	28	—
JKH1630	16	24	30	—
JKH2030	20	28	30	—
JKH2540	25	35	40	—
JKH3050	30	40	50	—
JKH4060	40	52	60	—
JKH5070	50	62	70	—

JLS

JWKH

Linear Bearings · JWKH. Choose the full model marking and mounting format for your machine.5 models / configurationsView specs

Linear Bearings · JWKH. Choose the full model marking and mounting format for your machine.

JWKH
Model No.	Shaft Dia ID	D	L	Drawing
JKH1228	12	19	28	—
JKH1630	16	24	30	—
JKH2030	20	28	30	—
JKH2540	25	35	40	—
JKH3050	30	40	50	—

JLS

JSBE

Linear Bearings · JSBE. Choose the full model marking and mounting format for your machine.8 models / configurationsView specs

Linear Bearings · JSBE. Choose the full model marking and mounting format for your machine.

JSBE
Model No.	Model No.	Shaft Dia ID	D	L	B	W	Drawing
JSBE10	-	10	19	29	21.7	1.35	—
JSBE12	JSBE12OP	12	22	32	22.7	1.35	—
JSBE16	JSBE16OP	16	26	36	24.7	1.35	—
JSBE20	JSBE20OP	20	32	45	31.3	1.65	—
JSBE25	JSBE25OP	25	40	58	43.8	1.9	—
JSBE30	JSBE30OP	30	47	68	51.8	1.9	—
JSBE40	JSBE40OP	40	62	80	60.4	2.2	—
JSBE50	JSBE50OP	50	75	100	77.4	2.7	—

JLS

JSBB

Linear Bearings · JSBB. Choose the full model marking and mounting format for your machine.9 models / configurationsView specs

Linear Bearings · JSBB. Choose the full model marking and mounting format for your machine.

JSBB
Model No.	Model No.	Shaft Dia ID	D	L	B	W	Drawing
JSBB4	-	0.25	0.5	0.75	0.511	0.039	—
JSBB6	-	0.375	0.625	0.875	0.699	0.039	—
JSBB8	JSBB8OP	0.5	0.875	1.25	1.032	0.05	—
JSBB10	JSBB10OP	0.625	0.125	1.5	1.105	0.056	—
JSBB12	JSBB12OP	0.75	1.25	1.625	1.27	0.056	—
JSBB16	JSBB16OP	1	1.5625	2.25	1.884	0.07	—
JSBB20	JSBB20	1.25	2	2.625	2.004	0.068	—
JSBB24	JSBB24OP	1.5	2.375	3	2.41	0.086	—
JSBB32	JSBB32OP	2	3	4	3.193	0.105	—

JLS

JST-B

Linear Bearings · JST-B. Choose the full model marking and mounting format for your machine.14 models / configurationsView specs

Linear Bearings · JST-B. Choose the full model marking and mounting format for your machine.

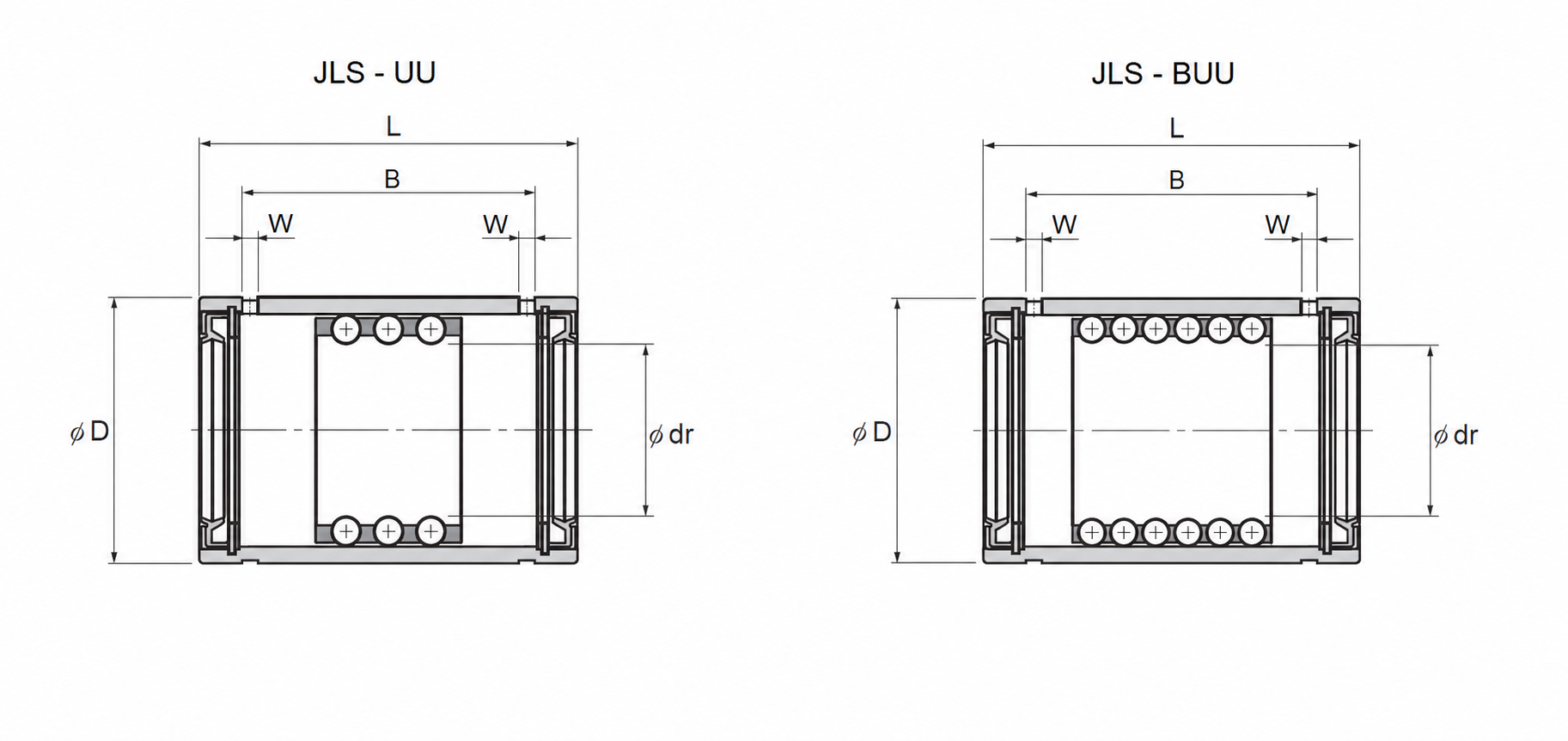

JLS JST-B dimension sketch — Dimension sketch · open to enlarge

JST-B
Model No.	Model No.	Shaft Dia ID	D	L	B	W	Drawing
JST6	-	6	12	20	11.3	1.1	—
JST8	JST8B	8	15	24	17.1	1.5	—
JST10	JST10B	10	19	30	22.7	1.5	—
JST12	JST12B	12	23	32	24.5	1.5	—
JST16	JST16B	16	28	37	29.1	1.5	—
JST20	JST20B	20	32	45	35.8	2	—
JST25	JST25B	25	37	45	35.8	2	—
JST30	JST30B	30	45	65	53.5	2.5	—
JST35	JST35B	35	52	70	58.5	2.5	—
JST40	JST40B	40	60	80	68.3	2.5	—
JST50	JST50B	50	72	100	86.4	3	—
JST60	JST60B	60	85	100	86.4	3	—
JST80	JST80B	80	72	110	86	3	—
JST100	JST100B	100	130	100	86	3	—

JLS

JLMF-GA

Linear Bearings · JLMF-GA. Choose the full model marking and mounting format for your machine.16 models / configurationsView specs

Linear Bearings · JLMF-GA. Choose the full model marking and mounting format for your machine.

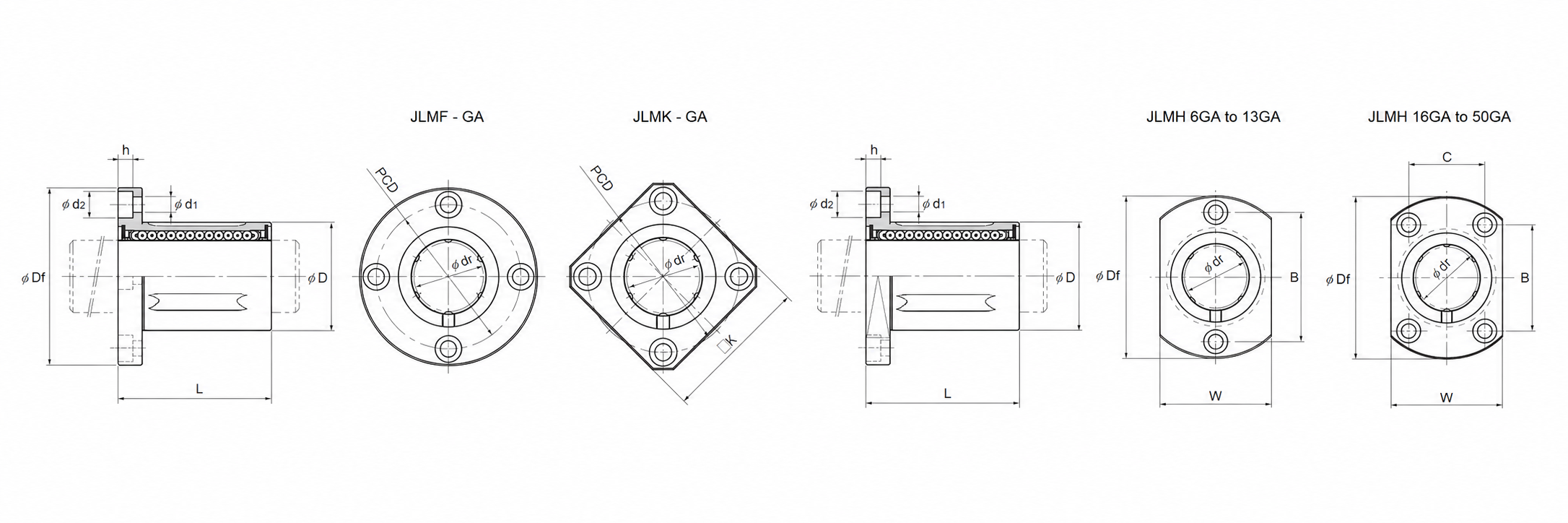

JLS JLMF-GA dimension sketch — Dimension sketch · open to enlarge

JLMF-GA
Model No.	Model No.	Model No.	Shaft Dia. dr	D	L	D f	K	W	PCD	B	C	d 1	d 2	h	Drawing
JLMF6GA	JLMK6GA	JLMH6GA	6	12	19	28	22	18	20	20	-	3.5	6	3.1	—
JLMF8SGA	JLMK8SGA	-	8	15	17	32	25	21	24	-	-	3.5	6	3.1	—
JLMF8GA	JLMK8GA	JLMH8GA	8	15	24	32	25	21	24	24	-	3.5	6	3.1	—
JLMF10GA	JLMK10GA	JLMH10GA	10	19	29	40	30	25	29	29	-	4.5	7.5	4.1	—
JLMF12GA	JLMK12GA	JLMH12GA	12	21	30	42	32	27	32	32	-	4.5	7.5	4.1	—
JLMF13GA	JLMK13GA	JLMH13GA	13	23	32	43	34	29	33	33	-	4.5	7.5	4.1	—
JLMF16GA	JLMK16GA	JLMH16GA	16	28	37	48	37	34	38	31	22	4.5	7.5	4.1	—
JLMF20GA	JLMK20GA	JLMH20GA	20	32	42	54	42	38	43	36	24	5.5	9	5.1	—
JLMF25GA	JLMK25GA	JLMH25GA	25	40	59	62	50	46	51	40	32	5.5	9	5.1	—
JLMF30GA	JLMK30GA	JLMH30GA	30	45	64	74	58	51	60	49	35	6.6	11	6.1	—
JLMF35GA	JLMK35GA	JLMH35GA	35	52	70	82	64	60	67	55	38	6.6	11	6.1	—
JLMF40GA	JLMK40GA	JLMH40GA	40	60	80	96	75	70	78	64	45	9	14	8.1	—
JLMF50GA	JLMK50GA	JLMH50GA	50	80	100	116	92	86	98	80	56	9	14	8.1	—
JLMF60GA	JLMK60GA	-	60	90	110	134	106	-	112	-	-	11	17	11.1	—
JLMF80GA	JLMK80GA	-	80	120	140	164	136	-	142	-	-	11	17	11.1	—
JLMF100GA	JLMK100GA	-	110	150	175	200	170	-	175	-	-	14	20	13.1	—

JLS

JLMEF-GA

Linear Bearings · JLMEF-GA. Choose the full model marking and mounting format for your machine.10 models / configurationsView specs

Linear Bearings · JLMEF-GA. Choose the full model marking and mounting format for your machine.

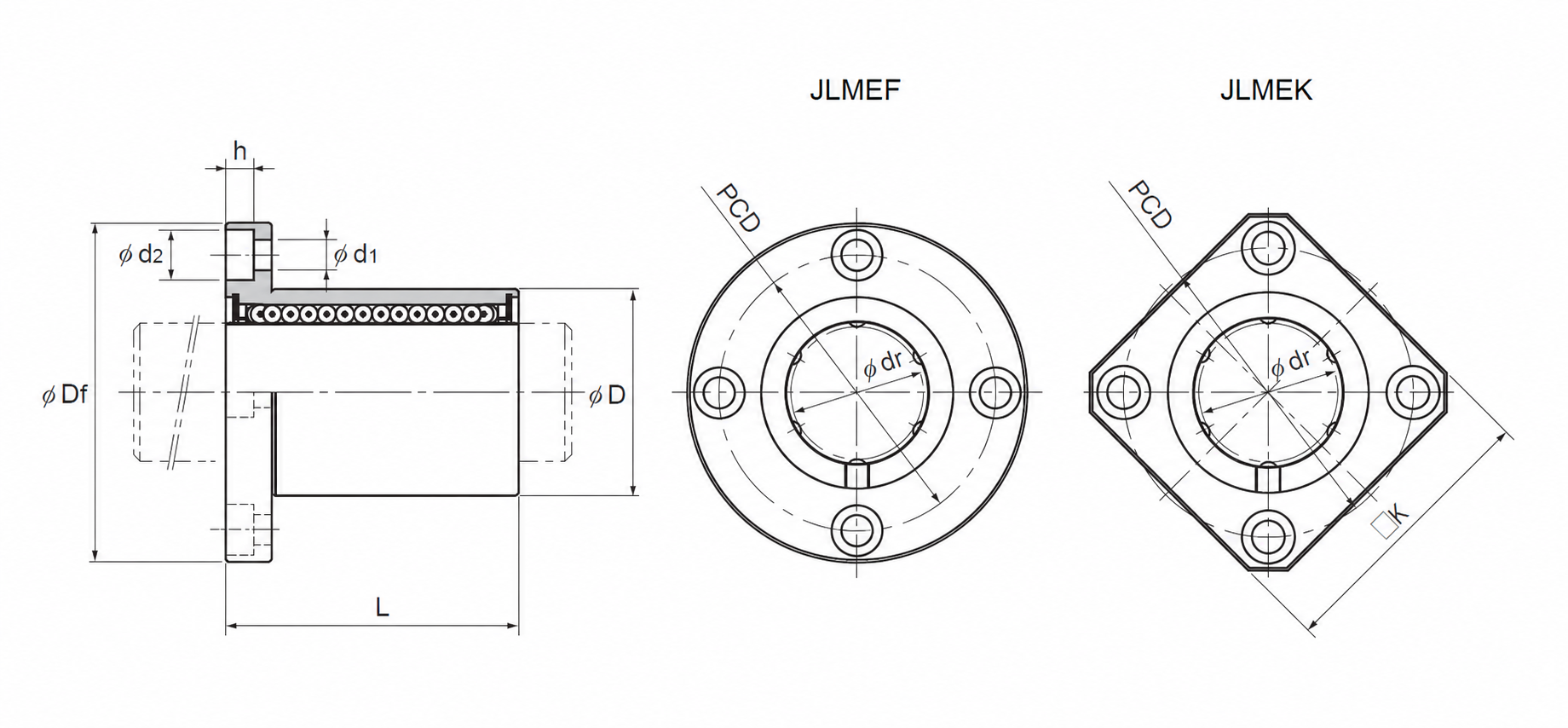

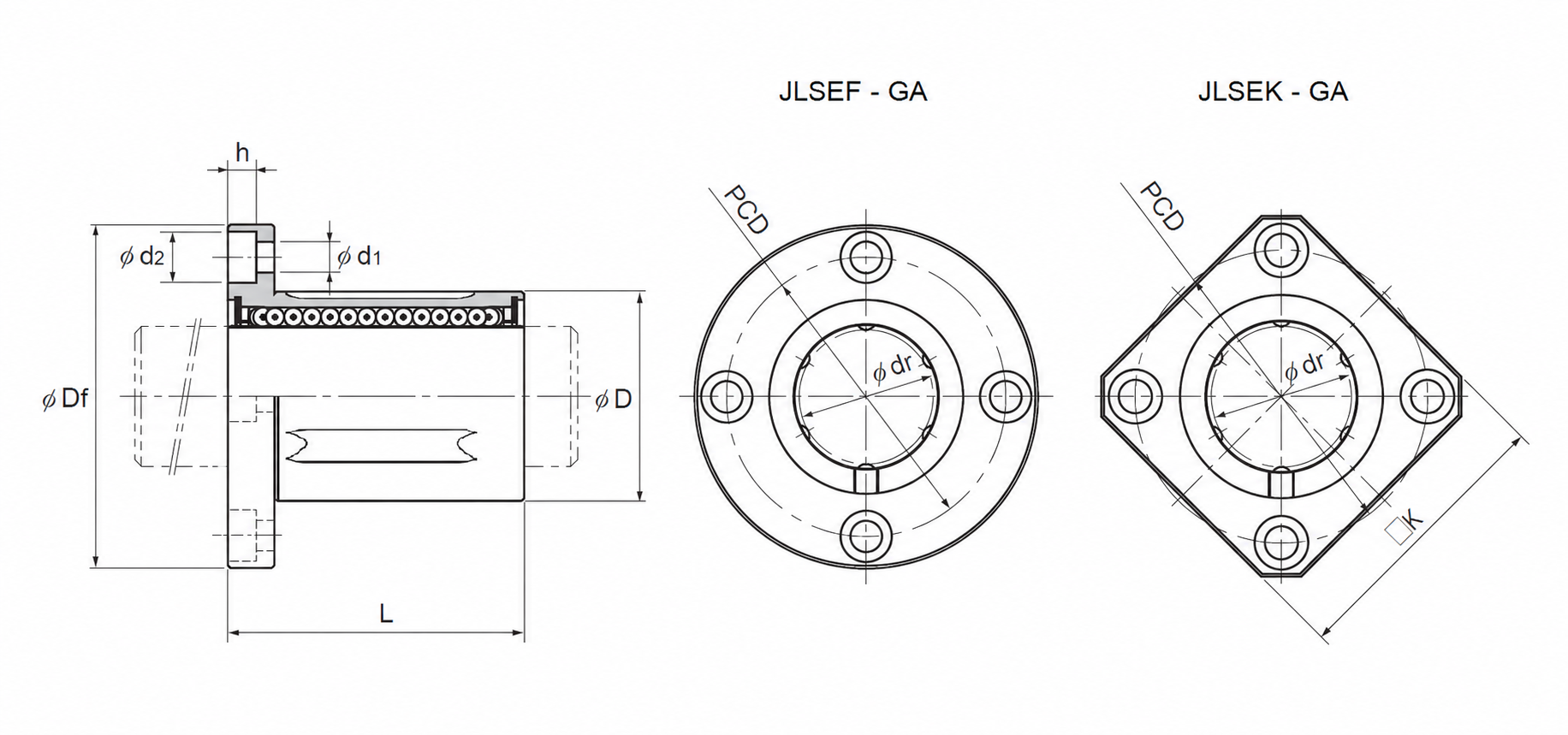

JLS JLMEF-GA dimension sketch — Dimension sketch · open to enlarge

JLMEF-GA
Model No.	Model No.	Shaft Dia. dr	D	L	D f	K	PCD	d 1	d 2	h	Drawing
JLMEF8GA	JLMEK8GA	8	16	25	32	25	24	3.5	6	3.1	—
JLMEF12GA	JLMEK12GA	12	22	32	42	32	32	4.5	7.5	4.1	—
JLMEF16GA	JLMEK16GA	16	126	36	46	35	36	4.5	7.5	4.1	—
JLMEF20GA	JLMEK20GA	20	32	45	54	42	43	5.5	9	5.1	—
JLMEF25GA	JLMEK25GA	25	40	58	62	50	51	5.5	9	5.1	—
JLMEF30GA	JLMEK30GA	30	47	68	76	60	62	6.6	11	6.1	—
JLMEF40GA	JLMEK40GA	40	62	80	98	75	80	9	14	8.1	—
JLMEF50GA	JLMEK50GA	50	75	100	112	88	94	9	14	8.1	—
JLMEF60GA	JLMEK60GA	60	90	125	134	106	112	11	17	11.1	—
JLMEF80GA	JLMEK80GA	80	120	165	164	136	142	11	17	11.1	—

JLS

JLMF

Linear Bearings · JLMF. Choose the full model marking and mounting format for your machine.16 models / configurationsView specs

Linear Bearings · JLMF. Choose the full model marking and mounting format for your machine.

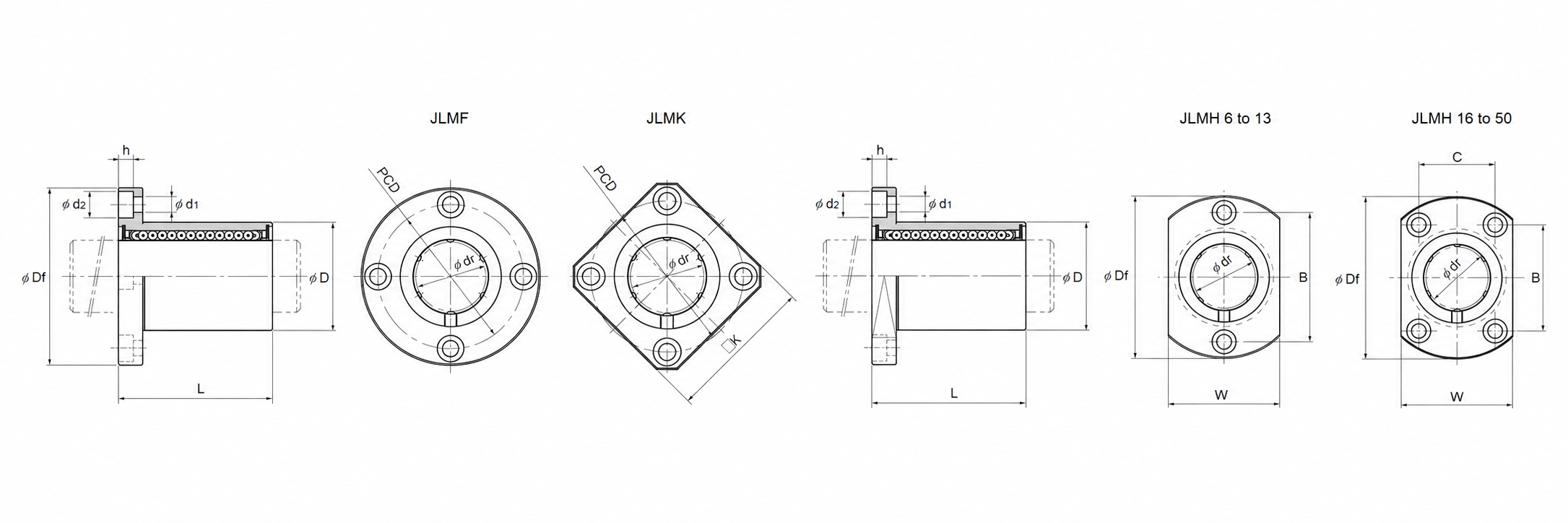

JLS JLMF dimension sketch — Dimension sketch · open to enlarge

JLMF
Model No.	Model No.	Model No.	Shaft Dia. dr	D	L	D f	K	W	PCD	B	C	d 1	d 2	h	Drawing
JLMF6	JLMK6	JLMH6	6	12	19	28	22	18	20	20	-	3.5	6	3.1	—
JLMF8S	JLMK8S	-	8	15	17	32	25	21	24	-	-	3.5	6	3.1	—
JLMF8	JLMK8	JLMH8	8	15	24	32	25	21	24	24	-	3.5	6	3.1	—
JLMF10	JLMK10	JLMH10	10	19	29	40	30	25	29	29	-	4.5	7.5	4.1	—
JLMF12	JLMK12	JLMH12	12	21	30	42	32	27	32	32	-	4.5	7.5	4.1	—
JLMF13	JLMK13	JLMH13	13	23	32	43	34	29	33	33	-	4.5	7.5	4.1	—
JLMF16	JLMK16	JLMH16	16	28	37	48	37	34	38	31	22	4.5	7.5	4.1	—
JLMF20	JLMK20	JLMH20	20	32	42	54	42	38	43	36	24	5.5	9	5.1	—
JLMF25	JLMK25	JLMH25	25	40	59	62	50	46	51	40	32	5.5	9	5.1	—
JLMF30	JLMK30	JLMH30	30	45	64	74	58	51	60	49	35	6.6	11	6.1	—
JLMF35	JLMK35	JLMH35	35	52	70	82	64	60	67	55	38	6.6	11	6.1	—
JLMF40	JLMK40	JLMH40	40	60	80	96	75	70	78	64	45	9	14	8.1	—
JLMF50	JLMK50	JLMH50	50	80	100	116	92	86	98	80	56	9	14	8.1	—
JLMF60	JLMK60	-	60	90	110	134	106	-	112	-	-	11	17	11.1	—
JLMF80	JLMK80	-	80	120	140	164	136	-	142	-	-	11	17	11.1	—
JLMF100	JLMK100	-	110	150	175	200	170	-	175	-	-	14	20	13.1	—

JLS

JLMF-L

Linear Bearings · JLMF-L. Choose the full model marking and mounting format for your machine.15 models / configurationsView specs

Linear Bearings · JLMF-L. Choose the full model marking and mounting format for your machine.

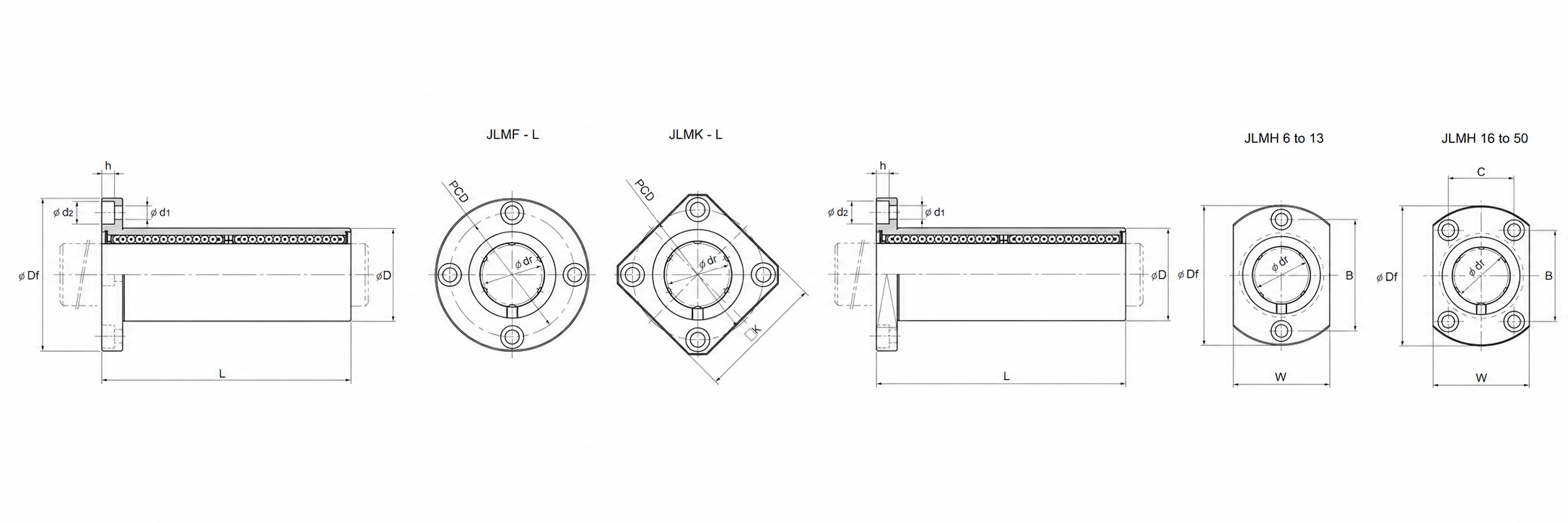

JLS JLMF-L dimension sketch — Dimension sketch · open to enlarge

JLMF-L
Model No.	Model No.	Model No.	Shaft Dia. dr	D	L	D f	K	W	PCD	B	C	d 1	d 2	h	Drawing
JLMF6L	JLMK6L	JLMH6L	6	12	35	28	22	18	20	20	-	3.5	6	3.1	—
JLMF8L	JLMK8L	JLMH8L	8	15	45	32	25	21	24	24	-	3.5	6	3.1	—
JLMF10L	JLMK10L	JLMH10L	10	19	55	40	30	25	29	29	-	4.5	7.5	4.1	—
JLMF12L	JLMK12L	JLMH12L	12	21	57	42	32	27	32	32	-	4.5	7.5	4.1	—
JLMF13L	JLMK13L	JLMH13L	13	23	61	43	34	29	33	33	-	4.5	7.5	4.1	—
JLMF16L	JLMK16L	JLMH16L	16	28	70	48	37	34	38	31	22	4.5	7.5	4.1	—
JLMF20L	JLMK20L	JLMH20L	20	32	80	54	42	38	43	36	24	5.5	9	5.1	—
JLMF25L	JLMK25L	JLMH25L	25	40	112	62	50	46	51	40	32	5.5	9	5.1	—
JLMF30L	JLMK30L	JLMH30L	30	25	123	74	58	51	60	49	35	6.6	11	6.1	—
JLMF35L	JLMK35L	JLMH35L	36	52	135	82	64	60	67	55	38	6.6	11	6.1	—
JLMF40L	JLMK40L	JLMH40L	40	60	151	96	75	70	78	64	45	9	14	8.1	—
JLMF50L	JLMK50L	JLMH50L	50	80	192	116	92	86	98	80	56	9	14	8.1	—
JLMF60L	JLMK60L	-	60	90	209	134	106	-	112	-	-	11	17	11.1	—
JLMF80L	JLMK80L	-	80	120	265	164	136	-	142	-	-	11	17	11.1	—
JLMF100L	JLMK100L	-	100	150	330	200	170	-	175	-	-	14	20	13.1	—

JLS

JLMEF

Linear Bearings · JLMEF. Choose the full model marking and mounting format for your machine.10 models / configurationsView specs

Linear Bearings · JLMEF. Choose the full model marking and mounting format for your machine.

JLS JLMEF dimension sketch — Dimension sketch · open to enlarge

JLMEF
Model No.	Model No.	Shaft Dia. dr	D	L	D f	K	PCD	d 1	d 2	h	Drawing
JLMEF8	JLMEK8	8	16	25	32	25	24	3.5	6	3.1	—
JLMEF12	JLMEK12	12	22	32	42	32	32	4.5	7.5	4.1	—
JLMEF16	JLMEK16	16	26	36	46	35	36	4.5	7.5	4.1	—
JLMEF20	JLMEK20	20	32	45	54	42	43	5.5	9	5.1	—
JLMEF25	JLMEK25	25	40	58	62	50	51	5.5	9	5.1	—
JLMEF30	JLMEK30	30	47	68	76	60	62	6.6	11	6.1	—
JLMEF40	JLMEK40	40	62	80	98	75	80	9	14	8.1	—
JLMEF50	JLMEK50	50	75	100	112	88	94	9	14	8.1	—
JLMEF60	JLMEK60	60	90	125	134	106	112	11	17	11.1	—
JLMEF80	JLMEK80	80	120	165	164	136	142	11	17	11.1	—

JLS

JLMEF-L

Linear Bearings · JLMEF-L. Choose the full model marking and mounting format for your machine.9 models / configurationsView specs

Linear Bearings · JLMEF-L. Choose the full model marking and mounting format for your machine.

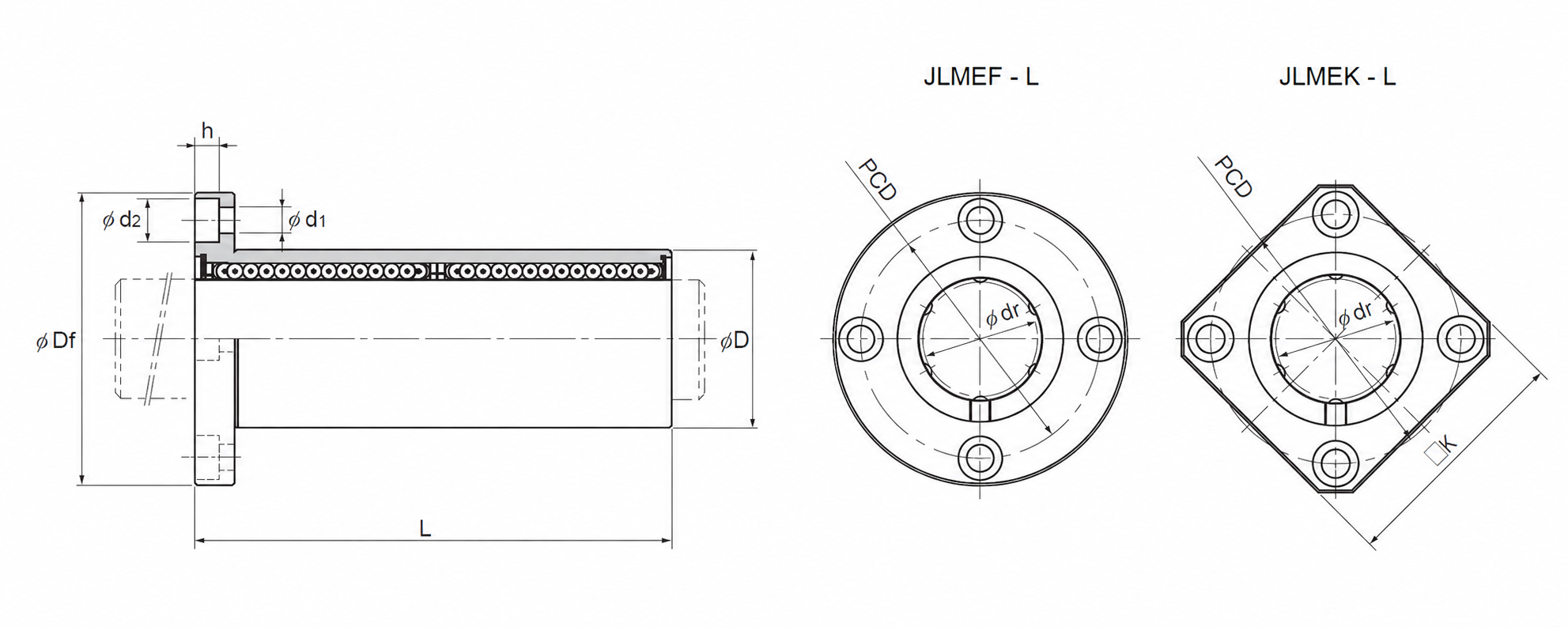

JLS JLMEF-L dimension sketch — Dimension sketch · open to enlarge

JLMEF-L
Model No.	Model No.	Shaft Dia. dr	D	L	D f	K	PCD	d 1	d 2	h	Drawing
JLMEF8L	JLMEK8L	8	16	46	32	25	24	3.5	6	3.1	—
JLMEF12L	JLMEK12L	12	22	61	42	32	32	4.5	7.5	4.1	—
JLMEF16L	JLMEK16L	16	26	68	46	35	36	4.5	7.5	4.1	—
JLMEF20L	JLMEK20L	20	32	80	54	42	43	5.5	9	5.1	—
JLMEF25L	JLMEK25L	25	40	112	62	50	51	5.5	9	5.1	—
JLMEF30L	JLMEK30L	30	47	123	76	60	62	6.6	11	6.1	—
JLMEF40L	JLMEK40L	40	62	151	98	75	80	9	14	8.1	—
JLMEF50L	JLMEK50L	50	75	192	112	88	94	9	14	8.1	—
JLMEF60L	JLMEK60L	60	90	209	134	106	112	11	17	11.1	—

JLS

JLMBF

Linear Bearings · JLMBF. Choose the full model marking and mounting format for your machine.12 models / configurationsView specs

Linear Bearings · JLMBF. Choose the full model marking and mounting format for your machine.

JLS JLMBF dimension sketch — Dimension sketch · open to enlarge

JLMBF
Model No.	Model No.	Shaft Dia. dr	D	L	D f	K	Drawing
JLMBF4	JLMBK4	6.38	12.7	19.05	31.75	25.4	—
JLMBF6	JLMBK6	9.525	15.875	22.225	38.1	31.75	—
JLMBF8	JLMBK8	12.7	22.225	31.75	44.45	34.925	—
JLMBF10	JLMBK10	15.875	28.575	38.1	50.8	38.1	—
JLMBF12	JLMBK12	19.05	31.757	41.275	55.563	42.863	—
JLMBF16	JLMBK16	25.4	39.688	57.15	63.5	50.8	—
JLMBF20	JLMBK20	31.75	50.8	66.675	79.375	63.5	—
JLMBF24	JLMBK24	38.1	60.325	762	95.25	76.2	—
JLMBF32	JLMBK32	50.8	76.2	101.6	111.125	88.9	—
JLMBF40	JLMBK40	63.5	95.25	127	136.525	111.125	—
JLMBF48	JLMBK48	76.2	114.3	152.4	155.575	127	—
JLMBF64	JLMBK64	101.6	152.4	203.2	203.2	171.45	—

JLS

JKBA

Linear Bearings · JKBA. Choose the full model marking and mounting format for your machine.8 models / configurationsView specs

Linear Bearings · JKBA. Choose the full model marking and mounting format for your machine.

JLS JKBA dimension sketch — Dimension sketch · open to enlarge

JKBA
Model No.	Model No.	Model No.	Shaft Dia. dr	h	W	J	L	L w	L v	K	K w	S1xI	Drawing
JKBA8UU	JKBA8LUU	JKBA8SUU	10	11	34	24	30	58	14.5	18	42	M4x8	—
JKBA12UU	JKBA12LUU	JKBA12SUU	12	15	44	33	39	77	20.3	34	76	M5x10	—
JKBA16UU	JKBA16LUU	JKBA16SUU	16	19	50	36	44	89	22.3	40	90	M5x12	—
JKBA20UU	JKBA20LUU	JKBA20SUU	20	21	54	40	53	106	28.3	40	90	M6x12	—
JKBA25UU	JKBA25LUU	JKBA25SUU	25	26	76	54	67	136	40.4	50	119	M8x18	—
JKBA30UU	JKBA30LUU	JKBA30SUU	30	30	78	58	76	154	48.4	58	132	M8x18	—
JKBA40UU	JKBA40LUU	JKBA40SUU	40	40	102	80	90	180	56.4	60	150	M10x25	—
JKBA50UU	JKBA50LUU	JKBA50SUU	50	52	122	100	110	230	72.3	80	200	M10x25	—

JLS

JKBE

Linear Bearings · JKBE. Choose the full model marking and mounting format for your machine.9 models / configurationsView specs

Linear Bearings · JKBE. Choose the full model marking and mounting format for your machine.

JKBE
Model No.	Shaft Dia ID	h	W	J	L	K	S1xI	Drawing
JSME10UU	10	15	36	32	25	20	M5x10	—
JSME12UU	12	17	40	39	28	26	M5x10	—
JSME13UU	13	17	40	39	28	26	M5x10	—
JSME16UU	16	20	45	45	32	30	M5x12	—
JSME20UU	20	23	48	50	35	35	M6x12	—
JSME25UU	25	27	60	65	40	40	M6x12	—
JSME30UU	30	33	70	70	50	50	M8x18	—
JSME40UU	40	42	90	90	65	65	M10x25	—
JSME50UU	50	53	120	110	94	80	M10x20	—

JLS

JLMBFC

Linear Bearings · JLMBFC. Choose the full model marking and mounting format for your machine.9 models / configurationsView specs

Linear Bearings · JLMBFC. Choose the full model marking and mounting format for your machine.

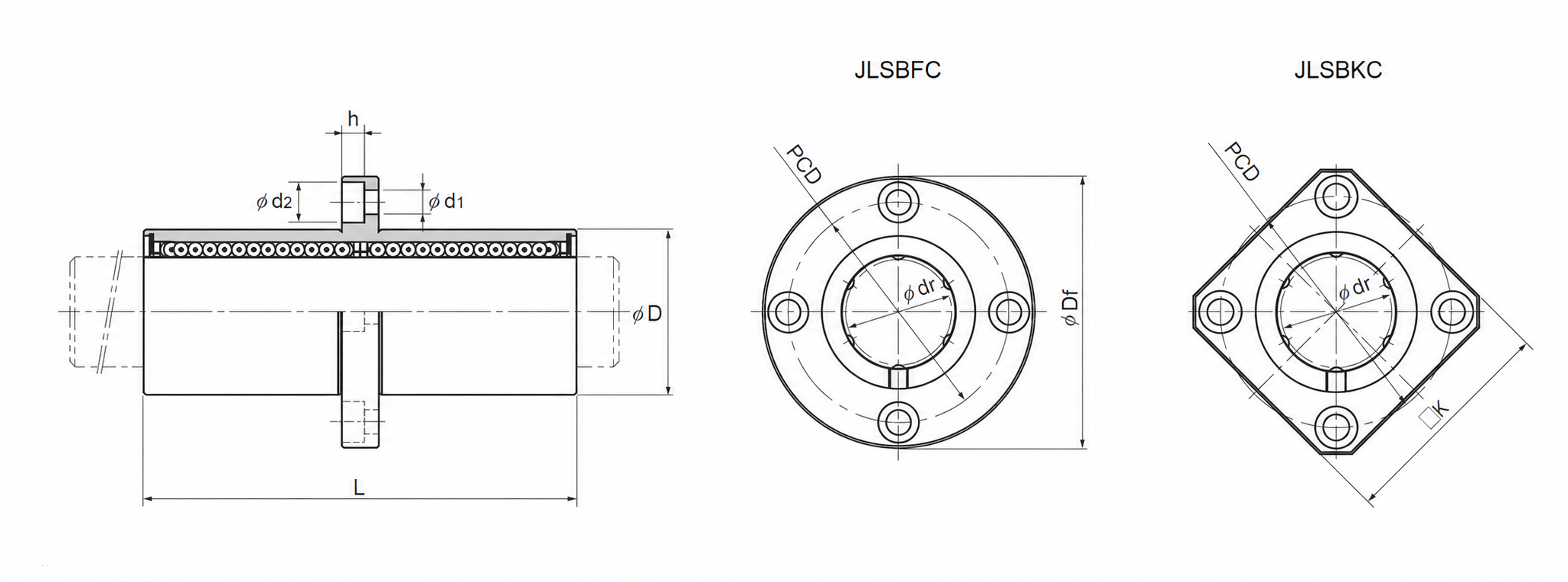

JLS JLMBFC dimension sketch — Dimension sketch · open to enlarge

JLMBFC
Model No.	Model No.	Shaft Dia. dr	D	L	D f	K	Drawing
JLMBFC4UU	JLMBKC4UU	6.38	12.7	34.925	31.75	25.4	—
JLMBFC6UU	JLMBKC6UU	9.525	15.875	40.481	38.1	31.75	—
JLMBFC8UU	JLMBKC8UU	12.7	22.225	60.325	44.45	34.925	—
JLMBFC10UU	JLMBKC10UU	15.875	28.575	71.438	50.8	38.1	—
JLMBFC12UU	JLMBKC12UU	19.05	31.757	78.581	55.563	42.863	—
JLMBFC16UU	JLMBKC16UU	25.4	39.688	108.744	63.5	50.8	—
JLMBFC20UU	JLMBKC20UU	31.75	50.8	127	79.375	63.5	—
JLMBFC24UU	JLMBKC24UU	38.1	60.325	144.463	95.25	76.2	—
JLMBFC32UU	JLMBKC32UU	50.8	76.2	196.85	111.125	88.9	—

JLS

JLMEFC

Linear Bearings · JLMEFC. Choose the full model marking and mounting format for your machine.9 models / configurationsView specs

Linear Bearings · JLMEFC. Choose the full model marking and mounting format for your machine.

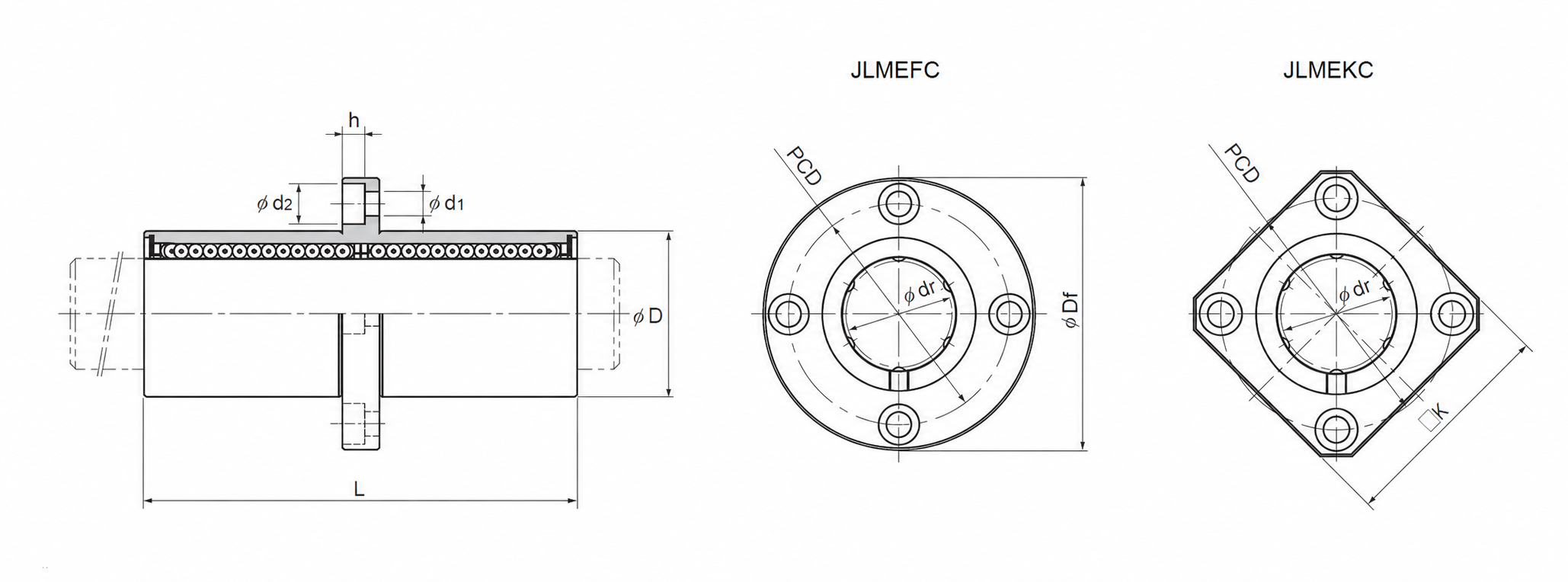

JLS JLMEFC dimension sketch — Dimension sketch · open to enlarge

JLMEFC
Model No.	Model No.	Shaft Dia. dr	D	L	D f	K	I	Drawing
JLMEFC8UU	JLMEKC8UU	8	16	46	32	25	20.5	—
JLMEFC12UU	JLMEKC12UU	12	22	61	42	32	27.5	—
JLMEFC16UU	JLMEKC16UU	16	26	68	46	35	31	—
JLMEFC20UU	JLMEKC20UU	20	32	80	54	42	36	—
JLMEFC25UU	JLMEKC25UU	25	40	112	62	50	52	—
JLMEFC30UU	JLMEKC30UU	30	47	123	76	60	56.5	—
JLMEFC40UU	JLMEKC40UU	40	62	151	98	75	69	—
JLMEFC50UU	JLMEKC50UU	50	75	192	112	88	89.5	—
JLMEFC60UU	JLMEKC60UU	60	90	209	134	106	95.5	—

JLS

JLMFC

Linear Bearings · JLMFC. Choose the full model marking and mounting format for your machine.13 models / configurationsView specs

Linear Bearings · JLMFC. Choose the full model marking and mounting format for your machine.

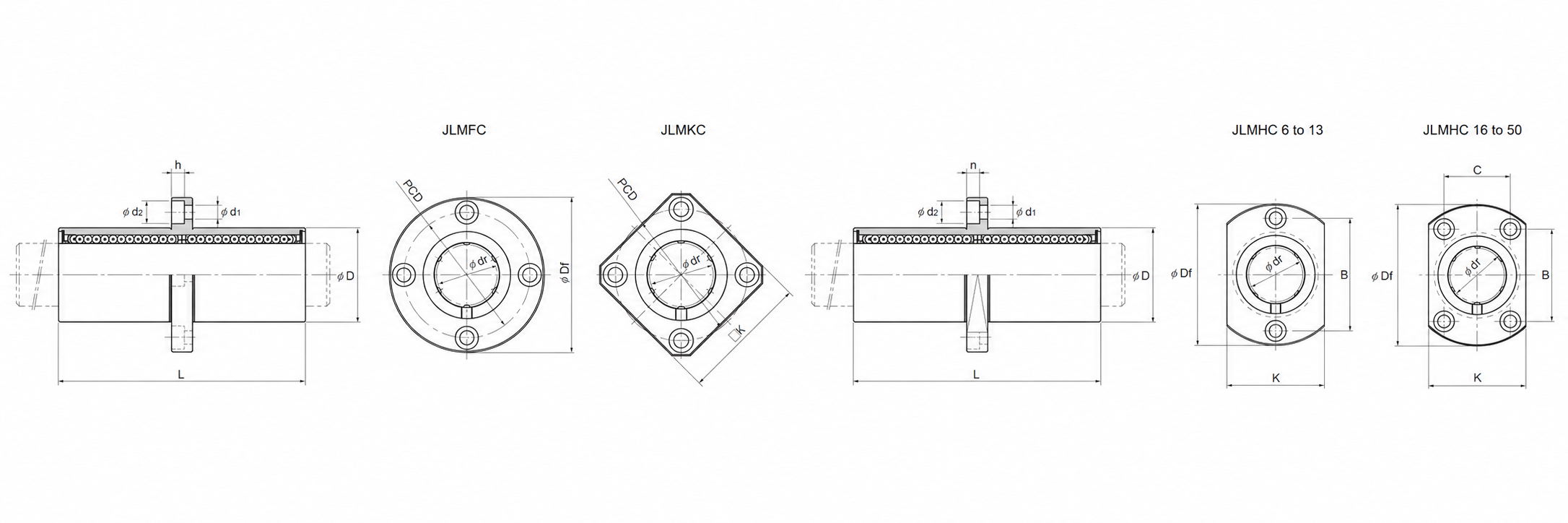

JLS JLMFC dimension sketch — Dimension sketch · open to enlarge

JLMFC
Model No.	Model No.	Model No.	Shaft Dia. dr	D	L	D f	K	W	I	Drawing
JLMFC6UU	JLMKC6UU	JLMHC6UU	6	12	19	28	22	18	15	—
JLMFC8UU	JLMKC8UU	JLMHC8UU	8	15	24	32	25	21	20	—
JLMFC10UU	JLMKC10UU	JLMHC10UU	10	19	29	40	30	25	24.5	—
JLMFC12UU	JLMKC12UU	JLMHC12UU	12	21	30	42	32	27	25.5	—
JLMFC13UU	JLMKC13UU	JLMHC13UU	13	23	32	43	34	29	27.5	—
JLMFC16UU	JLMKC16UU	JLMHC16UU	16	28	37	48	37	34	32	—
JLMFC20UU	JLMKC20UU	JLMHC20UU	20	32	42	54	42	38	36	—
JLMFC25UU	JLMKC25UU	JLMHC25UU	25	40	59	62	50	46	52	—
JLMFC30UU	JLMKC30UU	JLMHC30UU	30	45	64	74	58	51	56.5	—
JLMFC35UU	JLMKC35UU	JLMHC35UU	35	52	70	82	64	60	62.5	—
JLMFC40UU	JLMKC40UU	JLMHC40UU	40	60	80	96	75	70	69	—
JLMFC50UU	JLMKC50UU	JLMHC50UU	50	80	100	116	92	86	89.5	—
JLMFC60UU	JLMKC60UU	-	60	90	110	134	106	-	95.5	—

JLS

JLMFP-L

Linear Bearings · JLMFP-L. Choose the full model marking and mounting format for your machine.13 models / configurationsView specs

Linear Bearings · JLMFP-L. Choose the full model marking and mounting format for your machine.

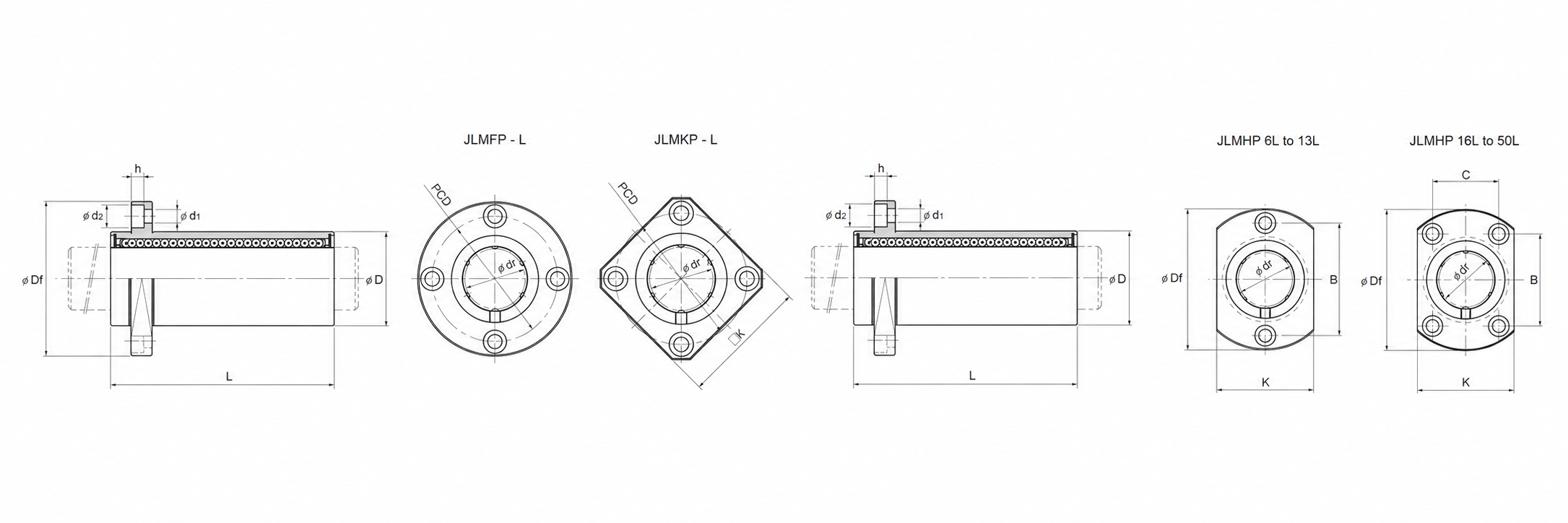

JLS JLMFP-L dimension sketch — Dimension sketch · open to enlarge

JLMFP-L
Model No.	Model No.	Model No.	Shaft Dia. dr	D	L	D f	K	W	I	Drawing
JLMFP6LUU	JLMKP6LUU	JLMHP6LUU	6	12	35	28	22	18	5	—
JLMFP8LUU	JLMKP8LUU	JLMHP8LUU	8	15	45	32	25	21	5	—
JLMFP10LUU	JLMKP10LUU	JLMHP10LUU	10	19	55	40	30	25	6	—
JLMFP12LUU	JLMKP12LUU	JLMHP12LUU	12	21	57	42	32	27	6	—
JLMFP13LUU	JLMKP13LUU	JLMHP13LUU	13	23	61	43	34	29	6	—
JLMFP16LUU	JLMKP16LUU	JLMHP16LUU	16	28	70	48	37	34	6	—
JLMFP20LUU	JLMKP20LUU	JLMHP20LUU	20	32	80	54	42	38	8	—
JLMFP25LUU	JLMKP25LUU	JLMHP25LUU	25	40	112	62	50	46	8	—
JLMFP30LUU	JLMKP30LUU	JLMHP30LUU	30	45	123	74	58	51	10	—
JLMFP35LUU	JLMKP35LUU	JLMHP35LUU	35	52	135	82	64	60	10	—
JLMFP40LUU	JLMKP40LUU	JLMHP40LUU	40	60	151	96	75	70	13	—
JLMFP50LUU	JLMKP50LUU	JLMHP50LUU	50	80	192	116	92	86	13	—
JLMFP60LUU	JLMKP60LUU	-	60	90	209	134	106	-	18	—

JLS

JLMFP

Linear Bearings · JLMFP. Choose the full model marking and mounting format for your machine.13 models / configurationsView specs

Linear Bearings · JLMFP. Choose the full model marking and mounting format for your machine.

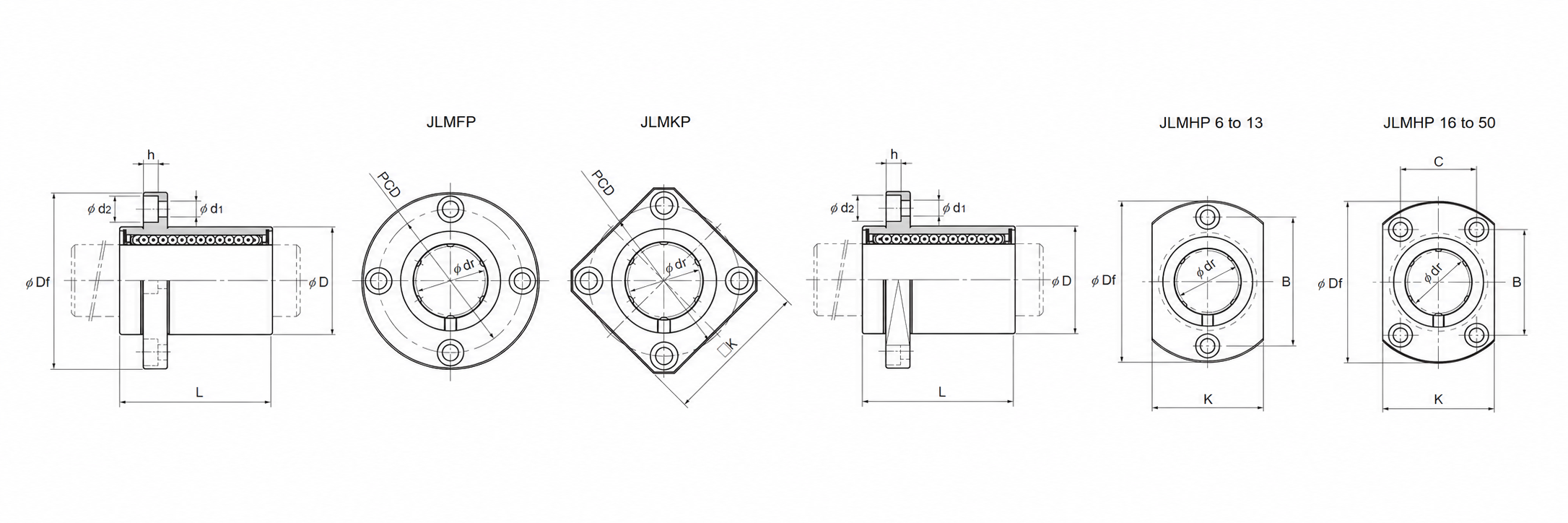

JLS JLMFP dimension sketch — Dimension sketch · open to enlarge

JLMFP
Model No.	Model No.	Model No.	Shaft Dia. dr	D	L	D f	K	W	I	Drawing
JLMFP6UU	JLMKP6UU	JLMHP6UU	6	12	19	28	22	18	5	—
JLMFP8UU	JLMKP8UU	JLMHP8UU	8	15	24	32	25	21	5	—
JLMFP10UU	JLMKP10UU	JLMHP10UU	10	19	29	40	30	25	6	—
JLMFP12UU	JLMKP12UU	JLMHP12UU	12	21	30	42	32	27	6	—
JLMFP13UU	JLMKP13UU	JLMHP13UU	13	23	32	43	34	29	6	—
JLMFP16UU	JLMKP16UU	JLMHP16UU	16	28	37	48	37	34	6	—
JLMFP20UU	JLMKP20UU	JLMHP20UU	20	32	42	54	42	38	8	—
JLMFP25UU	JLMKP25UU	JLMHP25UU	25	40	59	62	50	46	8	—
JLMFP30UU	JLMKP30UU	JLMHP30UU	30	45	64	74	58	51	10	—
JLMFP35UU	JLMKP35UU	JLMHP35UU	35	52	70	82	64	60	10	—
JLMFP40UU	JLMKP40UU	JLMHP40UU	40	60	80	96	75	70	13	—
JLMFP50UU	JLMKP50UU	JLMHP50UU	50	80	100	116	92	86	13	—
JLMFP60UU	JLMKP60UU	-	60	90	110	134	106	-	18	—

JLS

JSC-AJ

Linear Bearings · JSC-AJ. Choose the full model marking and mounting format for your machine.11 models / configurationsView specs

Linear Bearings · JSC-AJ. Choose the full model marking and mounting format for your machine.

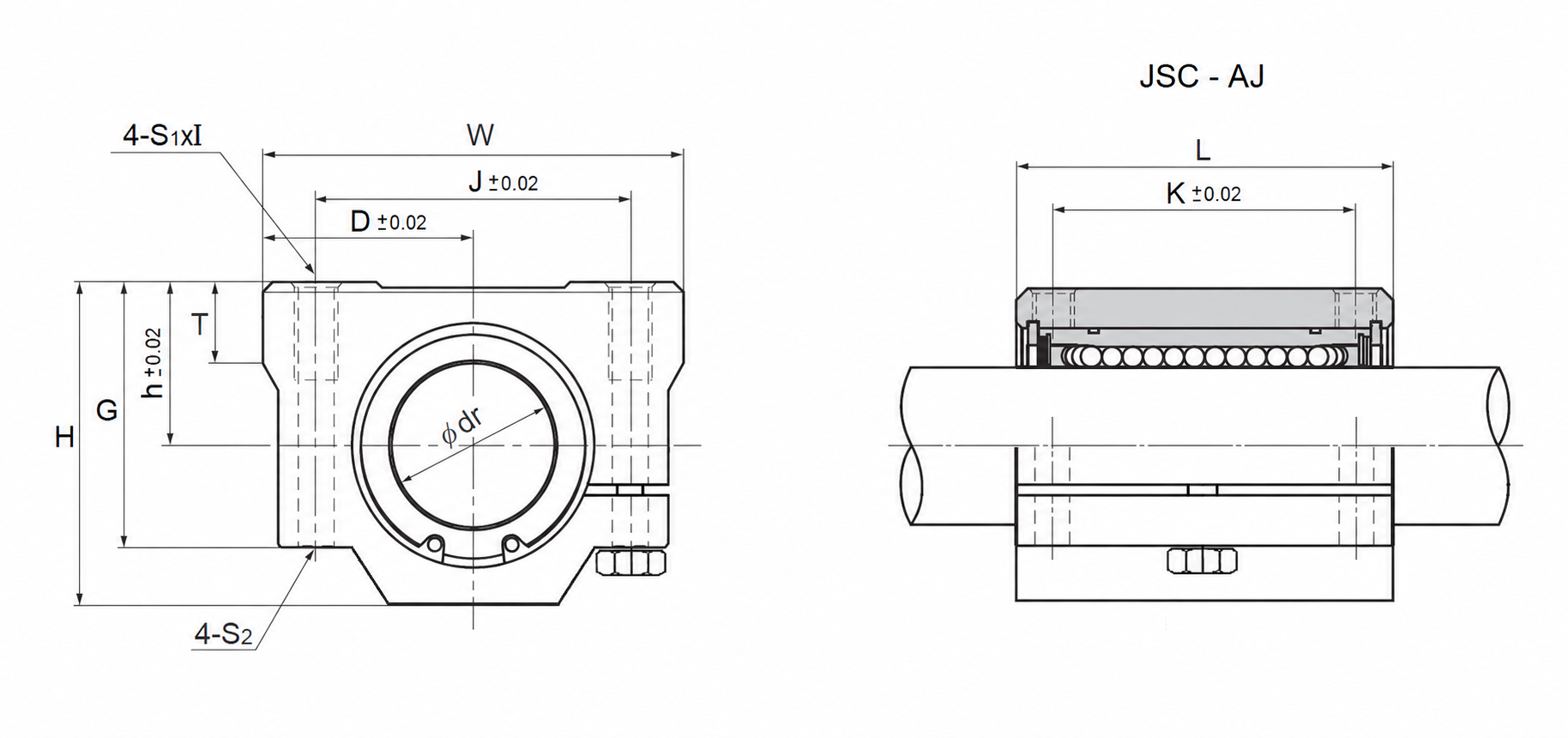

JLS JSC-AJ dimension sketch — Dimension sketch · open to enlarge

JSC-AJ
Model No.	Shaft Dia. dr	h	W	J	L	K	S1xI	Drawing
JSC10UUAJ	10	13	40	28	35	21	M5x12	—
JSC12UUAJ	12	25	42	13.5	36	26	M5x12	—
JSC13UUAJ	13	15	44	33	39	26	M5x12	—
JSC16UUAJ	16	19	50	36	44	34	M5x12	—
JSC200UUAJ	20	21	54	40	50	40	M6x12	—
JSC25UUAJ	25	26	76	54	67	50	M8x18	—
JSC30UUAJ	30	30	78	58	72	58	M8x18	—
JSC35UUAJ	35	34	90	70	80	60	M8x18	—
JSC40UUAJ	40	40	102	80	90	60	M10x25	—
JSC50UUAJ	50	52	122	100	110	80	M10x25	—
JSC60UUAJ	60	58	132	108	122	90	M12x25	—

JLS

JSC

Linear Bearings · JSC. Choose the full model marking and mounting format for your machine.12 models / configurationsView specs

Linear Bearings · JSC. Choose the full model marking and mounting format for your machine.

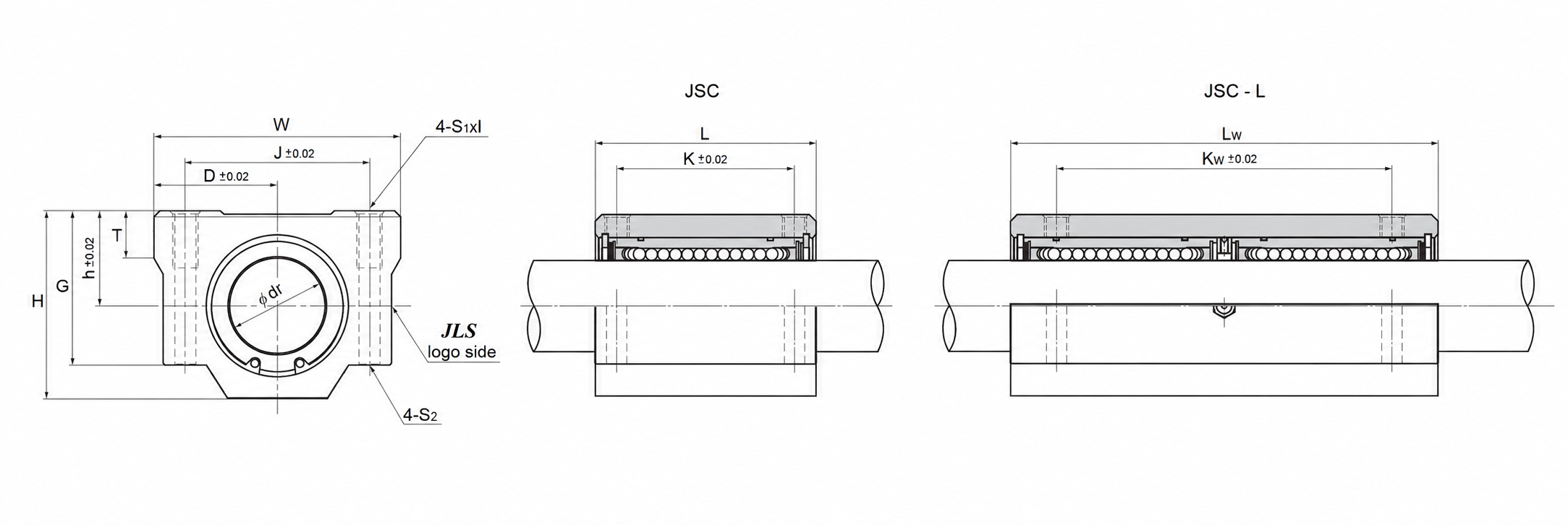

JLS JSC dimension sketch — Dimension sketch · open to enlarge

JSC
Model No.	Model No.	Model No.	Shaft Dia. dr	h	W	J	L	L w	L v	K	K w	S1xI	Drawing
JSC8UU	JSC8LUU	JSC8SUU	10	11	34	24	30	58	15.4	18	42	M5X12	—
JSC10UU	JSC10LUU	JSC10SUU	10	13	40	28	35	68	19.5	21	46	M5X12	—
JSC12UU	JSC12LUU	JSC12SUU	12	15	42	30.5	36	70	20.5	26	50	M5X12	—
JSC13UU	JSC13LUU	JSC13SUU	13	15	44	33	39	75	20.5	26	50	M5X12	—
JSC16UU	JSC16LUU	JSC16SUU	16	19	50	36	44	85	23.5	34	60	M5X12	—
JSC20UU	JSC20LUU	JSC20SUU	20	21	54	40	50	96	27.4	40	70	M5X12	—
JSC25UU	JSC25LUU	JSC25SUU	25	26	76	54	67	130	37.4	50	100	M5X18	—
JSC30UU	JSC30LUU	JSC30SUU	30	30	78	58	72	140	40.9	58	110	M5X18	—
JSC35UU	JSC35LUU	JSC35SUU	35	34	90	70	80	155	45.4	60	120	M5X18	—
JSC40UU	JSC40LUU	JSC40SUU	40	40	102	80	90	175	56.4	60	140	M5X25	—
JSC50UU	JSC50LUU	JSC50SUU	50	52	122	100	110	215	68.9	80	160	M5X25	—
JSC60UU	JSC60LUU	JSC60SUU	60	58	132	108	122	240	78.8	90	180	M5X25	—

JLS

JSME-L

Linear Bearings · JSME-L. Choose the full model marking and mounting format for your machine.6 models / configurationsView specs

Linear Bearings · JSME-L. Choose the full model marking and mounting format for your machine.

JSME-L
Model No.	Shaft Dia ID	h	W	J	L	K	S1xI	Drawing
JSME16LUU	16	20	45	85	32	60	M5x12	—
JSME20LUU	20	23	48	96	35	70	M6x12	—
JSME25LUU	25	27	60	130	40	100	M6x12	—
JSME30LUU	30	33	70	140	50	110	M8x18	—
JSME35LUU	35	37	80	155	55	120	M8x18	—
JSME40LUU	40	42	90	175	65	140	M10x20	—

JLS

JSME

Linear Bearings · JSME. Choose the full model marking and mounting format for your machine.9 models / configurationsView specs

Linear Bearings · JSME. Choose the full model marking and mounting format for your machine.

JSME
Model No.	Shaft Dia ID	h	W	J	L	K	S1xI	Drawing
JSME10UU	10	15	36	32	25	20	M5x10	—
JSME13UU	13	17	40	39	28	26	M5x10	—
JSME16UU	16	20	45	45	32	30	M5x12	—
JSME20UU	20	23	48	50	35	35	M6x12	—
JSME25UU	25	27	60	65	40	40	M6x12	—
JSME30UU	30	33	70	70	50	50	M8x18	—
JSME35UU	35	37	80	80	55	55	M8x18	—
JSME40UU	40	42	90	90	65	65	M10x25	—
JSME50UU	50	53	120	110	94	80	M10x20	—

Linear Shafts1 family

JLS

Linear Shafts

Linear Shafts · Linear Shafts. Choose the full model marking and mounting format for your machine.30 models / configurationsView specs

Linear Shafts · Linear Shafts. Choose the full model marking and mounting format for your machine.

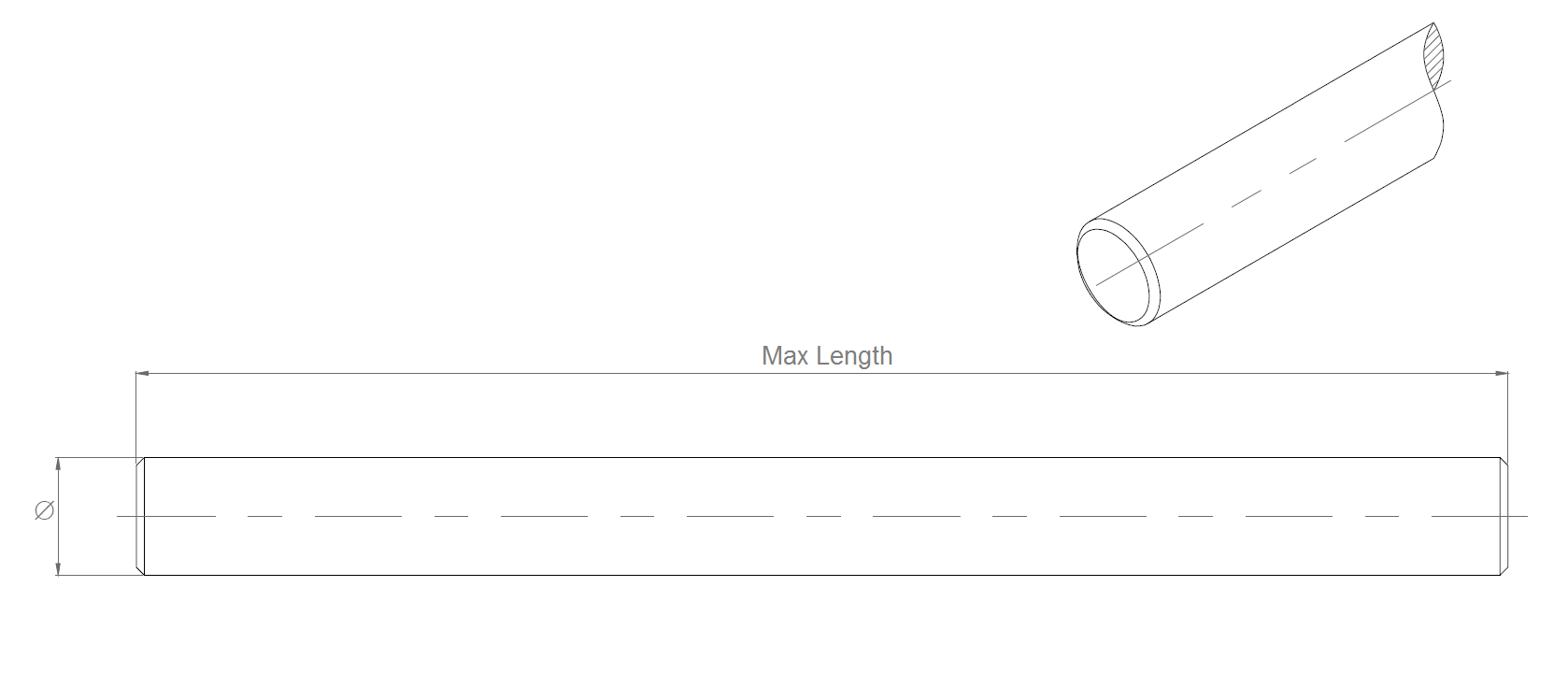

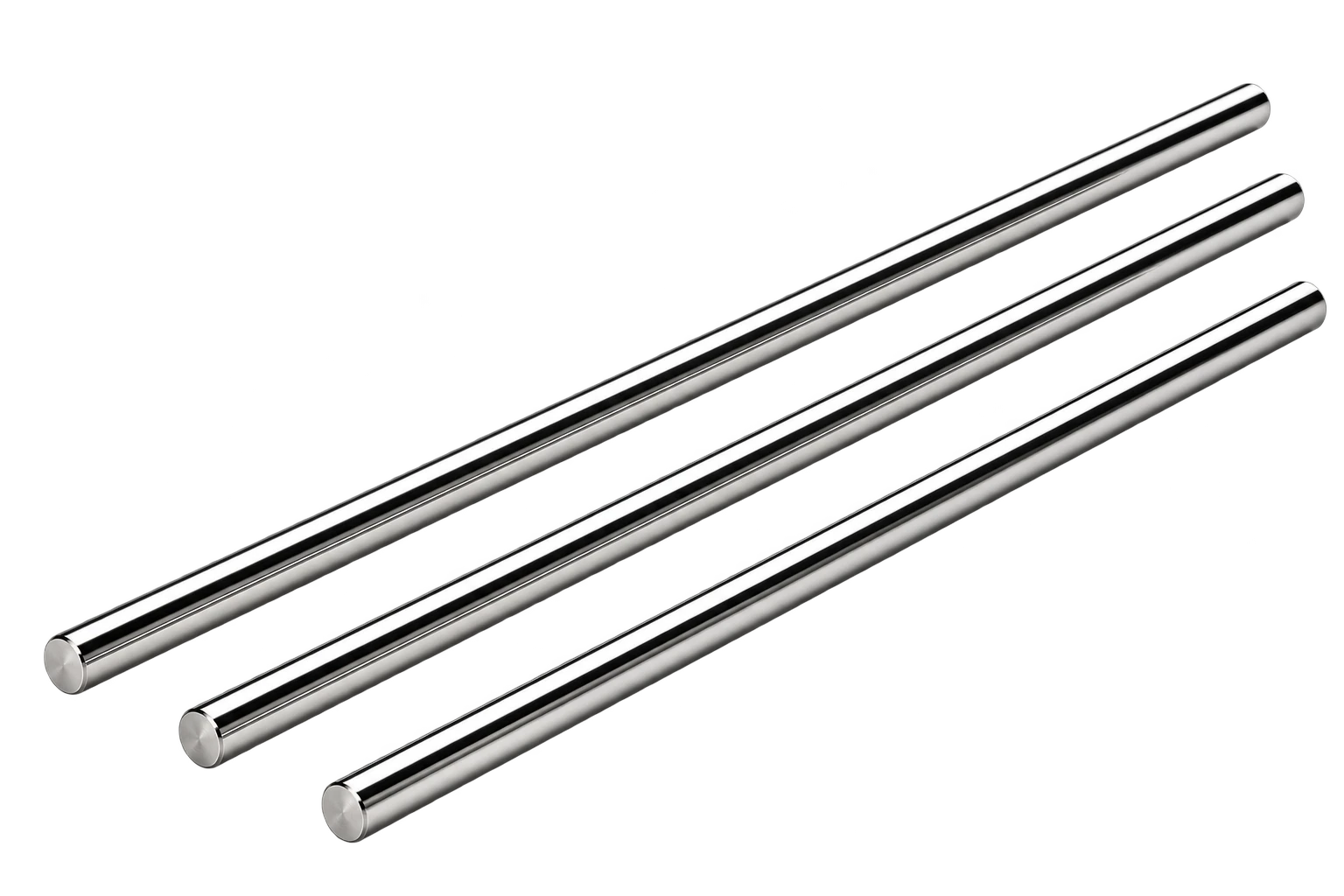

JLS Linear Shafts dimension sketch — Dimension sketch · open to enlarge

Linear Shafts
Model No.	Dia	g6 (µm)	h5 (µm)	h6 (µm)	Drawing
JSF03	3	-2 ~ -8	0 ~ -4	0 ~ -6	Drawing PDF ↗
JSF04	4	-4 ~ -12	0 ~ -5	0 ~ -8	Drawing PDF ↗
JSF05	5	-4 ~ -12	0 ~ -5	0 ~ -8	Drawing PDF ↗
JSF06	6	-4 ~ -12	0 ~ -5	0 ~ -8	Drawing PDF ↗
JSF08	8	-5 ~ -14	0 ~ -6	0 ~ -9	Drawing PDF ↗
JSF10	10	-5 ~ -14	0 ~ -6	0 ~ -9	Drawing PDF ↗
JSF12	12	-6 ~ -17	0 ~ -8	0 ~ -11	Drawing PDF ↗
JSF13	13	-6 ~ -17	0 ~ -8	0 ~ -11	Drawing PDF ↗
JSF16	16	-6 ~ -17	0 ~ -8	0 ~ -11	Drawing PDF ↗
JSF20	20	-7 ~ -20	0 ~ -9	0 ~ -13	Drawing PDF ↗
JSF22	22	-7 ~ -20	0 ~ -9	0 ~ -13	Drawing PDF ↗
JSF25	25	-7 ~ -20	0 ~ -9	0 ~ -13	Drawing PDF ↗
JSF30	30	-7 ~ -20	0 ~ -9	0 ~ -13	Drawing PDF ↗
JSF32	32	-7 ~ -20	0 ~ -9	0 ~ -13	Drawing PDF ↗
JSF35	35	-9 ~ -25	0 ~ -11	0 ~ -16	Drawing PDF ↗
JSF40	40	-9 ~ -25	0 ~ -11	0 ~ -16	Drawing PDF ↗
JSF45	45	-9 ~ -25	0 ~ -11	0 ~ -16	Drawing PDF ↗
JSF50	50	-9 ~ -25	0 ~ -11	0 ~ -16	Drawing PDF ↗
JSF55	55	-9 ~ -25	0 ~ -11	0 ~ -16	Drawing PDF ↗
JSF56	56	-9 ~ -25	0 ~ -11	0 ~ -16	Drawing PDF ↗
JSF60	60	-10 ~ -29	0 ~ -13	0 ~ -19	Drawing PDF ↗
JSF63	63	-10 ~ -29	0 ~ -13	0 ~ -19	Drawing PDF ↗
JSF70	70	-10 ~ -29	0 ~ -13	0 ~ -19	Drawing PDF ↗
JSF80	80	-10 ~ -29	0 ~ -13	0 ~ -19	Drawing PDF ↗
JSF90	90	-12 ~ -34	0 ~ -15	0 ~ -22	Drawing PDF ↗
JSF100	80	-12 ~ -34	0 ~ -15	0 ~ -22	Drawing PDF ↗
JSF120	120	-12 ~ -34	0 ~ -15	0 ~ -22	Drawing PDF ↗
JSF150	150	-14 ~ -49	0 ~ -18	0 ~ -25	Drawing PDF ↗
JSF180	180	-14 ~ -39	0 ~ -18	0 ~ -25	Drawing PDF ↗
JSF200	200	-15 ~ -44	0 ~ -20	0 ~ -29	Drawing PDF ↗

Shaft Supports4 families

JLS

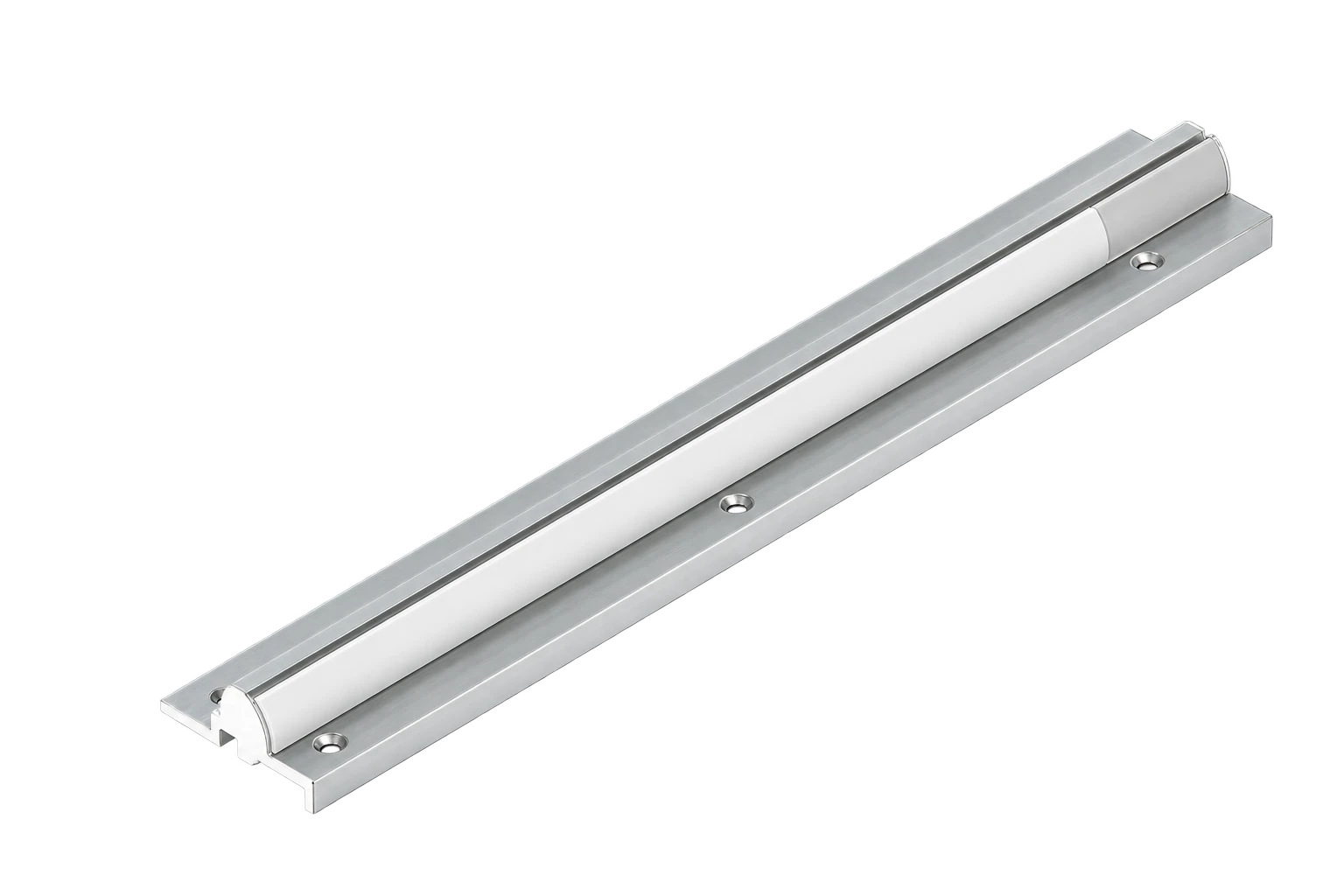

JSSP-E

Shaft Supports · JSSP-E. Choose the full model marking and mounting format for your machine.9 models / configurationsView specs

Shaft Supports · JSSP-E. Choose the full model marking and mounting format for your machine.

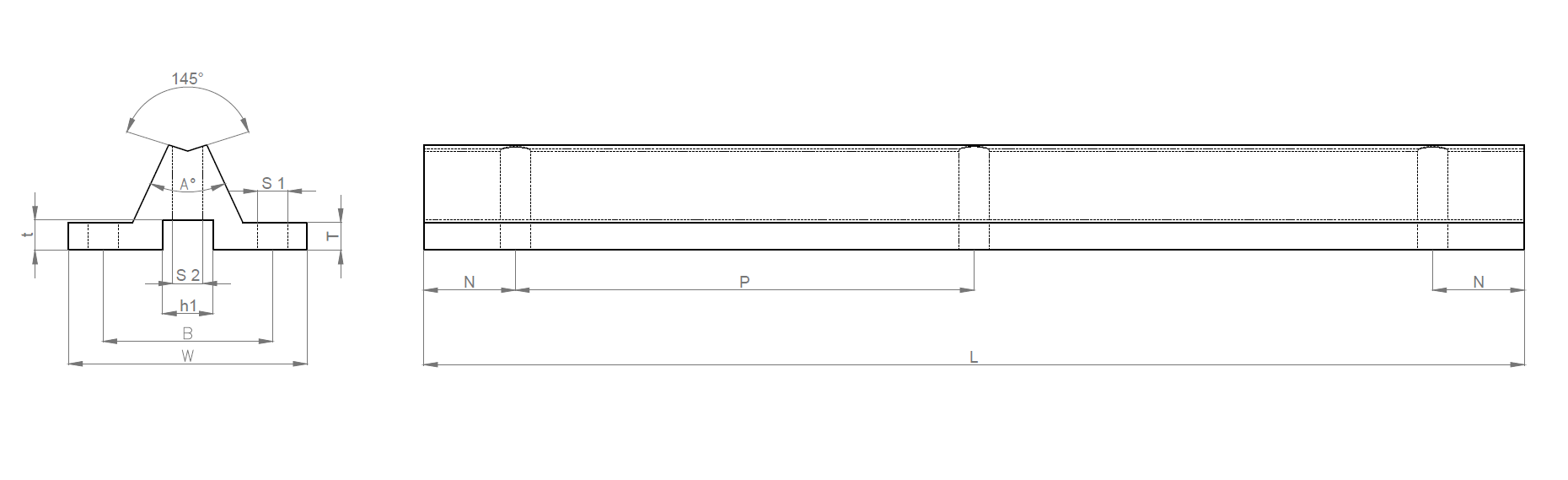

JLS JSSP-E dimension sketch — Dimension sketch · open to enlarge

JSSP-E
Model No.	Shaft Dia D	H(± 0.2)	E	W(± 0.2)	L	T(± 0.1)	A	B	N	P	S 2	S 1	h 1 (± 0.1)	t	Drawing
JSSP 12 E	12	22	20	40	4000	5	50	29	12.5	75	4.5	4.5	8	4.5	—
JSSP 16 E	16	26	22.5	45	4000	5	50	33	50	150	5.5	5.5	9.5	6	—
JSSP 20 E	20	32	26	52	4000	6	50	37	50	150	6.6	6.6	11	6.5	—
JSSP 25 E	25	36	28.5	57	4000	6	50	42	100	200	9	6.6	14	8.5	—
JSSP 30 E	30	42	34.5	69	4000	7	50	51	100	200	11	9	17	10.5	—
JSSP 40 E	40	50	36.5	73	4000	8	50	55	50	300	11	9	17	10.5	—
JSSP 50 E	50	60	42	84	4000	9	46	63	50	300	13	11	19	12.5	—
JSSP 60 E	60	68	47	94	4000	10	46	72	50	300	15	11	22	13	—
JSSP 80 E	80	86	58	116	4000	12	46	92	50	300	17	12	25	15	—

JLS

JSWSP-E

Shaft Supports · JSWSP-E. Choose the full model marking and mounting format for your machine.9 models / configurationsView specs

Shaft Supports · JSWSP-E. Choose the full model marking and mounting format for your machine.

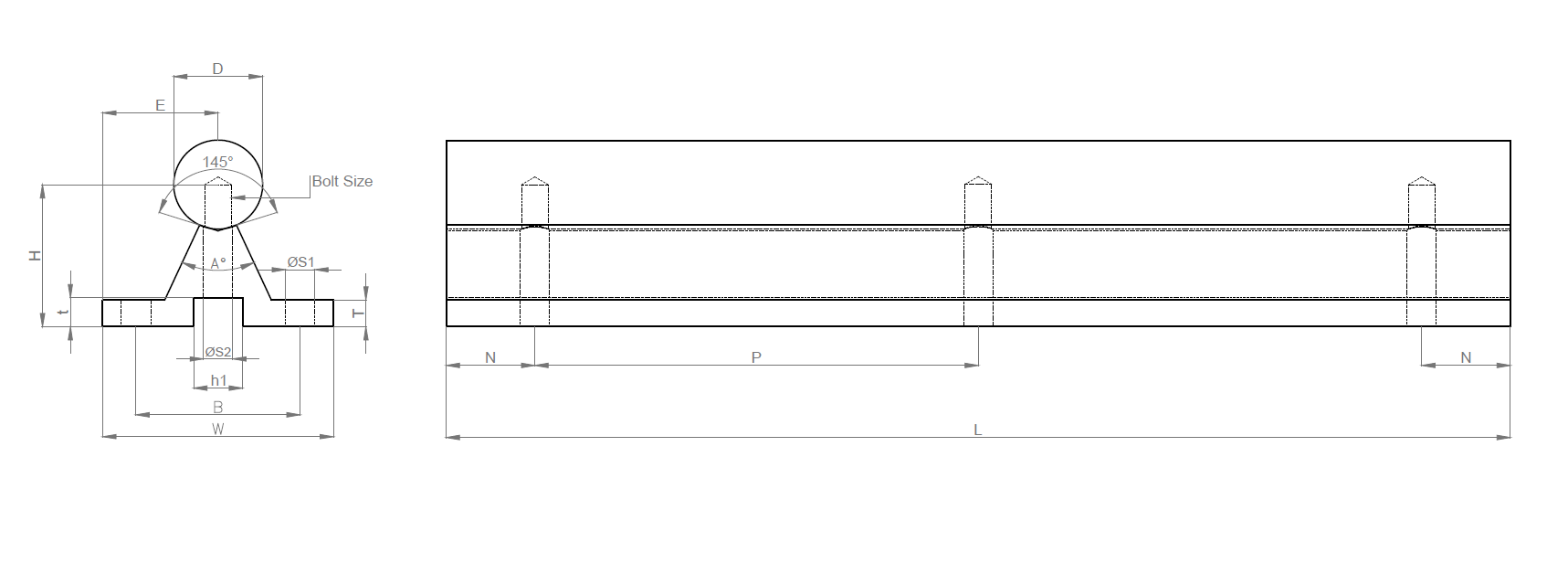

JLS JSWSP-E dimension sketch — Dimension sketch · open to enlarge

JSWSP-E
Model No.	Shaft Dia D	H(± 0.2)	E	W(± 0.2)	L	T(± 0.1)	A	B	N	P	S 2	S 1	h 1 (± 0.1)	t	Bolt Size	Drawing
JSWSP 12 E	12	22	20	40	4000	5	50	29	12.5	75	4.5	4.5	8	4.5	M4X20	—
JSWSP 16 E	16	26	22.5	45	4000	5	50	33	50	150	5.5	5.5	9.5	6	M5X20	—
JSWSP 20 E	20	32	26	52	4000	6	50	37	50	150	6.6	6.6	11	6.5	M6X25	—
JSWSP 25 E	25	36	28.5	57	4000	6	50	42	100	200	9	6.6	14	8.5	M8X27	—
JSWSP 30 E	30	42	34.5	69	4000	7	50	51	100	200	11	9	17	10.5	M10X30	—
JSWSP 40 E	40	50	36.5	73	4000	8	50	55	50	300	11	9	17	10.5	M10X39	—
JSWSP 50 E	50	60	42	84	4000	9	46	63	50	300	13	11	19	12.5	M12X47	—
JSWSP 60 E	60	68	47	94	4000	10	46	72	50	300	15	11	22	13	M14X50	—
JSWSP 80 E	80	86	58	116	4000	12	46	92	50	300	17	12	25	15	M16X60	—

JLS

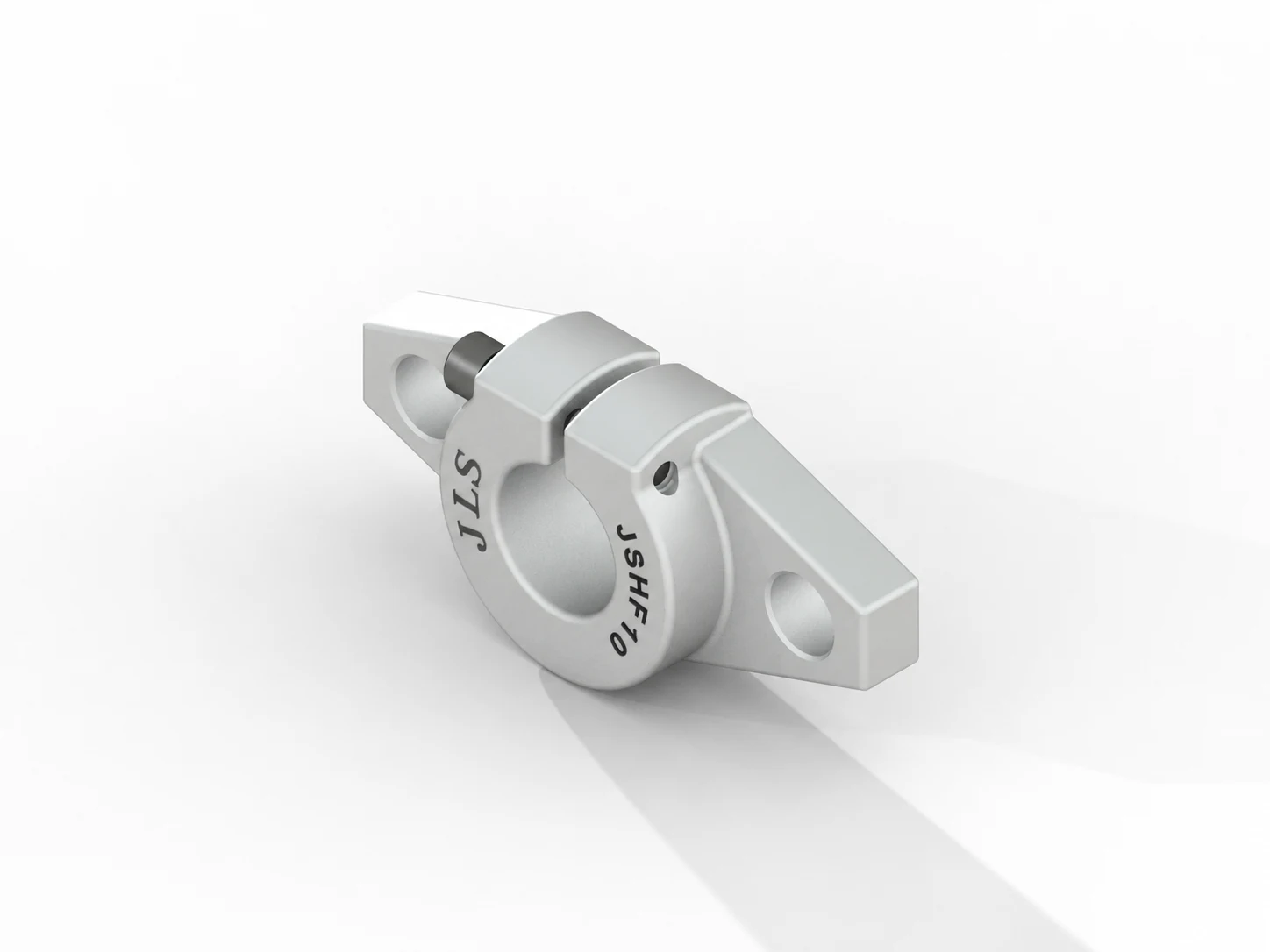

JSHF

Shaft Supports · JSHF. Choose the full model marking and mounting format for your machine.11 models / configurationsView specs

Shaft Supports · JSHF. Choose the full model marking and mounting format for your machine.

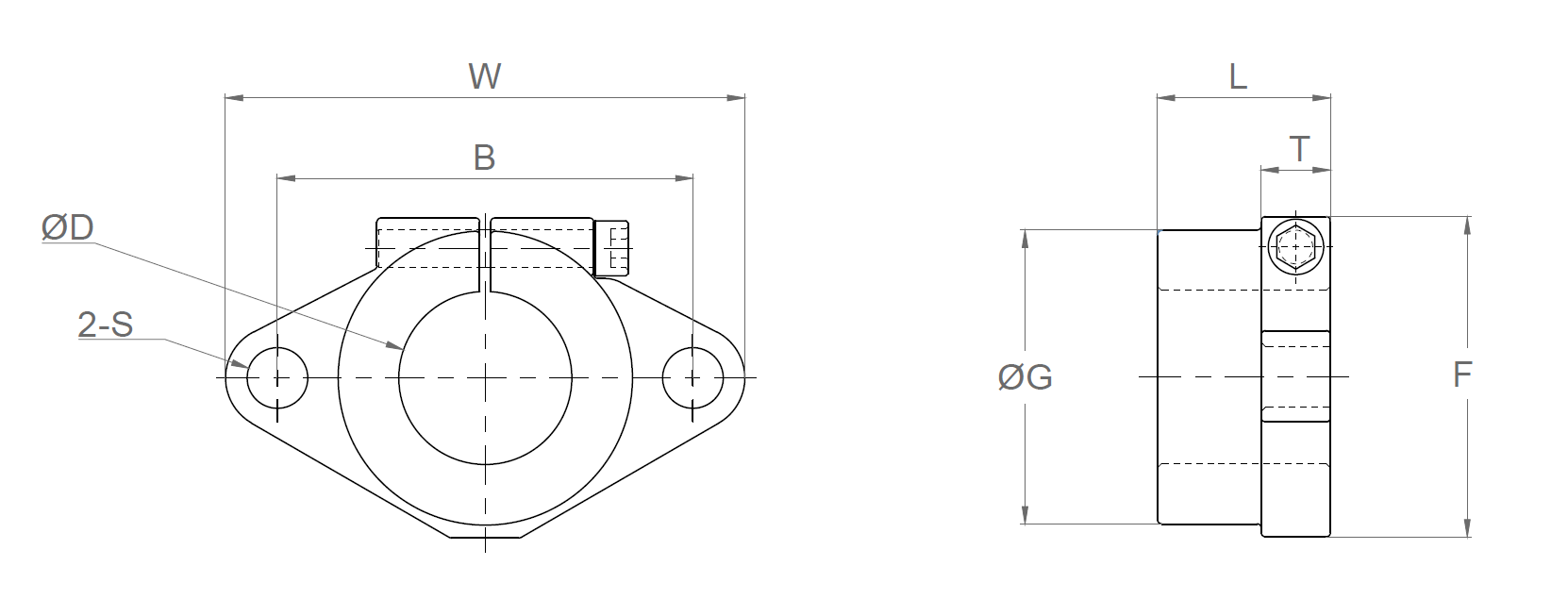

JLS JSHF dimension sketch — Dimension sketch · open to enlarge

JSHF
Model No.	W	L	T	F	G	B	S	Adjusting Bolt Size	Weight (g)	Drawing
JSHF 10	43	10	5	24	20	32	5.5(M5)	M4	13	—
JSHF 12	47	13	7	28	25	36	5.5(M5)	M4	20	—
JSHF 13	47	13	7	28	25	36	5.5(M5)	M4	20	—
JSHF 16	50	16	8	31	28	40	5.5(M5)	M4	27	—
JSHF 20	60	20	8	37	34	48	7(M6)	M5	40	—
JSHF 25	70	22	10	42	40	56	7(M6)	M6	60	—
JSHF 30	80	30	12	50	46	64	9(M8)	M6	110	—
JSHF 35	92	35	14	58	50	72	12(M10)	M8	380	—
JSHF 40	102	40	16	67	56	80	12(M10)	M10	510	—
JSHF 50	122	50	19	83	70	96	14(M12)	M12	890	—
JSHF 60	140	60	23	95	82	112	14(M12)	M12	1500	—

JLS

JSK

Shaft Supports · JSK. Choose the full model marking and mounting format for your machine.12 models / configurationsView specs

Shaft Supports · JSK. Choose the full model marking and mounting format for your machine.

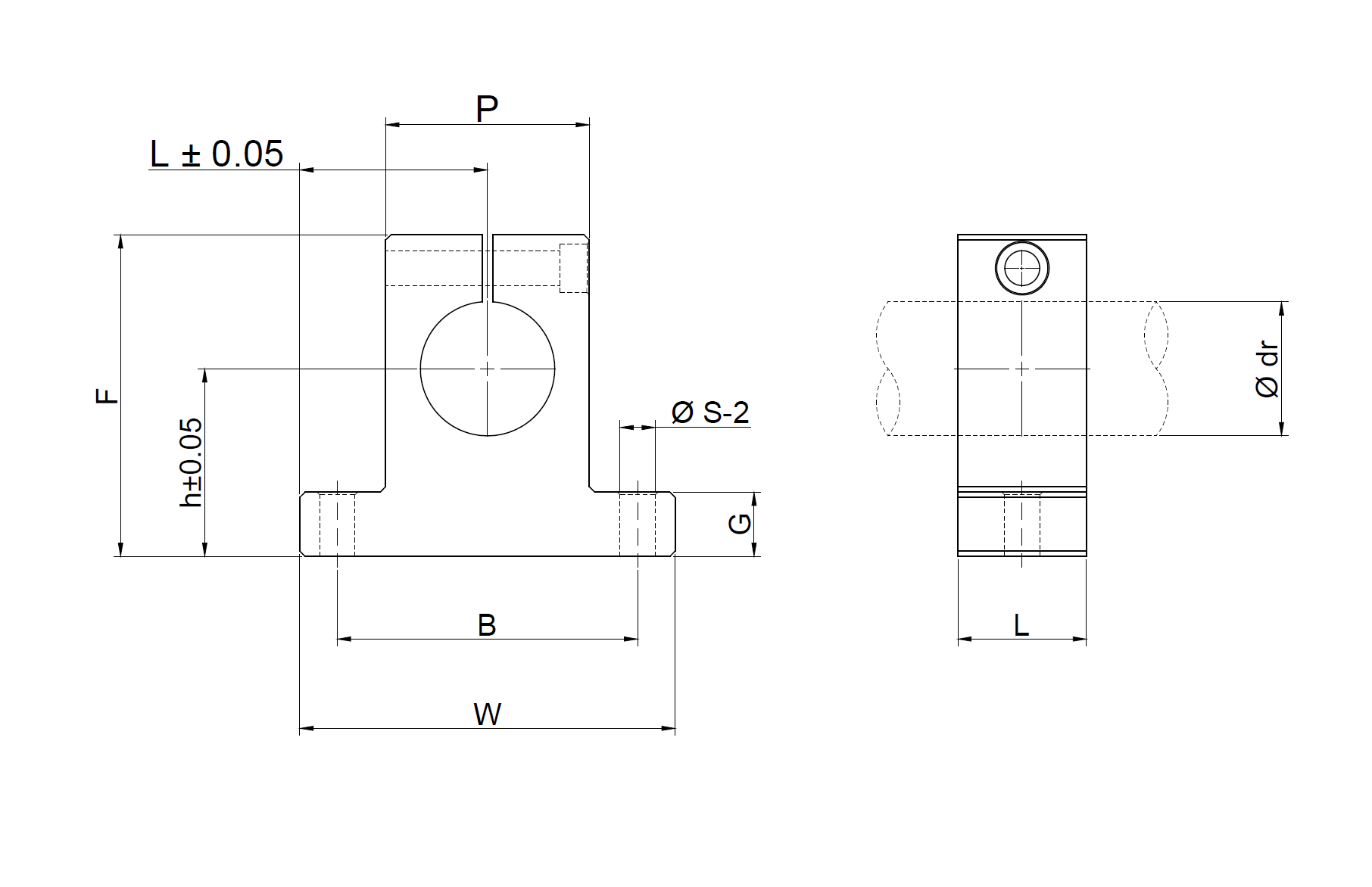

JLS JSK dimension sketch — Dimension sketch · open to enlarge

JSK
Model No.	h	E	W	L	F	G	P	B	S	Clamping Bolt	Mounting Bolt	Weight (g)	Drawing
JSK 8	20	21	42	14	32.8	6	18	32	5.5	M4	M5	24	—
JSK 10	20	21	42	14	32.8	6	18	32	5.5	M4	M5	24	—
JSK 12	23	21	42	14	37.5	6	20	32	5.5	M4	M5	30	—
JSK 13	23	21	42	14	37.5	6	20	32	5.5	M4	M5	30	—
JSK 16	27	24	48	16	44	8	25	38	5.5	M4	M5	40	—
JSK 20	31	30	60	20	51	10	30	45	6.6	M5	M6	70	—
JSK 25	35	35	70	24	60	12	38	56	6.6	M6	M6	130	—
JSK 30	42	42	84	28	70	12	44	64	9	M6	M8	180	—
JSK 35	50	49	98	32	82	15	50	74	11	M8	M10	270	—
JSK 40	60	57	114	36	96	15	60	90	11	M8	M10	420	—
JSK 50	70	63	126	40	120	18	74	100	14	M12	M12	750	—
JSK 60	80	74	148	45	136	18	90	120	14	M12	M12	1,100	—

Cross Roller Guides8 families

JLS

JRW1 / JRW2

Cross Roller Guides · JRW1 / JRW2. Choose the full model marking and mounting format for your machine.18 models / configurationsView specs

Cross Roller Guides · JRW1 / JRW2. Choose the full model marking and mounting format for your machine.

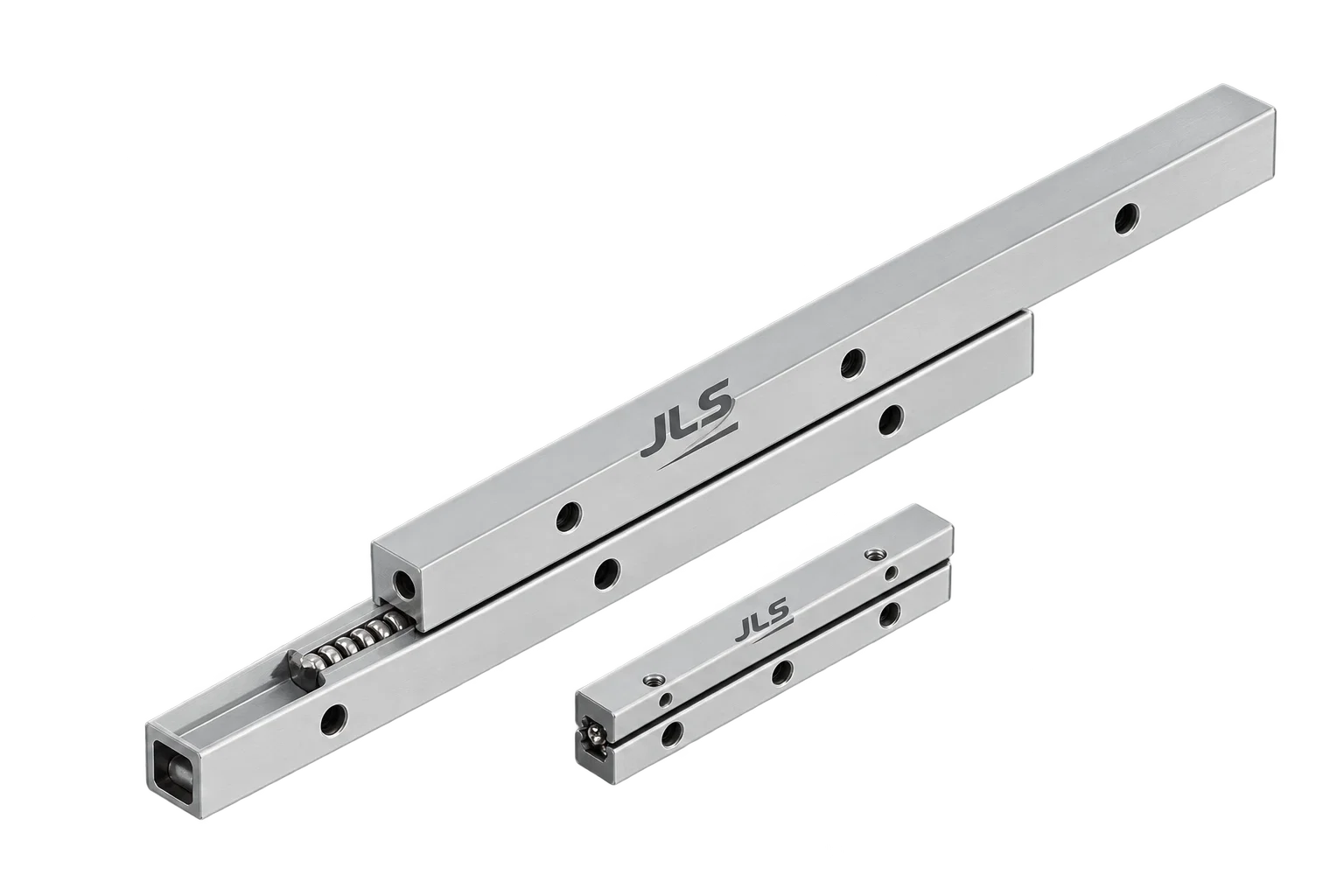

JLS JRW1 / JRW2 dimension sketch — Dimension sketch · open to enlarge

JRW1 / JRW2
Model No.	Stroke	M	A	Lo	n X F	G	B	C	S	d	Z	Drawing
JRW1-20X5Z	12	8.5	4	20	1X10	5	3.9	1.8	M2x0.4	1.65	5	Drawing PDF ↗
JRW1-30X7Z	22	8.5	4	30	2X10	5	3.9	1.8	M2x0.4	1.65	7	Drawing PDF ↗
JRW1-40X10Z	37	8.5	4	40	3X10	5	3.9	1.8	M2x0.4	1.65	10	Drawing PDF ↗
JRW1-50X13Z	32	8.5	4	50	4X10	5	3.9	1.8	M2x0.4	1.65	13	Drawing PDF ↗
JRW1-60X16Z	37	8.5	4	60	5X10	5	3.9	1.8	M2x0.4	1.65	16	Drawing PDF ↗
JRW1-70X19Z	42	8.5	4	70	6X10	5	3.9	1.8	M2x0.4	1.65	19	Drawing PDF ↗
JRW1-80X21Z	52	8.5	4	80	7X10	5	3.9	1.8	M2x0.4	1.65	21	Drawing PDF ↗
JRW2-30X5Z	18	12	6	30	1X15	7.5	5.5	2.5	M3x0.5	2.55	5	Drawing PDF ↗
JRW2-45X8Z	24	12	6	45	2X15	7.5	5.5	2.5	M3x0.5	2.55	8	Drawing PDF ↗
JRW2-60X11Z	30	12	6	60	3X15	7.5	5.5	2.5	M3x0.5	2.55	11	Drawing PDF ↗
JRW2-75X13Z	44	12	6	75	4X15	7.5	5.5	2.5	M3x0.5	2.55	13	Drawing PDF ↗
JRW2-90X16Z	50	12	6	90	5X15	7.5	5.5	2.5	M3x0.5	2.55	16	Drawing PDF ↗
JRW2-105X18Z	64	12	6	105	6X15	7.5	5.5	2.5	M3x0.5	2.55	18	Drawing PDF ↗
JRW2-120X21Z	70	12	6	120	7X15	7.5	5.5	2.5	M3x0.5	2.55	21	Drawing PDF ↗
JRW2-135X23Z	84	12	6	135	8X15	7.5	5.5	2.5	M3x0.5	2.55	23	Drawing PDF ↗
JRW2-150X26Z	90	12	6	150	9X15	7.5	5.5	2.5	M3x0.5	2.55	26	Drawing PDF ↗
JRW2-165X29Z	96	12	6	165	10X15	7.5	5.5	2.5	M3x0.5	2.55	29	Drawing PDF ↗
JRW2-180X32Z	102	12	6	180	11X15	7.5	5.5	2.5	M3x0.5	2.55	32	Drawing PDF ↗

JLS

JRW3 / JRW4

Cross Roller Guides · JRW3 / JRW4. Choose the full model marking and mounting format for your machine.22 models / configurationsView specs

Cross Roller Guides · JRW3 / JRW4. Choose the full model marking and mounting format for your machine.

JLS JRW3 / JRW4 dimension sketch — Dimension sketch · open to enlarge

JRW3 / JRW4
Model No.	Stroke	M	A	Lo	n X F	G	B	C	S	d	Z	Drawing
JRW3-50X7Z	28	18	8	50	1X25	12.5	8.3	3.5	M4x0.7	3.3	7	Drawing PDF ↗
JRW3-75X10Z	48	18	8	75	2X25	12.5	8.3	3.5	M4x0.7	3.3	10	Drawing PDF ↗
JRW3-100X14Z	58	18	8	100	3X25	12.5	8.3	3.5	M4x0.7	3.3	14	Drawing PDF ↗
JRW3-125X17Z	78	18	8	125	4X25	12.5	8.3	3.5	M4x0.7	3.3	14	Drawing PDF ↗
JRW3-150X21Z	88	18	8	150	5X25	12.5	8.3	3.5	M4x0.7	3.3	21	Drawing PDF ↗
JRW3-175X24Z	108	18	8	175	6X25	12.5	8.3	3.5	M4x0.7	3.3	24	Drawing PDF ↗
JRW3-200X28Z	118	18	8	200	7X25	12.5	8.3	3.5	M4x0.7	3.3	28	Drawing PDF ↗
JRW3-225X31Z	138	18	8	225	8X25	12.5	8.3	3.5	M4x0.7	3.3	31	Drawing PDF ↗
JRW3-250X35Z	148	18	8	250	9X25	12.5	8.3	3.5	M4x0.7	3.3	35	Drawing PDF ↗
JRW3-275X38Z	168	18	8	275	10X25	12.5	8.3	3.5	M4x0.7	3.3	38	Drawing PDF ↗
JRW3-300X42Z	178	18	8	300	11X25	12.5	8.3	3.5	M4x0.7	3.3	42	Drawing PDF ↗
JRW4-80X7Z	58	22	11	80	1X40	20	10	4.5	M5x0.8	4.3	7	Drawing PDF ↗
JRW4-120X11Z	82	22	11	120	2X40	20	10	4.5	M5x0.8	4.3	11	Drawing PDF ↗
JRW4-160X15Z	106	22	11	160	3X40	20	10	4.5	M5x0.8	4.3	15	Drawing PDF ↗
JRW4-200X19Z	130	22	11	200	4X40	20	10	4.5	M5x0.8	4.3	19	Drawing PDF ↗
JRW4-240X23Z	154	22	11	240	5X40	20	10	4.5	M5x0.8	4.3	23	Drawing PDF ↗
JRW4-280X27Z	178	22	11	280	6X40	20	10	4.5	M5x0.8	4.3	27	Drawing PDF ↗
JRW4-320X31Z	202	22	11	320	7X40	20	10	4.5	M5x0.8	4.3	31	Drawing PDF ↗
JRW4-360X35Z	226	22	11	360	8X40	20	10	4.5	M5x0.8	4.3	35	Drawing PDF ↗
JRW4-400X39Z	250	22	11	400	9X40	20	10	4.5	M5x0.8	4.3	39	Drawing PDF ↗
JRW4-440X43Z	274	22	11	440	10X40	20	10	4.5	M5x0.8	4.3	43	Drawing PDF ↗
JRW4-480X47Z	298	22	11	480	11X40	20	10	4.5	M5x0.8	4.3	47	Drawing PDF ↗

JLS

JRW6 / JRW9

Cross Roller Guides · JRW6 / JRW9. Choose the full model marking and mounting format for your machine.22 models / configurationsView specs

Cross Roller Guides · JRW6 / JRW9. Choose the full model marking and mounting format for your machine.

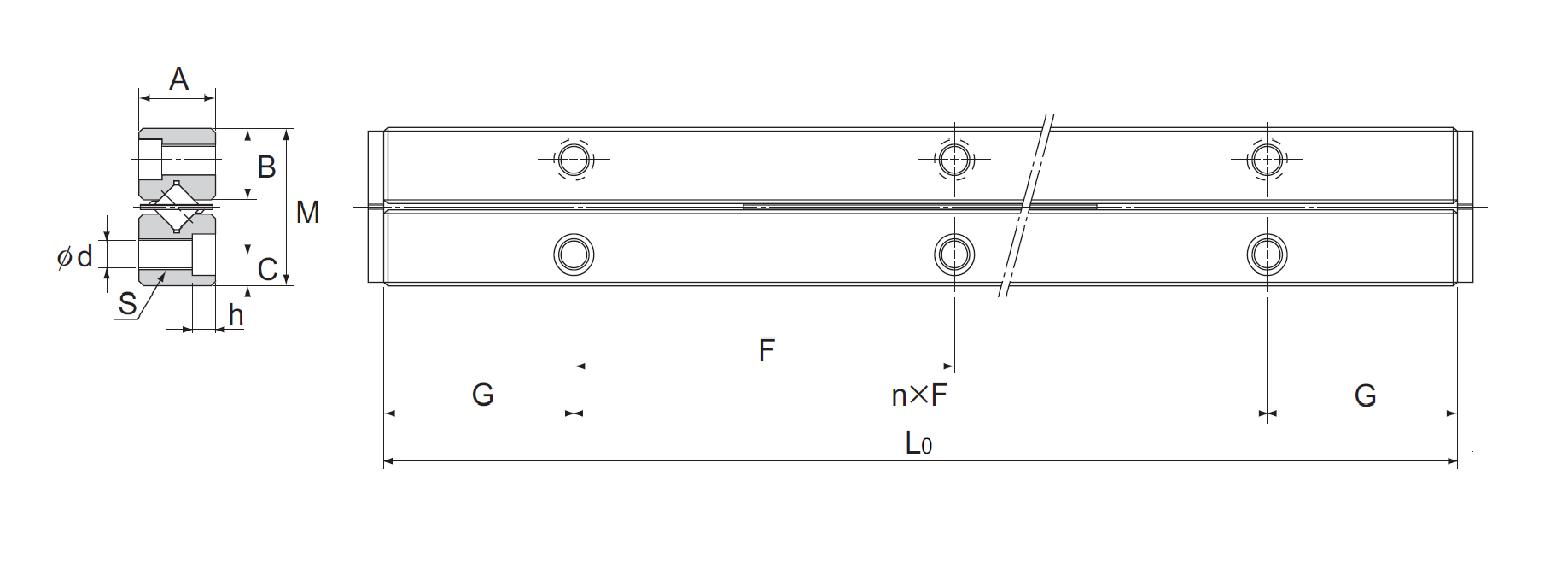

JLS JRW6 / JRW9 dimension sketch — Dimension sketch · open to enlarge

JRW6 / JRW9
Model No.	Stroke	M	A	Lo	n X F	G	B	C	S	d	Z	Drawing
JRW6-100X7Z	56	30	15	100	1X50	25	13.6	6	M6x1	5.2	7	Drawing PDF ↗
JRW6-150X10Z	96	30	15	150	2X50	25	13.6	6	M6x1	5.2	10	Drawing PDF ↗
JRW6-200X13Z	136	30	15	200	3X50	25	13.6	6	M6x1	5.2	13	Drawing PDF ↗
JRW6-250X17Z	156	30	15	250	4X50	25	13.6	6	M6x1	5.2	17	Drawing PDF ↗
JRW6-300X20Z	196	30	15	300	5X50	25	13.6	6	M6x1	5.2	20	Drawing PDF ↗
JRW6-350X24Z	216	30	15	350	6X50	25	13.6	6	M6x1	5.2	24	Drawing PDF ↗
JRW6-400X27Z	256	30	15	400	7X50	25	13.6	6	M6x1	5.2	27	Drawing PDF ↗
JRW6-450X31Z	276	30	15	450	8X50	25	13.6	6	M6x1	5.2	31	Drawing PDF ↗
JRW6-500X34Z	316	30	15	500	9X50	25	13.6	6	M6x1	5.2	34	Drawing PDF ↗
JRW6-550X38Z	336	30	15	550	10X50	25	13.6	6	M6x1	5.2	38	Drawing PDF ↗
JRW6-600X41Z	376	30	15	600	11X50	25	13.6	6	M6x1	5.2	41	Drawing PDF ↗
JRW9-200X10Z	118	40	20	200	1X100	50	19.2	8	M8x1.25	6.8	10	Drawing PDF ↗
JRW9-300X15Z	178	40	20	300	2X100	50	19.2	8	M8x1.25	6.8	15	Drawing PDF ↗
JRW9-400X20Z	238	40	20	400	3X100	50	19.2	8	M8x1.25	6.8	20	Drawing PDF ↗
JRW9-500X25Z	298	40	20	500	4X100	50	19.2	8	M8x1.25	6.8	25	Drawing PDF ↗
JRW9-600X30Z	358	40	20	600	5X100	50	19.2	8	M8x1.25	6.8	30	Drawing PDF ↗
JRW9-700X35Z	418	40	20	700	6X100	50	19.2	8	M8x1.25	6.8	35	Drawing PDF ↗
JRW9-800X40Z	478	40	20	800	7X100	50	19.2	8	M8x1.25	6.8	40	Drawing PDF ↗
JRW9-900X45Z	538	40	20	900	8X100	50	19.2	8	M8x1.25	6.8	45	Drawing PDF ↗
JRW9-1000X50Z	598	40	20	1000	9X100	50	19.2	8	M8x1.25	6.8	50	Drawing PDF ↗
JRW9-1100X55Z	658	40	20	1100	10X100	50	19.2	8	M8x1.25	6.8	55	Drawing PDF ↗
JRW9-1200X60Z	718	40	20	1200	11X100	50	19.2	8	M8x1.25	6.8	60	Drawing PDF ↗

JLS

JRW6-E / JRW9-E

Cross Roller Guides · JRW6-E / JRW9-E. Choose the full model marking and mounting format for your machine.22 models / configurationsView specs

Cross Roller Guides · JRW6-E / JRW9-E. Choose the full model marking and mounting format for your machine.

JLS JRW6-E / JRW9-E dimension sketch — Dimension sketch · open to enlarge

JRW6-E / JRW9-E
Model No.	Stroke	M	A	Lo	n X F	G	B	C	S	d	Z	Drawing
JRW6-100X8Z-E	56	31	15	100	1X50	25	14	6	M6x1	5.2	8	Drawing PDF ↗
JRW6-150X12Z-E	96	31	15	150	2X50	25	14	6	M6x1	5.2	12	Drawing PDF ↗
JRW6-200X16Z-E	136	31	15	200	3X50	25	14	6	M6x1	5.2	16	Drawing PDF ↗
JRW6-250X20Z-E	156	31	15	250	4X50	25	14	6	M6x1	5.2	20	Drawing PDF ↗
JRW6-300X24Z-E	196	31	15	300	5X50	25	14	6	M6x1	5.2	24	Drawing PDF ↗
JRW6-350X28Z-E	216	31	15	350	6X50	25	14	6	M6x1	5.2	28	Drawing PDF ↗
JRW6-400X32Z-E	256	31	15	400	7X50	25	14	6	M6x1	5.2	32	Drawing PDF ↗
JRW6-450X36Z-E	276	31	15	450	8X50	25	14	6	M6x1	5.2	36	Drawing PDF ↗
JRW6-500X40Z-E	316	31	15	500	9X50	25	14	6	M6x1	5.2	40	Drawing PDF ↗
JRW6-550X44Z-E	336	31	15	550	10X50	25	14	6	M6x1	5.2	44	Drawing PDF ↗
JRW6-600X48Z-E	376	31	15	600	11X50	25	14	6	M6x1	5.2	48	Drawing PDF ↗
JRW9-200X10Z-E	118	44	22	200	1X100	50	207	9	M8x1.25	6.8	10	Drawing PDF ↗
JRW9-300X15Z-E	178	44	22	300	2X100	50	207	9	M8x1.25	6.8	15	Drawing PDF ↗
JRW9-400X20Z-E	238	44	22	400	3X100	50	207	9	M8x1.25	6.8	20	Drawing PDF ↗
JRW9-500X25Z-E	298	44	22	500	4X100	50	207	9	M8x1.25	6.8	25	Drawing PDF ↗
JRW9-600X30Z-E	358	44	22	600	5X100	50	207	9	M8x1.25	6.8	30	Drawing PDF ↗
JRW9-700X35Z-E	418	44	22	700	6X100	50	207	9	M8x1.25	6.8	35	Drawing PDF ↗
JRW9-800X40Z-E	478	44	22	800	7X100	50	207	9	M8x1.25	6.8	40	Drawing PDF ↗
JRW9-900X45Z-E	538	44	22	900	8X100	50	207	9	M8x1.25	6.8	45	Drawing PDF ↗
JRW9-1000X50Z-E	598	44	22	1000	9X100	50	207	9	M8x1.25	6.8	50	Drawing PDF ↗
JRW9-1100X55Z-E	658	44	22	1100	10X100	50	207	9	M8x1.25	6.8	55	Drawing PDF ↗
JRW9-1200X60Z-E	718	44	22	1200	11X100	50	207	9	M8x1.25	6.8	60	Drawing PDF ↗

JLS

JRW12 / JRW15

Cross Roller Guides · JRW12 / JRW15. Choose the full model marking and mounting format for your machine.21 models / configurationsView specs

Cross Roller Guides · JRW12 / JRW15. Choose the full model marking and mounting format for your machine.

JLS JRW12 / JRW15 dimension sketch — Dimension sketch · open to enlarge

JRW12 / JRW15
Model No.	Stroke	M	A	Lo	n X F	G	B	C	S	d	Z	Drawing
JRW12-200X7Z	110	58	28	200	1X100	50	28	12	M10x1.5	8.5	7	Drawing PDF ↗
JRW12-300X10Z	190	58	28	300	2X100	50	28	12	M10x1.5	8.5	10	Drawing PDF ↗
JRW12-400X14Z	230	58	28	400	3X100	50	28	12	M10x1.5	8.5	14	Drawing PDF ↗
JRW12-500X17Z	310	58	28	500	4X100	50	28	12	M10x1.5	8.5	17	Drawing PDF ↗
JRW12-600X21Z	350	58	28	600	5X100	50	28	12	M10x1.5	8.5	21	Drawing PDF ↗
JRW12-700X24Z	430	58	28	700	6X100	50	28	12	M10x1.5	8.5	24	Drawing PDF ↗
JRW12-800X28Z	470	58	28	800	7X100	50	28	12	M10x1.5	8.5	28	Drawing PDF ↗
JRW12-900X31Z	550	58	28	900	8X100	50	28	12	M10x1.5	8.5	31	Drawing PDF ↗
JRW12-1000X34Z	630	58	28	1000	9X100	50	28	12	M10x1.5	8.5	34	Drawing PDF ↗
JRW12-1100X38Z	670	58	28	1100	10X100	50	28	12	M10x1.5	8.5	38	Drawing PDF ↗
JRW12-1200X41Z	750	58	28	1200	11X100	50	28	12	M10x1.5	8.5	41	Drawing PDF ↗
JRW15-300X8Z	190	71	36	300	2X100	50	34.4	14	M12x1.75	10.5	8	Drawing PDF ↗
JRW15-400X11Z	240	71	36	400	3X100	50	34.4	14	M12x1.75	10.5	11	Drawing PDF ↗
JRW15-500X13Z	340	71	36	500	4X100	50	34.4	14	M12x1.75	10.5	13	Drawing PDF ↗
JRW15-600X16Z	390	71	36	600	5X100	50	34.4	14	M12x1.75	10.5	13	Drawing PDF ↗
JRW15-700X19Z	440	71	36	700	6X100	50	34.4	14	M12x1.75	10.5	19	Drawing PDF ↗
JRW15-800X22Z	490	71	36	800	7X100	50	34.4	14	M12x1.75	10.5	22	Drawing PDF ↗
JRW15-900X25Z	540	71	36	900	8X100	50	34.4	14	M12x1.75	10.5	25	Drawing PDF ↗
JRW15-1000X27Z	640	71	36	1000	9X100	50	34.4	14	M12x1.75	10.5	27	Drawing PDF ↗
JRW15-1100X30Z	690	71	36	1100	10X100	50	34.4	14	M12x1.75	10.5	30	Drawing PDF ↗
JRW15-1200X33Z	740	71	36	1200	11X100	50	34.4	14	M12x1.75	10.5	33	Drawing PDF ↗

JLS

JRW18

Cross Roller Guides · JRW18. Choose the full model marking and mounting format for your machine.10 models / configurationsView specs

Cross Roller Guides · JRW18. Choose the full model marking and mounting format for your machine.

JLS JRW18 dimension sketch — Dimension sketch · open to enlarge

JRW18
Model No.	Stroke	M	A	Lo	n X F	G	B	C	S	d	Z	Drawing
JRW18-300X6Z	228	83	40	300	2X100	50	40.2	18	M14x2	12.5	6	Drawing PDF ↗
JRW18-400X9Z	248	83	40	400	3X100	50	40.2	18	M14x2	12.5	9	Drawing PDF ↗
JRW18-500X11Z	328	83	40	500	4X100	50	40.2	18	M14x2	12.5	11	Drawing PDF ↗
JRW18-600X13Z	408	83	40	600	5X100	50	40.2	18	M14x2	12.5	13	Drawing PDF ↗
JRW18-700X16Z	428	83	40	700	6X100	50	40.2	18	M14x2	12.5	16	Drawing PDF ↗
JRW18-800X18Z	508	83	40	800	7X100	50	40.2	18	M14x2	12.5	18	Drawing PDF ↗
JRW18-900X20Z	588	83	40	900	8X100	50	40.2	18	M14x2	12.5	20	Drawing PDF ↗
JRW18-1000X23Z	608	83	40	1000	9X100	50	40.2	18	M14x2	12.5	23	Drawing PDF ↗
JRW18-1100X25Z	688	83	40	1100	10X100	50	40.2	18	M14x2	12.5	25	Drawing PDF ↗
JRW18-1200X27Z	768	83	40	1200	11X100	50	40.2	18	M14x2	12.5	27	Drawing PDF ↗

JLS

JRU

Cross Roller Guides · JRU. Choose the full model marking and mounting format for your machine.14 models / configurationsView specs

Cross Roller Guides · JRU. Choose the full model marking and mounting format for your machine.

JLS JRU dimension sketch — Dimension sketch · open to enlarge

JRU
Model No.	Stroke	W	M	L	B	nxF	G	S	B1	n 1 xF 1	S 1 xl	dxDxH	D1	B 2	f 1	f 2	g	Z	kN(C)	kN(Co)	M A (N.m)	M B (N.m)	M C (N.m)	ΔC	ΔD	Drawing
JRU 1025	12	30	17	25	10	-	12.5	M2	18.4	1x10	M2x4	2.55x4.1x2.5	4.1	22	18	-	3.5	5	0.28	0.27	0.75	0.46	1.24	2	4	Drawing PDF ↗
JRU 1035	18	30	17	35	10	1x10	12.5	M2	18.4	2x10	M2x4	2.55x4.1x2.5	4.1	22	28	-	3.5	7	0.38	0.41	1.23	0.85	1.85	2	4	Drawing PDF ↗
JRU 1045	25	30	17	45	10	2x10	12.5	M2	18.4	3x10	M2x4	2.55x4.1x2.5	4.1	22	38	-	3.5	10	0.56	0.69	2.18	1.67	3.09	2	4	Drawing PDF ↗
JRU 1055	32	30	17	55	10	3x10	12.5	M2	18.4	4x10	M2x4	2.55x4.1x2.5	4.1	22	48	28	3.5	12	0.65	0.82	2.97	2.35	3.71	2	5	Drawing PDF ↗
JRU 1065	12	30	17	25	10	4x10	12.5	M2	18.4	5x10	M2x4	2.55x4.1x2.5	4.1	22	18	-	3.5	5	0.28	0.27	0.75	0.46	1.24	2	4	Drawing PDF ↗
JRU 1075	12	30	17	25	10	5x10	12.5	M2	18.4	6x10	M2x4	2.55x4.1x2.5	4.1	22	18	-	3.5	5	0.28	0.27	0.75	0.46	1.24	2	4	Drawing PDF ↗
JRU 1085	12	30	17	25	10	6x10	12.5	M2	18.4	7x10	M2x4	2.55x4.1x2.5	4.1	22	18	-	3.5	5	0.28	0.27	0.75	0.46	1.24	2	4	Drawing PDF ↗
JRU 2035	12	30	17	25	10	-	12.5	M2	18.4	1x15	M2x4	2.55x4.1x2.5	4.1	22	18	-	3.5	5	0.28	0.27	0.75	0.46	1.24	2	4	Drawing PDF ↗
JRU 2050	12	30	17	25	10	1x15	12.5	M2	18.4	2x15	M2x4	2.55x4.1x2.5	4.1	22	18	-	3.5	5	0.28	0.27	0.75	0.46	1.24	2	4	Drawing PDF ↗
JRU 2065	12	30	17	25	10	2x15	12.5	M2	18.4	3x15	M2x4	2.55x4.1x2.5	4.1	22	18	-	3.5	5	0.28	0.27	0.75	0.46	1.24	2	4	Drawing PDF ↗
JRU 2080	12	30	17	25	10	3x15	12.5	M2	18.4	4x15	M2x4	2.55x4.1x2.5	4.1	22	18	-	3.5	5	0.28	0.27	0.75	0.46	1.24	2	4	Drawing PDF ↗
JRU 2095	12	30	17	25	10	4x15	12.5	M2	18.4	5x15	M2x4	2.55x4.1x2.5	4.1	22	18	-	3.5	5	0.28	0.27	0.75	0.46	1.24	2	4	Drawing PDF ↗
JRU 2110	12	30	17	25	10	5x15	12.5	M2	18.4	6x15	M2x4	2.55x4.1x2.5	4.1	22	18	-	3.5	5	0.28	0.27	0.75	0.46	1.24	2	4	Drawing PDF ↗
JRU 2125	12	30	17	25	10	6x15	12.5	M2	18.4	7x15	M2x4	2.55x4.1x2.5	4.1	22	18	-	3.5	5	0.28	0.27	0.75	0.46	1.24	2	4	Drawing PDF ↗

JLS

JRT

Cross Roller Guides · JRT. Choose the full model marking and mounting format for your machine.21 models / configurationsView specs

Cross Roller Guides · JRT. Choose the full model marking and mounting format for your machine.

JLS JRT dimension sketch — Dimension sketch · open to enlarge

JRT
Model No.	Stroke	W	M	L	g	B	nxF	G	S	n 1 xF 1	B1	D1	G1	T	T1	H	W 1	A	m	S 1	n 1 xf 1	g 1	Z	kN(C)	kN(Co)	M A (N.m)	M B (N.m)	M C (N.m)	ΔC	ΔD	Drawing
JRT 1025	12	20	8	25	23	14	1x18	3.5	M2.6	1x10	12.4	4.1	7.5	7.5	3.5	4	6.6	5.5	M2	M2.6	2x7.5	5	5	0.28	0.27	0.75	0.46	0.69	2	4	Drawing PDF ↗
JRT 1035	18	20	8	25	23	14	1x28	3.5	M2.6	2x10	12.4	4.1	7.5	7.5	3.5	4	6.6	5.5	M2	M2.6	2x10	7.5	7	0.38	0.41	1.23	0.85	1.03	2	4	Drawing PDF ↗
JRT 1045	25	20	8	45	42	14	1x20	12.5	M2.6	3x10	12.4	4.1	7.5	7.5	3.5	4	6.6	5.5	M2	M2.6	3x10	7.5	10	0.56	0.69	2.18	1.67	1.72	2	5	Drawing PDF ↗
JRT 1055	32	20	8	55	52	14	1x30	12.5	M2.6	4x10	12.4	4.1	7.5	7.5	3.5	4	6.6	5.5	M2	M2.6	4x10	7.5	12	0.65	0.82	2.97	2.35	2.06	2	5	Drawing PDF ↗
JRT 1065	40	20	8	65	62	14	2x20	12.5	M2.6	5x10	12.4	4.1	7.5	7.5	3.5	4	6.6	5.5	M2	M2.6	5x10	7.5	14	0.73	0.96	3.87	3.17	2.4	2	5	Drawing PDF ↗
JRT 1075	45	20	8	75	72	14	1x30	22.5	M2.6	6x10	12.4	4.1	7.5	7.5	3.5	4	6.6	5.5	M2	M2.6	6x10	7.5	18	0.87	1.27	6.05	5.16	3.19	2	5	Drawing PDF ↗
JRT 1085	50	20	8	85	82	14	2x30	12.5	M2.6	7x10	12.4	4.1	7.5	7.5	3.5	4	6.6	5.5	M2	M2.6	7x10	7.5	20	0.94	1.37	7.32	6.37	3.43	2	5	Drawing PDF ↗
JRT 2035	18	30	12	35	78	22	1x28	3.5	M3	1x15	20	6	10	11.5	5.5	6	12	8.5	M2	M3	1x20	10	5	0.51	0.51	2.29	1.37	2.21	2	4	Drawing PDF ↗
JRT 2050	30	30	12	50	113	22	1x43	3.5	M3	2x15	20	6	10	11.5	5.5	6	12	8.5	M2	M3	2x15	10	7	0.69	0.76	3.76	2.65	3.32	2	4	Drawing PDF ↗
JRT 2065	40	30	12	65	147	22	1x30	17.5	M3	3x15	20	6	10	11.5	5.5	6	12	8.5	M2	M3	3x15	10	9	0.85	0.98	5.62	4.22	4.25	2	5	Drawing PDF ↗
JRT 2080	50	30	12	80	184	22	1x45	17.5	M3	4x15	20	6	10	11.5	5.5	6	12	8.5	M2	M3	4x15	10	12	0.98	1.27	9.1	7.26	5.52	2	5	Drawing PDF ↗
JRT 2095	60	30	12	95	220	22	2x30	17.5	M3	5x15	20	6	10	11.5	5.5	6	12	8.5	M2	M3	5x15	10	14	1.18	1.57	11.8	9.71	6.8	2	5	Drawing PDF ↗
JRT 2110	70	30	12	110	257	22	1x45	32.5	M3	6x15	20	6	10	11.5	5.5	6	12	8.5	M2	M3	6x15	10	17	1.47	2.06	16.7	14.1	8.93	2	5	Drawing PDF ↗
JRT 2125	80	30	12	125	290	22	2x45	17.5	M3	7x15	20	6	10	11.5	5.5	6	12	8.5	M2	M3	7x15	10	19	1.57	2.25	20.4	17.5	9.77	2	5	Drawing PDF ↗
JRT 3055	30	40	16	55	229	30	1x40	7.5	M4	1x25	28.4	7.5	1.5	15.5	7.5	8	16	11.5	M2	M4	1x25	15	6	1.27	1.37	9.85	6.57	7.97	2	5	Drawing PDF ↗
JRT 3080	45	40	16	80	336	30	1x65	7.5	M4	2x25	28.4	7.5	1.5	15.5	7.5	8	16	11.5	M2	M4	2x25	15	10	2.16	2.84	22.2	17	16.5	2	5	Drawing PDF ↗
JRT 3105	60	40	16	105	442	30	1x50	27.5	M4	3x25	28.4	7.5	1.5	15.5	7.5	8	16	11.5	M2	M4	3x25	15	13	2.94	4.22	34.8	28.1	24.4	3	6	Drawing PDF ↗
JRT 3130	75	40	16	130	551	30	1x75	27.5	M4	4x25	28.4	7.5	1.5	15.5	7.5	8	16	11.5	M2	M4	4x25	15	17	3.63	5.69	55.8	47.1	33.3	3	6	Drawing PDF ↗
JRT 3155	90	40	16	155	657	30	2x50	27.5	M4	5x25	28.4	7.5	1.5	15.5	7.5	8	16	11.5	M2	M4	5x25	15	20	3.92	6.37	74.7	64.6	36.9	3	6	Drawing PDF ↗
JRT 3180	105	40	16	180	766	30	1x75	52.5	M4	6x25	28.4	7.5	1.5	15.5	7.5	8	16	11.5	M2	M4	6x25	15	24	4.02	6.57	104	92.3	38.1	3	6	Drawing PDF ↗
JRT 3180	130	40	16	205	871	30	2x75	27.5	M4	6x25	28.4	7.5	1.5	15.5	7.5	8	16	11.5	M2	M4	7x25	15	26	4.22	7.16	120	107	41.5	3	6	Drawing PDF ↗

Linear Slides1 family

JLS

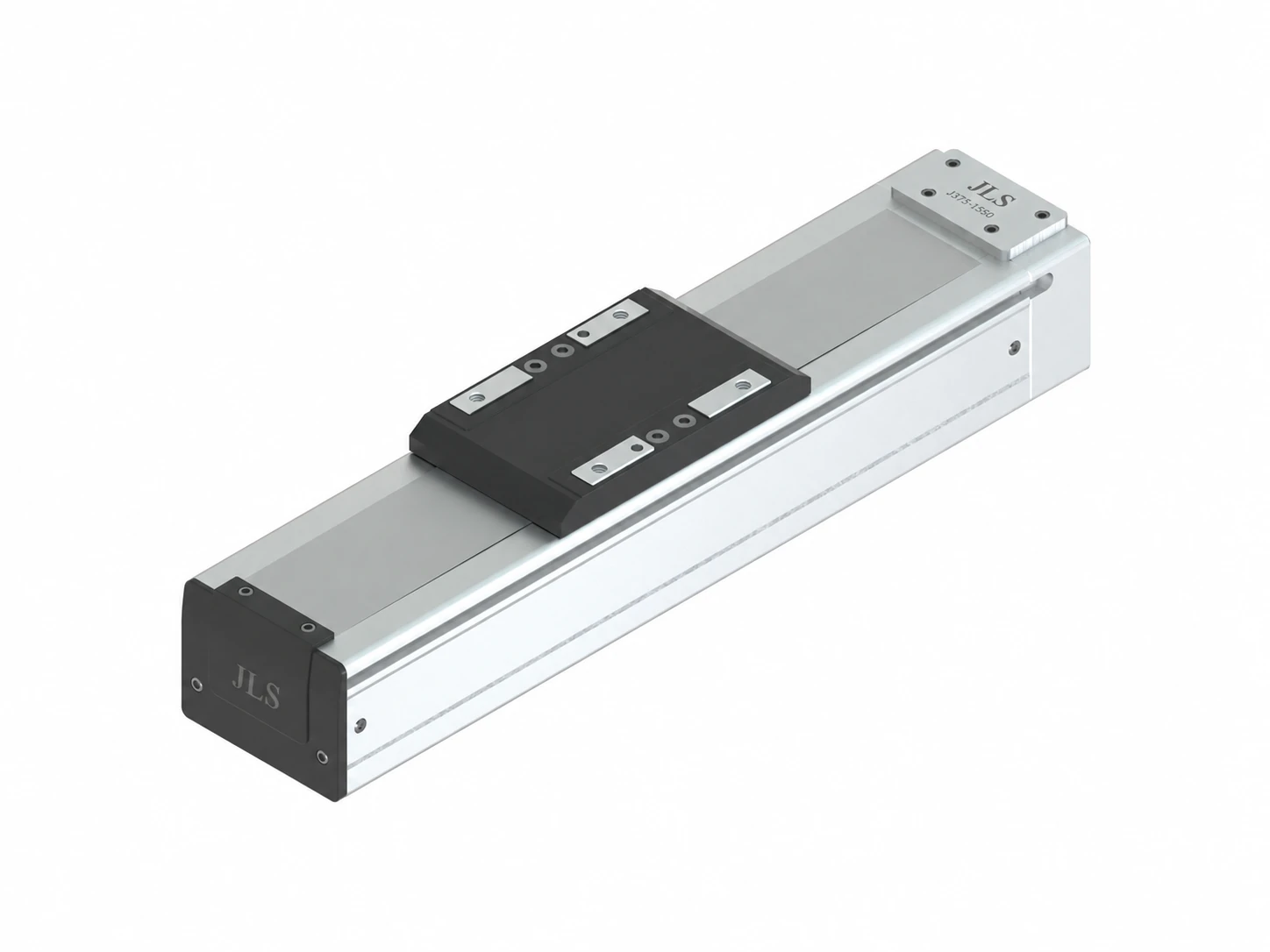

Linear Slides

Linear Slides · Linear Slides. Choose the full model marking and mounting format for your machine.10 models / configurationsView specs

Linear Slides · Linear Slides. Choose the full model marking and mounting format for your machine.

Linear Slides
Model No.	D 1	L	H	D-g6	A	PCD	B	Drawing
JFK4	4	15	6	18	32	24	25	—
JFK5	5	16.5	6	20	34	26	26	—
JFK6	6	20	7	22	36	28	28	—
JFK8	8	23	9	28	43	35	35	—
JFK10	10	27	10	34	52	42	42	—
JFK12	12	27	10	36	54	44	44	—
JFK15	15	32	15	40	63	50	52	—
JFK17	17	45	22	50	77	62	61	—
JFK25	25	57	27	63	98	80	79	—
JFK30	30	62	30	75	117	95	93	—

Couplings3 families

JLS

SRB

Couplings · SRB. Choose the full model marking and mounting format for your machine.23 models / configurationsView specs

Couplings · SRB. Choose the full model marking and mounting format for your machine.

SRB
Model No.	D	L	L 1	F	M	Fastening Torque (N-m)	(min-1)	Max Torque (N-m)	Rated Torque (N-m)	Torsional Stiffness (N-m/rad)	(kg-m 2 )	(g)	(Angle ° )	(Parallel mm)	(End-Play mm)	Drawing
SRB-12C	12.7	19	5	2.5	M2	0.5	35,000	0.4	0.2	40	1.05 x 10 -7	4.4	2.5	0.1	± 0.3	—
SRB-16C	16	21.5	6.05	3	M2.6	1	27,000	0.8	0.4	75	3.1 x 10 -7	8.2	2.5	0.15	± 0.3	—
SRB-19C	19.1	23	6.16	3.05	M2.6	1	20,000	1.2	0.6	150	6.4 x 10 -7	12	2.5	0.15	± 0.3	—
SRB-22C	22.2	26.5	7.15	3.55	M3	1.7	18,000	2.0	1.0	200	1.4 x 10 -6	17.9	2.5	0.15	± 0.4	—
SRB-26C	26.2	31.5	7.48	3.7	M3	1.7	17,000	4	2	340	3.16 x 10 -6	29.9	2.5	0.2	± 0.4	—
SRBA-32C	31.8	39	9.4	4.65	M4	3.5	14,000	7.6	3.8	450	8.61 x 10 -6	54.9	2.5	0.2	± 0.4	—
SRBB-32C	31.8	44	9.4	4.65	M4	3.5	14,000	7.6	3.8	450	1.0 x 10 -5	62.3	2.5	0.2	± 0.4	—
SRBA-39C	39	43	10.74	5.3	M5	8	10,000	14	7	640	2.1 x 10 -5	87.8	2.5	0.25	± 0.4	—
SRBB-39C	39	56	12.04	5.45	M5	8	10,000	14	7	640	2.79 x 10 -5	117	2.5	0.25	± 0.4	—
SRBA-49C	49	63.5	15.05	7.5	M6	13	10,000	30	15	1,500	8.35 x 10 -5	236	2.5	0.25	± 0.5	—
SRBB-49C	49	70	14.5	7.2	M6	13	8,400	30	15	1,500	1.0 x 10 -4	258	2.5	0.25	± 0.5	—
SRBB-60C	60	76.2	19	9.35	M8	30	7,000	60	30	2,500	2.17 x 10 -4	407	2.5	0.25	± 0.5	—
SRBB-60C	60	88	19	9.35	M8	30	7,000	60	30	2,500	2.58 x 10 -4	483	2.5	0.25	± 0.5	—
SRB-8	7.9	14	3.5	1.7	M2	0.3	50,000	0.2	0.1	16	1.2 x 10 -8	1.5	2.5	0.1	± 0.2	—
SRB-12	12.7	18	4.5	2.15	M2.5	0.5	40,000	0.4	0.2	40	1.04 x 10 -7	4.4	2.5	0.1	± 0.3	—
SRB-16	16	18.5	4.7	2.3	M3	0.7	30,000	0.8	0.4	75	2.8 x 10 -7	7.2	2.5	0.15	± 0.3	—
SRB-19	19.1	22	5.96	2.9	M3	0.7	24,000	1.2	0.6	150	6.4 x 10 -7	12	2.5	0.15	± 0.3	—
SRB-22	22.2	25	6.5	3.2	M4	1.7	20,000	2.0	1.0	200	1.4 x 10 -6	17.4	2.5	0.15	± 0.4	—
SRB-26	26.2	30	7.73	3.4	M4	1.7	18,000	4	2	340	3.1 x 10 -6	29.2	2.5	0.2	± 0.4	—
SRB-32	31.8	39	9.4	4.7	M5	4	18,000	7.6	3.8	450	9.4 x 10 -6	56.8	2.5	0.2	± 0.4	—
SRB-39	39	56	16.04	5.9	M5	4	12,000	14	7	640	2.8 x 10 -5	124	2.5	0.25	± 0.4	—
SRB-49	49	70	19.75	9.4	M6	7	10,000	30	15	1,500	1.0 x 10 -4	280	2.5	0.25	± 0.5	—
SRB-60	60	88	19	9	M8	15	8,500	60	30	2,500	2.6 x 10 -4	500	2.5	0.3	± 0.5	—

JLS

SRBM

Couplings · SRBM. Choose the full model marking and mounting format for your machine.18 models / configurationsView specs

Couplings · SRBM. Choose the full model marking and mounting format for your machine.

SRBM
Model No.	D	L	L 1	F	M	Fastening Torque (N-m)	(min-1)	Max Torque (N-m)	Rated Torque (N-m)	Torsional Stiffness (N-m/rad)	(kg-m 2 )	(g)	(Angle ° )	(Parallel mm)	(End-Play mm)	Drawing
SRBM-12C	12.7	14	5	2.5	M2	0.5	35,000	0.4	0.2	60	7.88 x 10 -8	3.2	1	0	± 0.15	—
SRBM-16C	16	16	6	2.95	M2.6	1	27,000	0.8	0.4	130	2.3 x 10 -7	6.3	1	0	± 0.15	—
SRBM-19C	19.1	17	6.31	3.1	M2.6	1	20,000	1.2	0.6	160	5.0 x 10 -7	9.2	1	0	± 0.15	—
SRBM-22C	22.2	20	7.4	3.65	M3	1.7	18,000	2.0	1.0	180	1.1 x 10 -6	15	1	0	± 0.15	—
SRBM-26C	26.2	31.5	7.48	3.7	M3	1.7	17,000	4	2	340	3.16 x 10 -6	29.9	2.5	0.2	± 0.4	—
SRBM-32C	31.8	30	11	5.4	M4	3.5	14,000	7.6	3.8	780	6.84 x 10 -6	44	1	0	± 0.15	—
SRBMS-12C	12.7	14	5	2.5	M2	0.5	20,000	0.6	0.3	120	2.4 x 10 -7	10	1	0	± 0.15	—
SRBMS-16C	16	16	6	2.95	M2.6	1	20,000	1.0	0.5	240	7.0 x 10 -7	20	1	0	± 0.15	—
SRBMS-19C	19.1	17	6.31	3.1	M2.6	1	17,000	3.2	1.6	350	3.1 x 10 -7	42	1	0	± 0.15	—
SRBMS-22C	22.2	20	7.4	3.65	M3	1.5	17,000	3.2	1.6	350	3.1 x 10 -6	42	1	0	± 0.15	—
SRBMS-26C	26.2	23	8.4	4.1	M3	1.5	15,000	4.2	2.1	720	7.2 x 10 -6	70	1	0	± 0.15	—
SRBM-32C	31.8	30	11	5.4	M4	2.5	10,000	7.6	3.8	1300	2.0 x 10 -6	140	1	0	± 0.15	—
SRBM-12	12.7	13	4.5	2.2	M2.5	0.5	40,000	0.4	0.2	60	7.89 x 10 -7	32	1	0	± 0.15	—
SRBM-16	16	14	5.0	2.4	M3	0.7	30,000	0.8	0.4	130	2.15 x 10 -7	5.8	1	0	± 0.15	—
SRBM-19	19.1	17	6.31	3.1	M3	0.7	24,000	1.2	0.6	160	5.34 x 10 -7	10	1	0	± 0.15	—
SRBM-22	22.2	19	6.9	3.3	M4	1.7	20,000	2.0	1.0	180	1.1 x 10 -6	14	1	0	± 0.15	—
SRBM-26	26.2	22	7.9	3.8	M4	1.7	18,000	4.0	2.0	480	2.5 x 10 -6	25	1	0	± 0.15	—
SRB-32	31.8	29	10.5	5.1	M5	4	16,000	7.6	3.8	780	6.94 x 10 -6	44.9	1	0	± 0.15	—

JLS

SDS

Couplings · SDS. Choose the full model marking and mounting format for your machine.5 models / configurationsView specs

Couplings · SDS. Choose the full model marking and mounting format for your machine.

SDS
Model No.	D	D 1	L	L 1	F	M	Fastening Torque (N-m)	(min-1)	Max Torque (N-m)	Rated Torque (N-m)	Torsional Stiffness (N-m/rad)	(kg-m 2 )	(g)	(Angle ° )	(Parallel mm)	(End-Play mm)	Drawing
SDS-16	16	6.7	12	5.1	2.5	M2.5	0.5	16,000	1	0.5	270	1.8 x 10 -7	5	0.5	0.02	± 0.1	—
SDS-19	19	8.5	14.5	6.1	3	M3	0.7	16,000	1.8	0.9	600	3.0 x 10 -7	6	1	0.02	± 0.1	—
SDS-22	22.2	10	14.5	6.1	3	M3	0.7	12,000	2.2	1.1	600	6.9 x 10 -7	10	1	0.02	± 0.1	—
SDS-26	26.6	12.2	17.6	7.4	3.6	M4	1.7	12,000	3	1.5	900	2.0 x 10 -6	20	1	0.02	± 0.15	—
SDS-31	31.8	14.4	17.6	7.2	3.6	M4	1.7	10,000	6	3	1,770	4.4 x 10 -6	30	1	0.02	± 0.2	—

Ball Transfer Units8 families

JLS

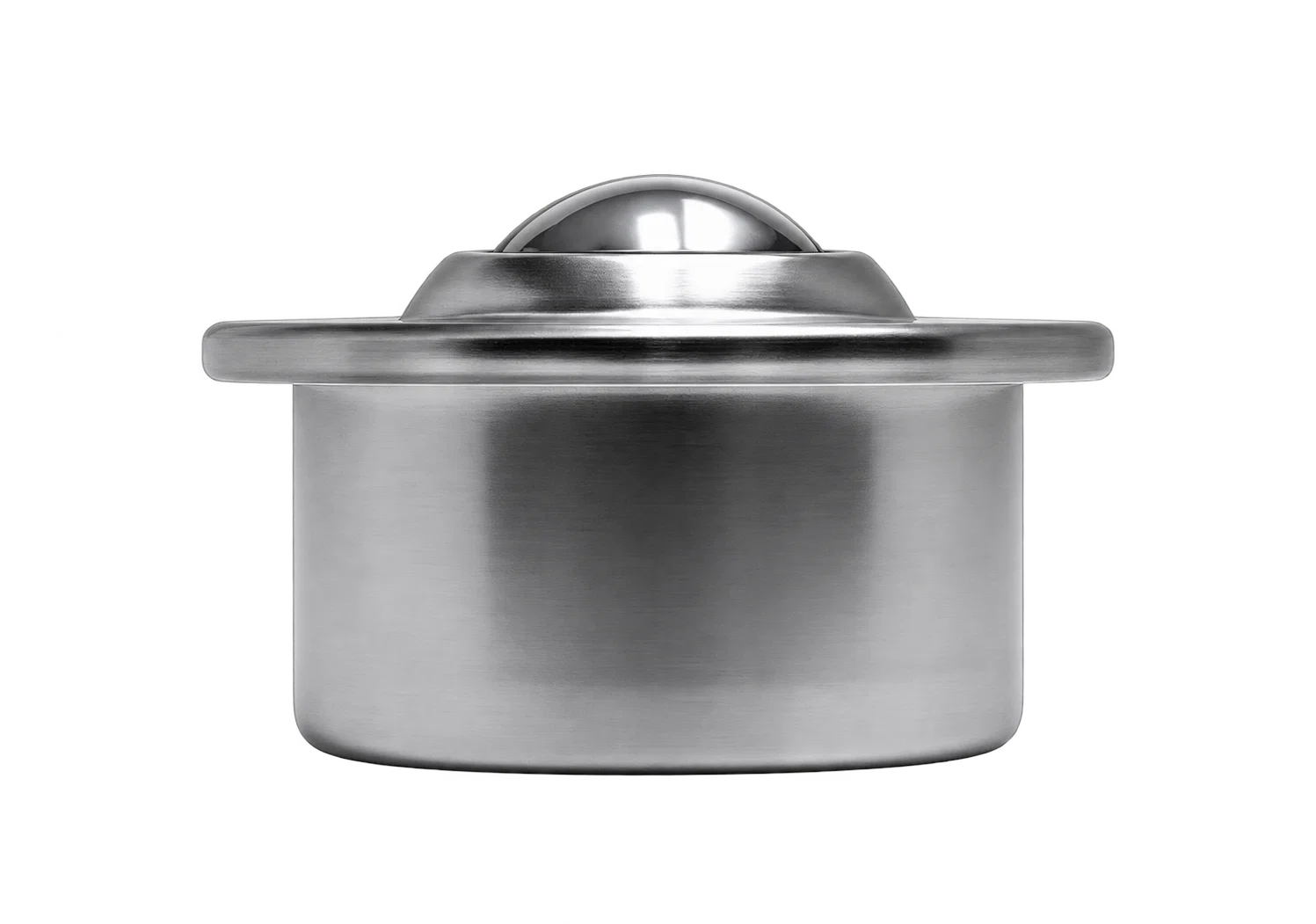

JSPS

Ball Transfer Units · JSPS. Choose the full model marking and mounting format for your machine.14 models / configurationsView specs

Ball Transfer Units · JSPS. Choose the full model marking and mounting format for your machine.

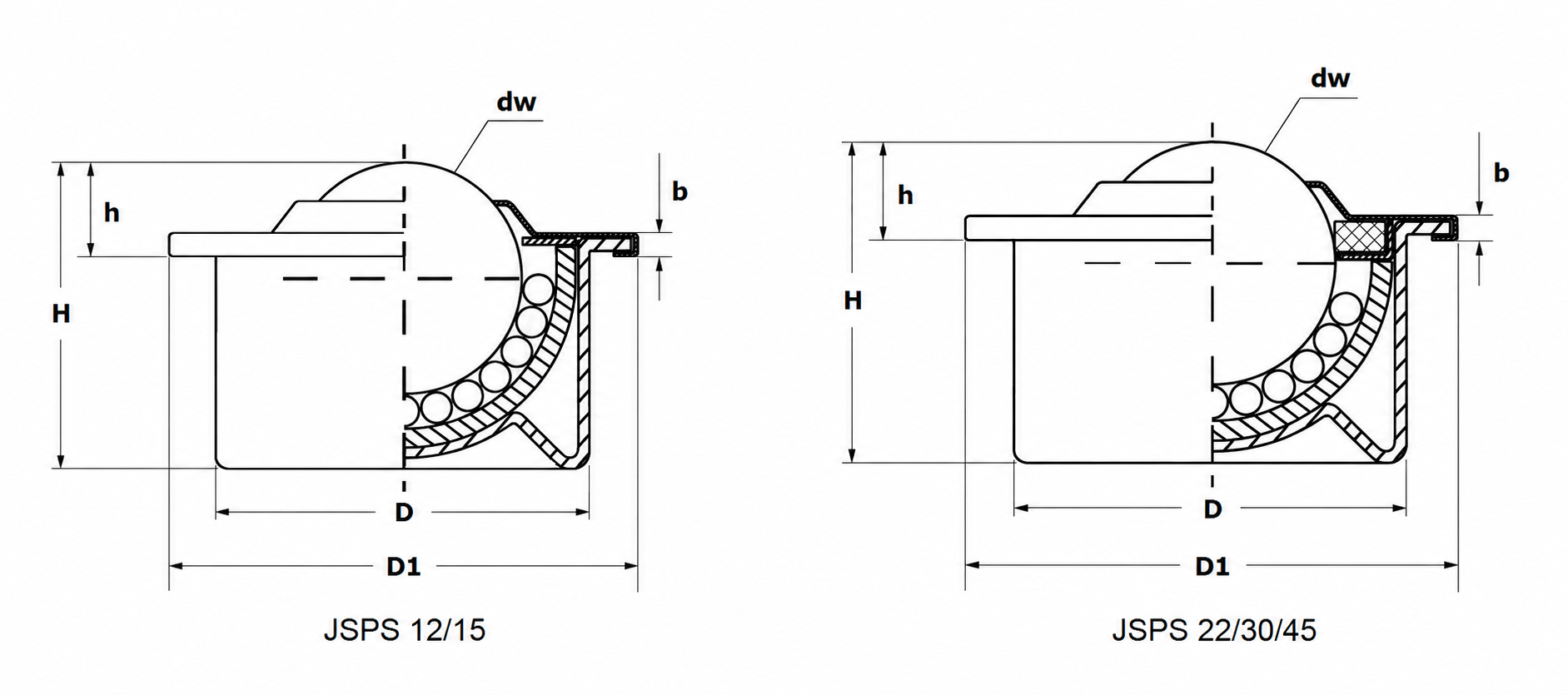

JLS JSPS dimension sketch — Dimension sketch · open to enlarge

JSPS
Model No	Version	dW	D	D 1	h	H	b	Loading Capacity(Kg) ⤒	Loading Capacity(Kg) ⤓	W(Kg)	Drawing
JSPS 12 B	Body made up of zinc and pressed metal sheet,inner ball race made up of hardened steel, ball made up of AISI 52100 chrome steel.	12	22 ± 0,08	28	8 ± 0,2	17,2	3	15	15	0,030	—
JSPS 15 B	Body made up of zinc and pressed metal sheet,inner ball race made up of hardened steel, ball made up of AISI 52100 chrome steel.	15	24 ± 0,08	31	9,5 ± 0,2	21	3	50	35	0,037	—
JSPS 22 B	Body made up of zinc and pressed metal sheet,inner ball race made up of hardened steel, ball made up of AISI 52100 chrome steel.	22	36 ± 0,08	45	9 ± 0,2	29,5	3,5	120	80	0,130	—
JSPS 25 B	Body made up of zinc and pressed metal sheet,inner ball race made up of hardened steel, ball made up of AISI 52100 chrome steel.	25	38 ± 0,08	45	14 ± 0,3	30,5	3,5	120	80	0,130	—
JSPS 30 B	Body made up of zinc and pressed metal sheet,inner ball race made up of hardened steel, ball made up of AISI 52100 chrome steel.	30	45 ± 0,1	55	13 ± 0,3	36,8	4	250	170	0,265	—
JSPS 45 B	Body made up of zinc and pressed metal sheet,inner ball race made up of hardened steel, ball made up of AISI 52100 chrome steel.	45	62 ± 0,15	75	19 ± 0,4	53,5	6	420	300	0,655	—
JSPS 15 C	Body made up of pressed zinc zinc plated metal sheet,inner ball race made up of hardened steel, ball made up of AISI 420C stainless steel.	15	24 ± 0,08	31	9,5 ± 0,2	21	3	35	35	0,037	—
JSPS 22 C	Body made up of pressed zinc zinc plated metal sheet,inner ball race made up of hardened steel, ball made up of AISI 420C stainless steel.	22	36 ± 0,08	45	9,8 ± 0,2	29,5	3,5	90	60	0,130	—
JSPS 25 C	Body made up of pressed zinc zinc plated metal sheet,inner ball race made up of hardened steel, ball made up of AISI 420C stainless steel.	25	38 ± 0,08	75	14 ± 0,3	30,5	3,5	90	60	0,130	—
JSPS 30 C	Body made up of pressed zinc zinc plated metal sheet,inner ball race made up of hardened steel, ball made up of AISI 420C stainless steel.	30	45 ± 0,1	55	13,8 ± 0,3	36,8	4	140	100	0,265	—
JSPS 15 SS	Body made up of pressed stainless steel sheet,inner ball race made up of hardened stainless steel, ball made up of AISI 420C stainless steel.	15	24 ± 0,08	31	9,5 ± 0,2	21	3	35	35	0,037	—
JSPS 22 SS	Body made up of pressed stainless steel sheet,inner ball race made up of hardened stainless steel, ball made up of AISI 420C stainless steel.	22	36 ± 0,08	45	9,8 ± 0,2	29,5	3,5	90	60	0,130	—
JSPS 25 SS	Body made up of pressed stainless steel sheet,inner ball race made up of hardened stainless steel, ball made up of AISI 420C stainless steel.	25	38 ± 0,08	75	14 ± 0,3	30,5	3,5	90	60	0,130	—
JSPS 30 SS	Body made up of pressed stainless steel sheet,inner ball race made up of hardened stainless steel, ball made up of AISI 420C stainless steel.	30	45 ± 0,1	55	13,8 ± 0,3	36,8	4	140	100	0,265	—

JLS

JSBM

Ball Transfer Units · JSBM. Choose the full model marking and mounting format for your machine.32 models / configurationsView specs

Ball Transfer Units · JSBM. Choose the full model marking and mounting format for your machine.

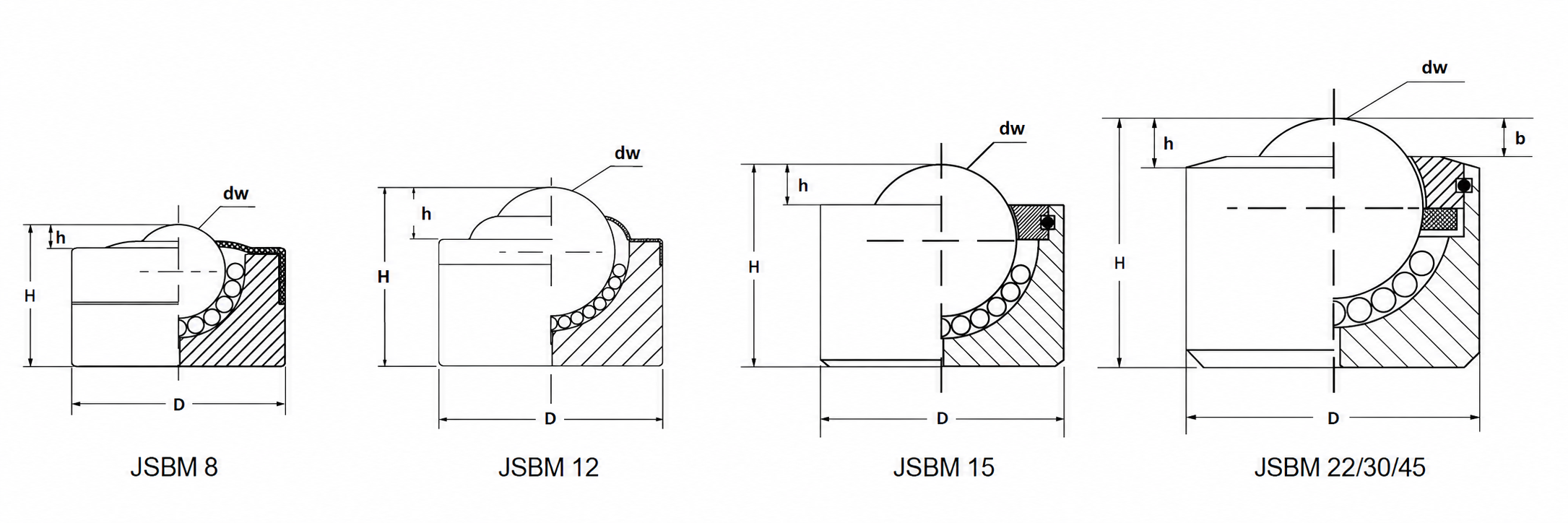

JLS JSBM dimension sketch — Dimension sketch · open to enlarge

JSBM
Model No	Version	dW	D	h	H	b	Loading Capacity(Kg) ⤒	Loading Capacity(Kg) ⤓	W(Kg)	Drawing
JSBM 8 A	Body made of steel, balls made of AISI 52100 chrome steel	8	18 ± 0,08	2 ± 0,2	12	-	12	9	0,018	—
JSBM 12 A	Body made of steel, balls made of AISI 52100 chrome steel	12	22 ± 0,08	5,5 ± 0,2	17,5	-	20	15	0,035	—
JSBM 8 B	Body made of zinc plated steel, balls made of AISI 52100 chrome steel	8	18 ± 0,08	2 ± 0,2	12	-	12	9	0,018	—
JSBM 12 B	Body made of zinc plated steel, balls made of AISI 52100 chrome steel	12	22 ± 0,08	5,5 ± 0,2	17,5	-	20	15	0,035	—
JSBM 15 B	Body made of zinc plated steel, balls made of AISI 52100 chrome steel	15	24 ± 0,08	5 ± 0,2	20	-	50	35	0,050	—
JSBM 22 B	Body made of zinc plated steel, balls made of AISI 52100 chrome steel	22	36 ± 0,08	5,3 ± 0,2	30,5	4	180	125	0,170	—
JSBM 30 B	Body made of zinc plated steel, balls made of AISI 52100 chrome steel	30	45 ± 0,08	8 ± 0,3	36,8	8,5	350	250	0,330	—
JSBM 45 B	Body made of zinc plated steel, balls made of AISI 52100 chrome steel	45	62 ± 0,1	13 ± 0,3	53,5	10	600	420	0,945	—
JSBM 8 C	Body made of zinc plated steel, balls made of AISI 420C stainless steel	8	18 ± 0,08	2 ± 0,2	12	-	10	7	0,018	—
JSBM 12 C	Body made of zinc plated steel, balls made of AISI 420C stainless steel	12	22 ± 0,08	5,5 ± 0,2	17,5	-	15	10	0,035	—
JSBM 15 C	Body made of zinc plated steel, balls made of AISI 420C stainless steel	15	24 ± 0,08	5 ± 0,2	20	-	40	25	0,050	—
JSBM 22 C	Body made of zinc plated steel, balls made of AISI 420C stainless steel	22	36 ± 0,08	5,3 ± 0,2	30,5	4	130	90	0,170	—
JSBM 30 C	Body made of zinc plated steel, balls made of AISI 420C stainless steel	30	45 ± 0,08	8 ± 0,3	36,8	8,5	240	170	0,330	—
JSBM 45 C	Body made of zinc plated steel, balls made of AISI 420C stainless steel	45	62 ± 0,1	13 ± 0,3	53,5	10	400	280	0,945	—
JSBM 8 SS	Body made of stainless steel, balls made of AISI 420C stainless steel	8	18 ± 0,08	2 ± 0,2	12	-	10	9	0,018	—
JSBM 12 SS	Body made of stainless steel, balls made of AISI 420C stainless steel	12	22 ± 0,08	5,5 ± 0,2	17,5	-	15	10	0,035	—
JSBM 15 SS	Body made of stainless steel, balls made of AISI 420C stainless steel	15	24 ± 0,08	5 ± 0,2	20	-	40	25	0,050	—
JSBM 8 BD	Body made of zinc plated steel, big ball made of plastic*, small balls made of AISI 52100 chrome steel	8	18 ± 0,08	2 ± 0,2	12	-	3	-	0,016	—
JSBM 12 BD	Body made of zinc plated steel, big ball made of plastic*, small balls made of AISI 52100 chrome steel	12	22 ± 0,08	5,5 ± 0,2	17,5	-	5	-	0,030	—
JSBM 15 BD	Body made of zinc plated steel, big ball made of plastic*, small balls made of AISI 52100 chrome steel	15	24 ± 0,08	5 ± 0,2	20	-	13	-	0,035	—
JSBM 22 BD	Body made of zinc plated steel, big ball made of plastic*, small balls made of AISI 52100 chrome steel	22	36 ± 0,08	5,3 ± 0,2	30,5	4	20	-	0,140	—
JSBM 30 BD	Body made of zinc plated steel, big ball made of plastic*, small balls made of AISI 52100 chrome steel	30	45 ± 0,08	8 ± 0,3	36,8	8,5	25	-	0,240	—
JSBM 45 BD	Body made of zinc plated steel, big ball made of plastic*, small balls made of AISI 52100 chrome steel	45	62 ± 0,1	13 ± 0,3	53,5	10	30	-	0,650	—
JSBM 8 CD	Body made of zinc plated steel, big ball made of plastic*, small balls made of AISI 420C stainless steel	8	18 ± 0,08	2 ± 0,2	12	-	3	-	0,016	—
JSBM 12 CD	Body made of zinc plated steel, big ball made of plastic*, small balls made of AISI 420C stainless steel	12	22 ± 0,08	5,5 ± 0,2	17,5	-	5	-	0,030	—
JSBM 15 CD	Body made of zinc plated steel, big ball made of plastic*, small balls made of AISI 420C stainless steel	15	24 ± 0,08	5 ± 0,2	20	-	13	-	0,035	—
JSBM 22 CD	Body made of zinc plated steel, big ball made of plastic*, small balls made of AISI 420C stainless steel	22	36 ± 0,08	5,3 ± 0,2	30,5	4	20	-	0,140	—
JSBM 30 CD	Body made of zinc plated steel, big ball made of plastic*, small balls made of AISI 420C stainless steel	30	45 ± 0,08	8 ± 0,3	36,8	8,5	25	-	0,240	—
JSBM 45 CD	Body made of zinc plated steel, big ball made of plastic*, small balls made of AISI 420C stainless steel	45	62 ± 0,1	13 ± 0,3	53,5	10	30	-	0,650	—
JSBM 8 SSCD	Body made of stainless steel, big ball made of plastic*, small balls made of AISI 420C stainless steel	8	18 ± 0,08	2 ± 0,2	12	-	3	-	0,016	—
JSBM 12 SSCD	Body made of stainless steel, big ball made of plastic*, small balls made of AISI 420C stainless steel	12	22 ± 0,08	5,5 ± 0,2	17,5	-	5	-	0,030	—
JSBM 15 SSCD	Body made of stainless steel, big ball made of plastic*, small balls made of AISI 420C stainless steel	15	24 ± 0,08	5 ± 0,2	20	-	13	-	0,035	—

JLS

JSPM

Ball Transfer Units · JSPM. Choose the full model marking and mounting format for your machine.24 models / configurationsView specs

Ball Transfer Units · JSPM. Choose the full model marking and mounting format for your machine.

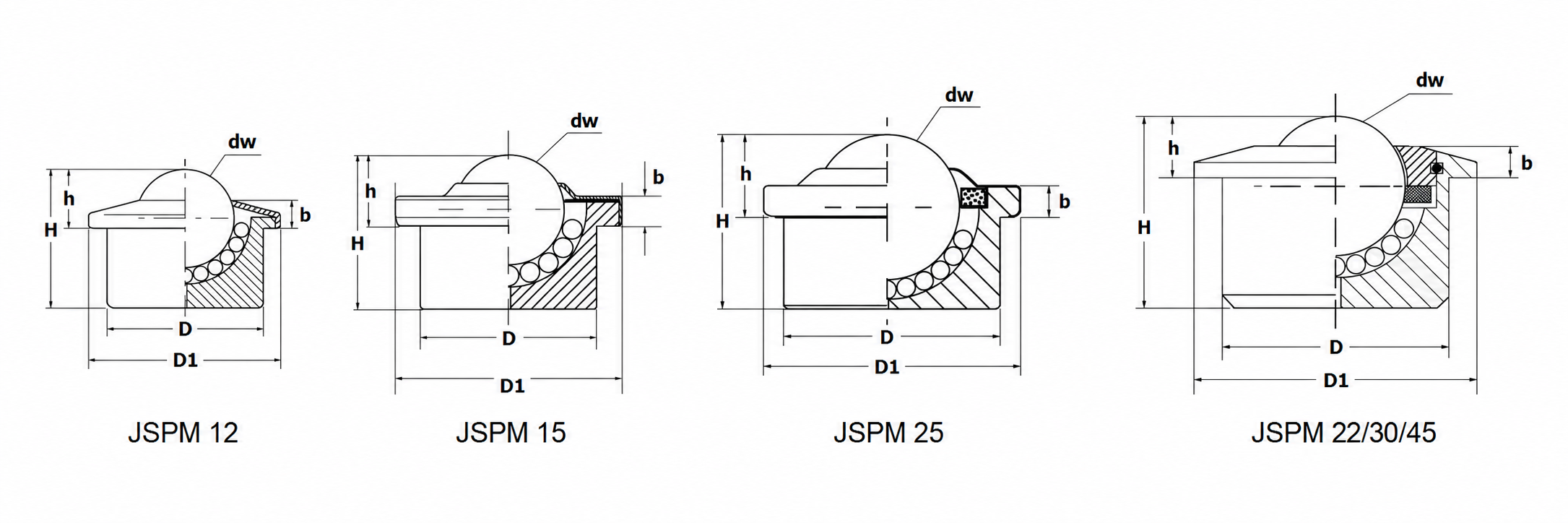

JLS JSPM dimension sketch — Dimension sketch · open to enlarge

JSPM
Model No	Version	dW	D	D 1	h	H	b	Loading Capacity(Kg) ⤒	Loading Capacity(Kg) ⤓	W(Kg)	Drawing
JSPM 12 A	Body made up of steel, balls made of AISI 52100 chrome steel	12	22 ± 0,08	27	8 ± 0,2	16,75	5	20	15	0,035	—
JSPM 15 A	Body made up of steel, balls made of AISI 52100 chrome steel	15	24 ± 0,08	31	9,5 ± 0,2	21	5,5	50	35	0,060	—
JSPM 22 A	Body made up of steel, balls made of AISI 52100 chrome steel	22	36 ± 0,08	45	9,8 ± 0,2	30,5	4,5	180	125	0,185	—
JSPM 25 A	Body made up of steel, balls made of AISI 52100 chrome steel	25	38 ± 0,08	45	14 ± 0,3	30,2	8,5	180	125	0,195	—
JSPM 30 A	Body made up of steel, balls made of AISI 52100 chrome steel	30	45 ± 0,1	55	13,8 ± 0.3	36,8	8	350	250	0,355	—
JSPM 45 A	Body made up of steel, balls made of AISI 52100 chrome steel	45	62 ± 0,1	75	19 ± 0,4	53,5	10	600	420	0,990	—
JSPM 12 B	Body made up of zinc plated steel, balls made of AISI 52100 chrome steel	12	22 ± 0,08	27	8 ± 0,2	16,75	5	20	15	0,035	—
JSPM 15 B	Body made up of zinc plated steel, balls made of AISI 52100 chrome steel	15	24 ± 0,08	31	9,5 ± 0,2	21	5,5	50	35	0,060	—
JSPM 22 B	Body made up of zinc plated steel, balls made of AISI 52100 chrome steel	22	36 ± 0,08	45	9,8 ± 0,2	30,5	4,5	180	125	0,185	—
JSPM 25 B	Body made up of zinc plated steel, balls made of AISI 52100 chrome steel	25	38 ± 0,08	45	14 ± 0,3	30,2	8,5	180	125	0,195	—
JSPM 30 B	Body made up of zinc plated steel, balls made of AISI 52100 chrome steel	30	45 ± 0,1	55	13,8 ± 0.3	36,8	8	350	250	0,355	—
JSPM 45 B	Body made up of zinc plated steel, balls made of AISI 52100 chrome steel	45	62 ± 0,1	75	19 ± 0,4	53,5	10	600	420	0,990	—
JSPM 12 C	Body made up of zinc plated steel, balls made of AISI 420C stainless steel	12	22 ± 0,08	27	8 ± 0,2	16,75	5	15	10	0,035	—
JSPM 15 C	Body made up of zinc plated steel, balls made of AISI 420C stainless steel	15	24 ± 0,08	31	9,5 ± 0,2	21	5,5	40	25	0,060	—
JSPM 22 C	Body made up of zinc plated steel, balls made of AISI 420C stainless steel	22	36 ± 0,08	45	9,8 ± 0,2	30,5	4,5	130	190	0,185	—
JSPM 25 C	Body made up of zinc plated steel, balls made of AISI 420C stainless steel	25	38 ± 0,08	45	14 ± 0,3	30,2	8,5	130	190	0,195	—
JSPM 30 C	Body made up of zinc plated steel, balls made of AISI 420C stainless steel	30	45 ± 0,1	55	13,8 ± 0.3	36,8	8	240	170	0,355	—
JSPM 45 C	Body made up of zinc plated steel, balls made of AISI 420C stainless steel	45	62 ± 0,1	75	19 ± 0,4	53,5	10	400	280	0,990	—
JSPM 12 SS	Body, components and all the balls made of AISI 420C stainless steel	12	22 ± 0,08	27	8 ± 0,2	16,75	5	15	10	0,035	—
JSPM 15 SS	Body, components and all the balls made of AISI 420C stainless steel	15	24 ± 0,08	31	9,5 ± 0,2	21	5,5	40	25	0,060	—
JSPM 22 SS	Body, components and all the balls made of AISI 420C stainless steel	22	36 ± 0,08	45	9,8 ± 0,2	30,5	4,5	130	190	0,185	—
JSPM 25 SS	Body, components and all the balls made of AISI 420C stainless steel	25	38 ± 0,08	45	14 ± 0,3	30,2	8,5	130	190	0,195	—
JSPM 30 SS	Body, components and all the balls made of AISI 420C stainless steel	30	45 ± 0,1	55	13,8 ± 0.3	36,8	8	240	170	0,355	—
JSPM 45 SS	Body, components and all the balls made of AISI 420C stainless steel	45	62 ± 0,1	75	19 ± 0,4	53,5	10	400	280	0,990	—

JLS

JSPM-CX

Ball Transfer Units · JSPM-CX. Choose the full model marking and mounting format for your machine.4 models / configurationsView specs

Ball Transfer Units · JSPM-CX. Choose the full model marking and mounting format for your machine.

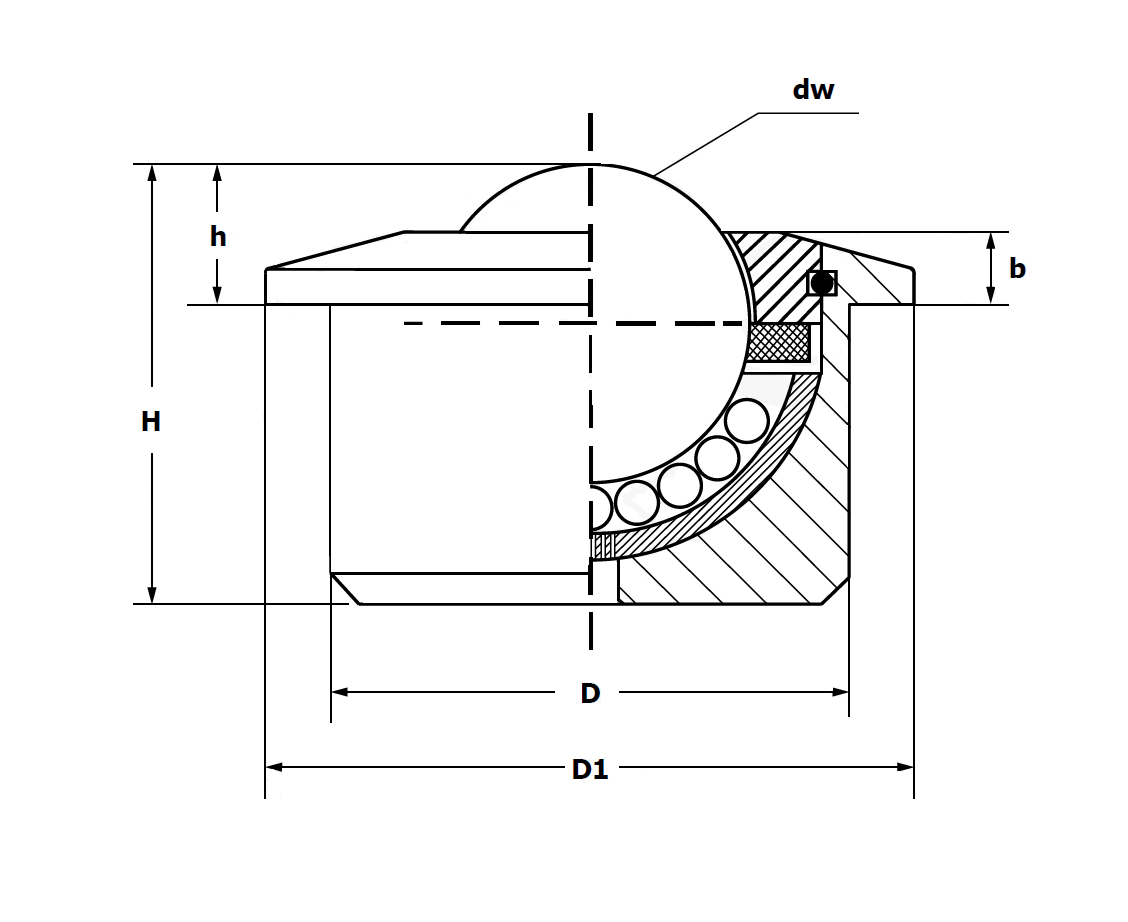

JLS JSPM-CX dimension sketch — Dimension sketch · open to enlarge

JSPM-CX
Model No	Version	dW	D	D 1	h	H	b	Loading Capacity(Kg) ⤒	Loading Capacity(Kg) ⤓	W(Kg)	Drawing
JSPM 30 CX	Zinc plated steel body, inner ball race made of AISI 420C hardened stainless steel, balls made of AISI 420C stainless steel	30	45 ± 0,08	55	13 ± 0,3	36,8	9	210	210	0,035	—
JSPM 45 CX	Zinc plated steel body, inner ball race made of AISI 420C hardened stainless steel, balls made of AISI 420C stainless steel	45	62 ± 0,1	75	19 ± 0,4	53,5	10	400	400	0,9900	—
JSPM 30 SS	AISI 303 stainless steel body, inner ball race made of AISI 420C hardened stainless steel, balls made of AISI 420C stainless steel	30	45 ± 0,08	55	13 ± 0,3	36,8	9	210	210	0,035	—
JSPM 45 SS	AISI 303 stainless steel body, inner ball race made of AISI 420C hardened stainless steel, balls made of AISI 420C stainless steel	45	62 ± 0,1	75	19 ± 0,4	53,5	10	400	400	0,9900	—

JLS

JSPM-FL / JSBM-FL

Ball Transfer Units · JSPM-FL / JSBM-FL. Choose the full model marking and mounting format for your machine.15 models / configurationsView specs

Ball Transfer Units · JSPM-FL / JSBM-FL. Choose the full model marking and mounting format for your machine.

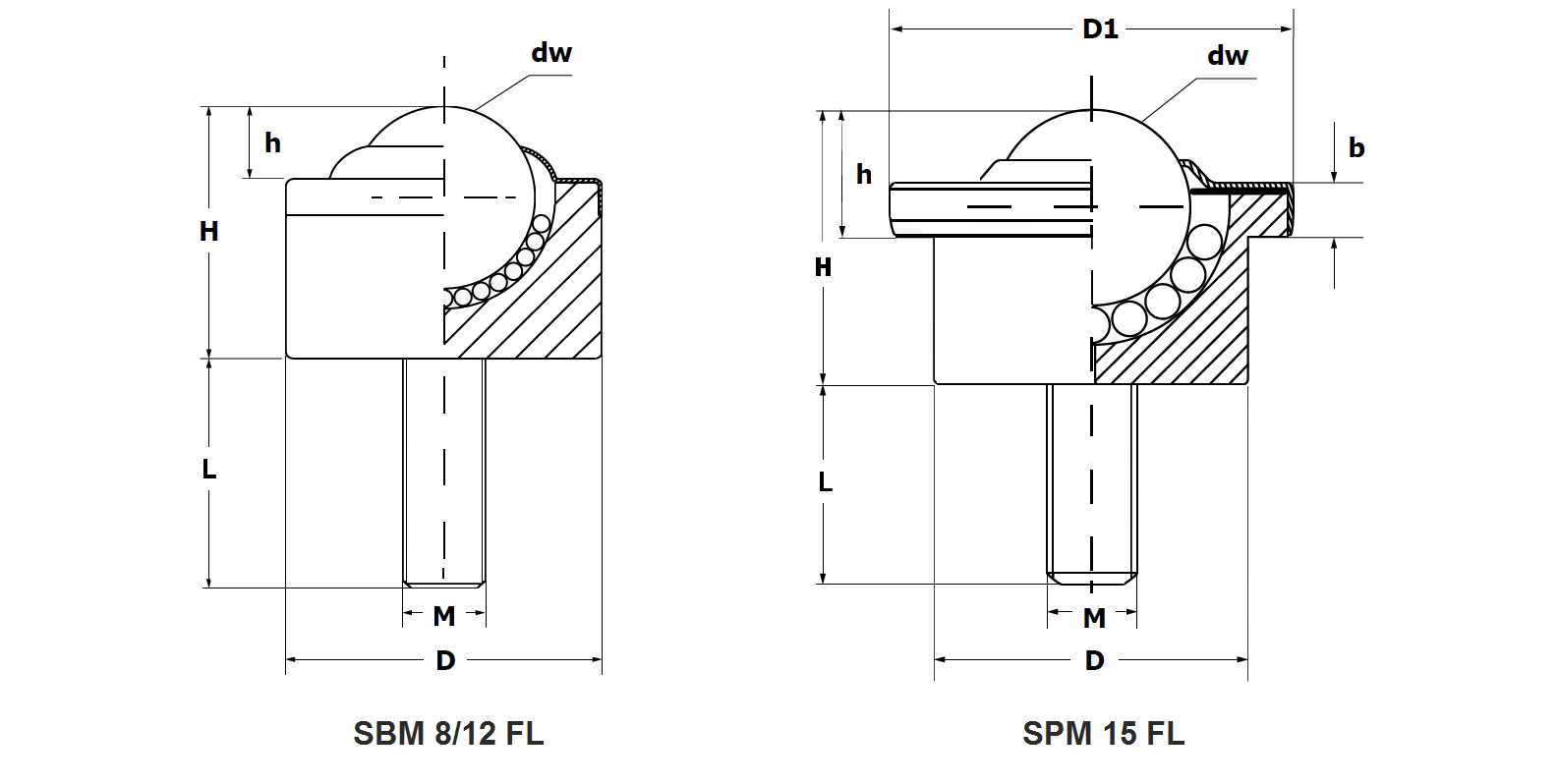

JLS JSPM-FL / JSBM-FL dimension sketch — Dimension sketch · open to enlarge

JSPM-FL / JSBM-FL
Model No	Version	dW	D	D 1	h	H	b	M	L	Loading Capacity(Kg) ⤒	Loading Capacity(Kg) ⤓	W(Kg)	Drawing
JSBM 8 B FL	Body made of zinc plated steel, balls made of AISI 52100 chrome steel	8	18	-	2 ± 0,2	12	-	6	10-15	12	9	0,025	—
JSBM 12 B FL	Body made of zinc plated steel, balls made of AISI 52100 chrome steel	12	22	-	5 ± 0,2	17,5	-	8	15-20	20	15	0,045	—
JSBM 15 B FL	Body made of zinc plated steel, balls made of AISI 52100 chrome steel	15	24	31	9,5 ± 0,2	21	5,5	8	15-20	50	35	0,070	—
JSBM 8 C FL	Body made of zinc plated steel, balls made of AISI 420C stainless steel	8	18	-	2 ± 0,2	12	-	6	10-15	10	7	0,025	—
JSBM 12 C FL	Body made of zinc plated steel, balls made of AISI 420C stainless steel	12	22	-	5 ± 0,2	17,5	-	8	15-20	15	10	0,045	—
JSBM 15 C FL	Body made of zinc plated steel, balls made of AISI 420C stainless steel	15	24	31	9,5 ± 0,2	21	5,5	8	15-20	40	25	0,070	—
JSBM 8 BD FL	Body made of zinc plated steel, big ball made of plastic*, small balls made of AISI 52100 chrome steel	8	18	-	2 ± 0,2	12	-	6	10-15	3	-	0,020	—
JSBM 12 BD FL	Body made of zinc plated steel, big ball made of plastic*, small balls made of AISI 52100 chrome steel	12	22	-	5 ± 0,2	17,5	-	8	15-20	5	-	0,055	—
JSBM 15 BD FL	Body made of zinc plated steel, big ball made of plastic*, small balls made of AISI 52100 chrome steel	15	24	31	9,5 ± 0,2	21	5,5	8	15-20	13	-	0,055	—
JSBM 8 CD FL	Body made of zinc plated steel, big ball made of plastic*, small balls made of AISI 420C stainless steel	8	18	-	2 ± 0,2	12	-	6	10-15	3	-	0,020	—
JSBM 12 CD FL	Body made of zinc plated steel, big ball made of plastic*, small balls made of AISI 420C stainless steel	12	22	-	5 ± 0,2	17,5	-	8	15-20	5	-	0,055	—
JSBM 15 CD FL	Body made of zinc plated steel, big ball made of plastic*, small balls made of AISI 420C stainless steel	15	24	31	9,5 ± 0,2	21	5,5	8	15-20	13	-	0,055	—
JSBM 8 SS CD FL	Body made of stainless steel, big ball made of plastic*, small balls made of AISI 420C stainless steel	8	18	-	2 ± 0,2	12	-	6	10-15	3	-	0,020	—
JSBM 12 SS CD FL	Body made of stainless steel, big ball made of plastic*, small balls made of AISI 420C stainless steel	12	22	-	5 ± 0,2	17,5	-	8	15-20	5	-	0,055	—
JSBM 15 SS CD FL	Body made of stainless steel, big ball made of plastic*, small balls made of AISI 420C stainless steel	15	24	31	9,5 ± 0,2	21	5,5	8	15-20	13	-	0,055	—

JLS

JSBM-B-FL

Ball Transfer Units · JSBM-B-FL. Choose the full model marking and mounting format for your machine.15 models / configurationsView specs

Ball Transfer Units · JSBM-B-FL. Choose the full model marking and mounting format for your machine.

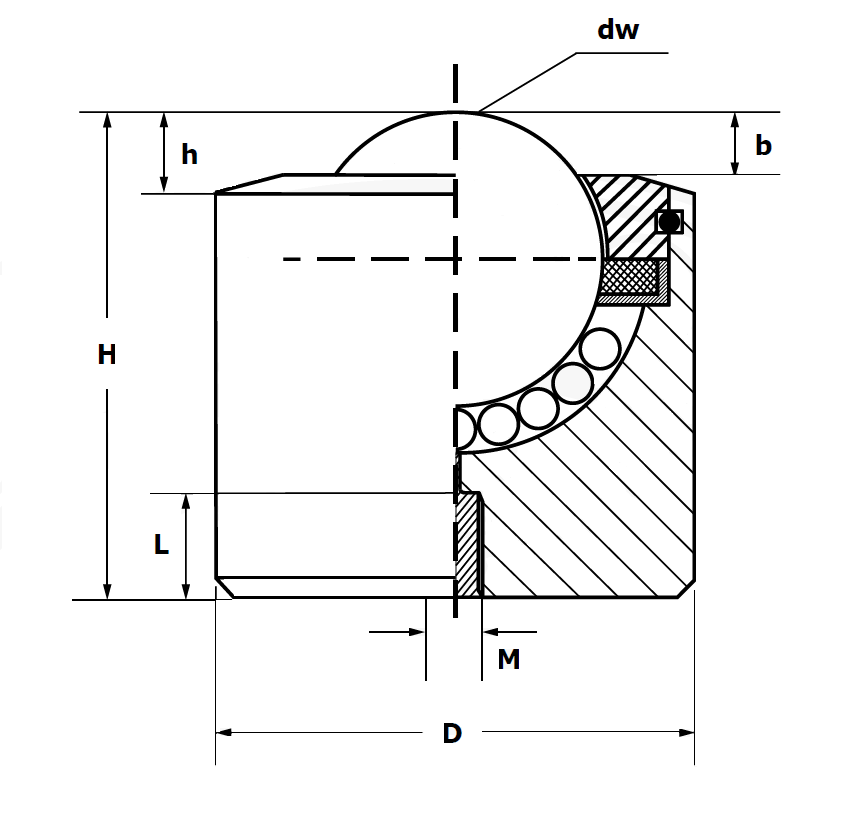

JLS JSBM-B-FL dimension sketch — Dimension sketch · open to enlarge

JSBM-B-FL
Model No	Version	dW	D	h	H	b	M	L	Loading Capacity(Kg) ⤒	Loading Capacity(Kg) ⤓	W(Kg)	Drawing
JSBM 12 B FL int.	Body made up of zinc plated steel, balls made of AISI 52100 chrome steel.	12	22 ± 0,08	5,5 ± 0,2	24	3	8	5	20	15	0,035	—
JSBM 15 B FL int.	Body made up of zinc plated steel, balls made of AISI 52100 chrome steel.	15	24 ± 0,08	5 ± 0,2	28	-	8	8	50	35	0,050	—
JSBM 22 B FL int.	Body made up of zinc plated steel, balls made of AISI 52100 chrome steel.	22	36 ± 0,08	5,3 ± 0,2	40,5	4	8	10	180	125	0,170	—
JSBM 30 B FL int.	Body made up of zinc plated steel, balls made of AISI 52100 chrome steel.	30	45 ± 0,08	8 ± 0,3	46,8	8,5	8	10	350	250	0,330	—
JSBM 45 B FL int.	Body made up of zinc plated steel, balls made of AISI 52100 chrome steel.	45	62 ± 0,1	13 ± 0,3	63,5	10	8	10	600	420	0,945	—
JSBM 12 C FL int.	Body made up of zinc plated steel, balls made of AISI 420C stainless steel.	12	22 ± 0,08	5,5 ± 0,2	24	3	8	5	15	10	0,035	—
JSBM 15 C FL int.	Body made up of zinc plated steel, balls made of AISI 420C stainless steel.	15	24 ± 0,08	5 ± 0,2	28	-	8	8	40	25	0,050	—
JSBM 22 C FL int.	Body made up of zinc plated steel, balls made of AISI 420C stainless steel.	22	36 ± 0,08	5,3 ± 0,2	40,5	4	8	10	130	90	0,170	—
JSBM 30 C FL int.	Body made up of zinc plated steel, balls made of AISI 420C stainless steel.	30	45 ± 0,08	8 ± 0,3	46,8	8,5	8	10	240	170	0,330	—
JSBM 45 C FL int.	Body made up of zinc plated steel, balls made of AISI 420C stainless steel.	45	62 ± 0,1	13 ± 0,3	63,5	10	8	10	400	280	0,945	—
JSBM 12 BD FL int.	Body made up of zinc plated steel, big ball made of plastic*, small balls made of AISI 52100 Chrome steel.	12	22 ± 0,08	5,5 ± 0,2	24	3	8	5	5	-	0,035	—
JSBM 15 BD FL int.	Body made up of zinc plated steel, big ball made of plastic*, small balls made of AISI 52100 Chrome steel.	15	24 ± 0,08	5 ± 0,2	28	-	8	8	13	-	0,050	—
JSBM 22 BD FL int.	Body made up of zinc plated steel, big ball made of plastic*, small balls made of AISI 52100 Chrome steel.	22	36 ± 0,08	5,3 ± 0,2	40,5	4	8	10	20	-	0,170	—
JSBM 30 BD FL int.	Body made up of zinc plated steel, big ball made of plastic*, small balls made of AISI 52100 Chrome steel.	30	45 ± 0,08	8 ± 0,3	46,8	8,5	8	10	25	-	0,330	—
JSBM 45 BD FL int.	Body made up of zinc plated steel, big ball made of plastic*, small balls made of AISI 52100 Chrome steel.	45	62 ± 0,1	13 ± 0,3	63,5	10	8	10	30	-	0,945	—

JLS

JSPP

Ball Transfer Units · JSPP. Choose the full model marking and mounting format for your machine.12 models / configurationsView specs

Ball Transfer Units · JSPP. Choose the full model marking and mounting format for your machine.

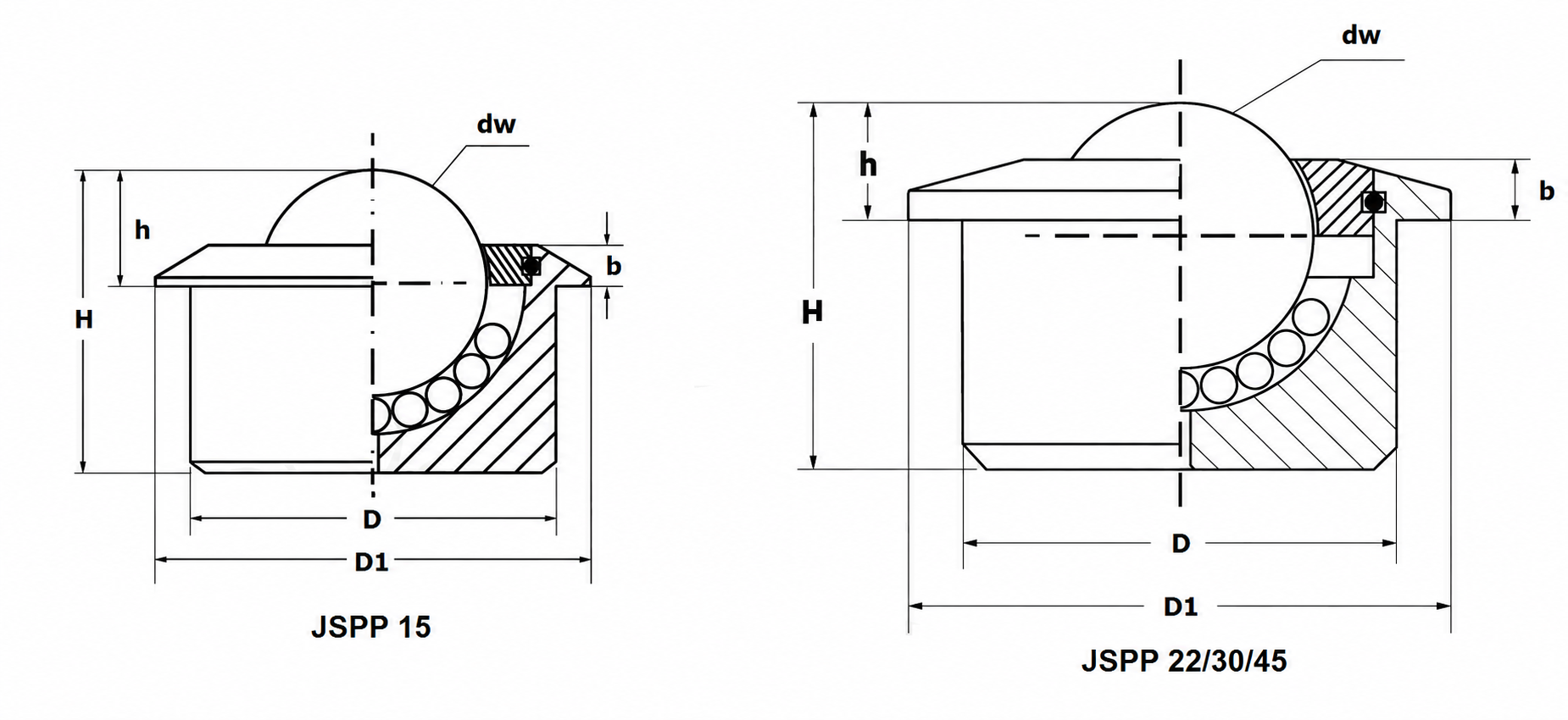

JLS JSPP dimension sketch — Dimension sketch · open to enlarge

JSPP
Model No	Version	dW	D	D 1	h	H	b	Loading Capacity(Kg) ⤒	W(Kg)	Drawing
JSPP15 PC	Body made of acetal resin (POM), balls made of AISI 316 stainless steel.	15	24 ± 0,08	30	8 ± 0,2	20	3	7	0,024	—
JSPP22 PC	Body made of acetal resin (POM), balls made of AISI 316 stainless steel.	22	36 ± 0,08	30	9,8 ± 0,2	30,5	4,5	10	0,074	—
JSPP30 PC	Body made of acetal resin (POM), balls made of AISI 316 stainless steel.	30	45 ± 0,08	55	13,8 ± 0,3	36,8	8	15	0,162	—
JSPP45 PC	Body made of acetal resin (POM), balls made of AISI 316 stainless steel.	45	62 ± 0,1	75	19 ± 0,4	53,5	10	20	0,502	—
JSPP15 PCD	Body and big ball made of acetal resin (POM), small balls made of AISI 316 stainless steel.	15	24 ± 0,08	30	8 ± 0,2	20	3	7	0,024	—
JSPP22 PCD	Body and big ball made of acetal resin (POM), small balls made of AISI 316 stainless steel.	22	36 ± 0,08	30	9,8 ± 0,2	30,5	4,5	10	0,074	—
JSPP30 PCD	Body and big ball made of acetal resin (POM), small balls made of AISI 316 stainless steel.	30	45 ± 0,08	55	13,8 ± 0,3	36,8	8	15	0,162	—
JSPP45 PCD	Body and big ball made of acetal resin (POM), small balls made of AISI 316 stainless steel.	45	62 ± 0,1	75	19 ± 0,4	53,5	10	20	0,502	—
JSPP15 PD	Body and all balls made of acetal resion (POM)	15	24 ± 0,08	30	8 ± 0,2	20	3	7	0,012	—
JSPP22 PD	Body and all balls made of acetal resion (POM)	22	36 ± 0,08	30	9,8 ± 0,2	30,5	4,5	10	0,036	—
JSPP30 PD	Body and all balls made of acetal resion (POM)	30	45 ± 0,08	55	13,8 ± 0,3	36,8	8	15	0,066	—
JSPP45 PD	Body and all balls made of acetal resion (POM)	45	62 ± 0,1	75	19 ± 0,4	53,5	10	20	0,176	—

JLS

JSPP-PA

Ball Transfer Units · JSPP-PA. Choose the full model marking and mounting format for your machine.4 models / configurationsView specs

Ball Transfer Units · JSPP-PA. Choose the full model marking and mounting format for your machine.

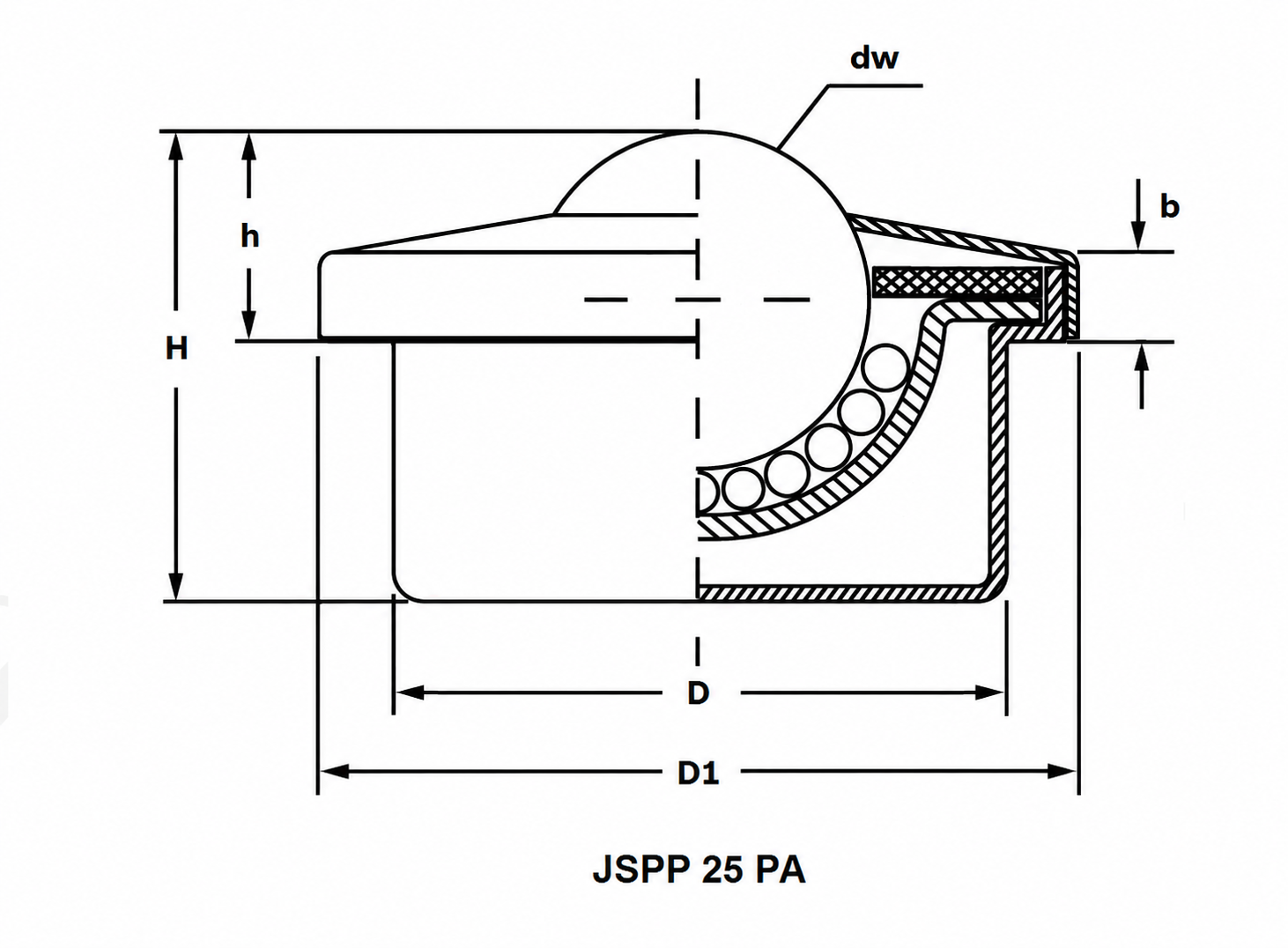

JLS JSPP-PA dimension sketch — Dimension sketch · open to enlarge

JSPP-PA
Model No	Version	dW	D	D 1	h	H	b	Loading Capacity(Kg) ⤒	W(Kg)	Drawing
JSPP 25 PA	Body and cover cap made of ABS plastic,inner ball race made of pressed metal sheet, balls made of AISI 52100 chrome steel.	25	37 ± 0,5	45,5	14,7 ± 0,3	32,5	8,5	25	0,125	—
JSPP 25 PC	Body and cover cap made of ABS plastic,inner ball race made of pressed metal sheet, balls made of AISI 52100 chrome steel balls.	25	37 ± 0,5	45,5	14,7 ± 0,3	32,5	8,5	25	0,125	—
JSPP 25 PD	Body and cover cap made of ABS plastic,inner ball race made of pressed metal sheet, big balls made of plastic, small balls made of AISI 52100 chrome steel.	25	37 ± 0,5	45,5	14,7 ± 0,3	32,5	8,5	15	0,07	—
JSPP 25 PCD	Body and cover cap made of ABS plastic,inner ball race made of pressed metal sheet, big balls made of plastic, small balls made of AISI 420C stainless steel.	25	37 ± 0,5	45,5	14,7 ± 0,3	32,5	8,5	15	0,07	—

Precision Lock Nuts3 families

JLS

JYSF

Precision Lock Nuts · JYSF. Choose the full model marking and mounting format for your machine.56 models / configurationsView specs

Precision Lock Nuts · JYSF. Choose the full model marking and mounting format for your machine.

JYSF
Model No.	D	h	d	n x g/b	t/c	m	MAX. Nm	Drawing
JYSF M14 x 1.5	30	14	25	3 x 4/-	2 -	M5	4.5	—
JYSF M15 x 1	30	14	25	3 x 4/-	2 -	M5	4.5	—
JYSF M16 x 1.5	30	14	25	3 x 4/-	2 -	M5	4.5	—
JYSF M17 x 1	32	16	27	3 x 4/-	2 -	M5	4.5	—
JYSF M18 x 1.5	32	16	27	3 x 4/-	2 -	M5	4.5	—
JYSF M20 x 1	38	16	33	3 x 4/-	2 -	M5	4.5	—
JYSF M20 x 1.5	38	16	33	3 x 4/-	2 -	M6	4.5	—
JYSF M22 x 1.5	38	16	33	3 x 4/-	2 -	M6	8.0	—
JYSF M24 x 1.5	38	16	33	3 x 5/-	2 -	M6	8.0	—
JYSF M25 x 1.5	38	16	33	3 x 5/-	2 -	M6	8.0	—
JYSF M30 x 1.5	45	18	40	3 x 5/-	2 -	M6	8.0	—
JYSF M27 x 1.5	40	18	35	3 x 5/-	2 -	M6	8.0	—
JYSF M30 x 1.5	45	18	40	3 x 5/-	2 -	M6	8.0	—
JYSF M33 x 1.5	50	18	45	3 x 5/-	2 -	M6	8.0	—
JYSF M35 x 1.5	52	18	47	3 x 5/-	2 -	M6	18.0	—
JYSF M36 x 1.5	52	18	47	3 x 6/-	2 -	M6	18.0	—
JYSF M39 x 1.5	58	20	52	3 x 6/-	2.5 -	M6	18.0	—
JYSF M40 x 1.5	58	20	52	3 x 6/-	2.5 -	M6	18.0	—
JYSF M40 x 1.5	58	20	52	3 x 6/-	2.5 -	M6	18.0	—
JYSF M42 x 1.5	62	20	56	3 x 6/-	2.5 -	M6	18.0	—
JYSF M45 x 1.5	65	20	59	3 x 6/-	2.5 -	M6	18.0	—
JYSF M48 x 1.5	70	20	64	3 x 6/-	2.5 -	M6	18.0	—
JYSF M50 x 1.5	70	20	64	3 x 6/-	2.5 -	M6	18.0	—
JYSF M52 x 1.5	73	22	68	3 x 7/ Φ 6	3 63	M8	18.0	—
JYSF M55 x 1.5	75	22	68	3 x 7/ Φ 6	3 65	M8	18.0	—
JYSF M55 x 2	73	22	68	3 x 7/ Φ 6	3 63	M8	18.0	—
JYSF M56 x 2	73	22	68	3 x 7/ Φ 6	3 63	M8	18.0	—
JYSF M60 x 2	80	22	68	3 x 7/ Φ 6	3 70	M8	18.0	—
JYSF M64 x 1.5	85	22	78	3 x 7/ Φ 6	3 75	M8	18.0	—
JYSF M68 x 2	92	24	84	3 x 8/ Φ 6	3.5 81	M8	18.0	—
JYSF M70 x 2	92	24	84	3 x 8/ Φ 6	3.5 81	M8	18.0	—
JYSF M72 x 2	94	24	86	3 x 8/ Φ 6	3.5 83	M8	18.0	—
JYSF M75 x 2	98	24	86	3 x 8/ Φ 6	3.5 87	M8	18.0	—
JYSF M76 x 2	98	24	86	3 x 8/ Φ 6	3.5 87	M8	18.0	—
JYSF M80 x 2	105	24	96	3 x 8/ Φ 7	3.5 93	M8	18.0	—
JYSF M85 x 2	110	24	102	6 x 8/ Φ 7	3.5 98	M8	18.0	—
JYSF M90 x 2	120	26	108	6 x 10/ Φ 7	4 105	M8	18.0	—
JYSF M95 x 2	125	26	113	6 x 10/ Φ 7	4 110	M8	18.0	—
JYSF M100 x 2	130	26	118	6 x 10/ Φ 7	4 115	M8	18.0	—
JYSF M105 x 2	140	28	118	6 x 10/ Φ 7	4 123	M8	35.0	—
JYSF M110 x 2	145	28	132	6 x 10/ Φ 7	4 128	M8	35.0	—
JYSF M115 x 2	150	28	137	6 x 10/ Φ 7	4 133	M8	35.0	—
JYSF M120 x 2	155	30	142	6 x 12/ Φ 7	5 138	M10	35.0	—
JYSF M125 x 2	160	30	152	6 x 12/ Φ 7	5 143	M10	35.0	—
JYSF M130 x 2	165	30	152	6 x 12/ Φ 7	5 148	M10	35.0	—
JYSF M135 x 2	175	32	160	6 x 12/ Φ 7	5 155	M10	35.0	—
JYSF M140 x 2	180	32	165	6 x 12/ Φ 7	5 160	M10	35.0	—
JYSF M145 x 2	190	32	175	6 x 12/ Φ 7	5 168	M10	35.0	—
JYSF M150 x 2	195	32	180	6 x 12/ Φ 7	5 173	M10	35.0	—
JYSF M155 x 3	200	34	180	6 x 14/ Φ 8	6 178	M10	35.0	—
JYSF M160 x 3	210	34	190	6 x 14/ Φ 8	6 185	M10	35.0	—
JYSF M165 x 3	210	34	190	6 x 14/ Φ 8	6 188	M10	35.0	—
JYSF M170 x 3	220	34	200	6 x 14/ Φ 8	6 195	M10	35.0	—
JYSF M180 x 3	230	36	205	6 x 16/ Φ 8	7 195	M12	60.0	—
JYSF M190 x 3	240	36	215	6 x 16/ Φ 8	7 215	M12	60.0	—
JYSF M200 x 3	250	38	225	6 x 16/ Φ 8	7 225	M12	60.0	—

JLS

JYSK

Precision Lock Nuts · JYSK. Choose the full model marking and mounting format for your machine.52 models / configurationsView specs

Precision Lock Nuts · JYSK. Choose the full model marking and mounting format for your machine.

JYSK
Model No.	D	h	d	n - m x L	n	b	c	MAX. Nm	Drawing
JYSK M16 x 1.5	34	18	29	4 - M4 x 12	4	4	24	3.5	—
JYSK M17 x 1	37	18	32	4 - M4 x 12	4	4	26	3.5	—
JYSK M18 x 1.5	38	18	33	4 - M4 x 12	4	4	28	3.5	—
JYSK M20 x 1	40	18	35	4 - M4 x 12	4	4	30	3.5	—
JYSK M20 x 1.5	40	18	35	4 - M4 x 12	4	4	30	3.5	—
JYSK M22 x 1.5	42	18	37	4 - M4 x 12	4	4	32	3.5	—
JYSK M24 x 1.5	44	18	39	4 - M4 x 12	4	4	34	3.5	—
JYSK M25 x 1.5	45	20	40	4 - M4 x 14	4	5	35	3.5	—
JYSK M26 x 1.5	45	20	40	4 - M4 x 14	4	5	35	3.5	—
JYSK M28 x 1.5	46	20	43	4 - M4 x 14	4	5	37	3.5	—
JYSK M30 x 1.5	48	20	45	4 - M4 x 14	4	5	39	3.5	—
JYSK M32 x 1.5	50	22	47	4 - M4 x 16	4	5	41	3.5	—
JYSK M35 x 1.5	53	22	50	4 - M4 x 16	4	5	44	3.5	—
JYSK M38 x 1.5	56	22	53	4 - M4 x 16	4	5	47	3.5	—
JYSK M40 x 1.5	58	22	55	4 - M4 x 16	4	5	49	3.5	—
JYSK M42 x 1.5	60	22	55	4 - M4 x 16	4	5	51	3.5	—
JYSK M45 x 1.5	68	22	63	6 - M4 x 18	6	6	57	3.5	—
JYSK M48 x 1.5	69	25	65	6 - M4 x 18	6	6	58	3.5	—
JYSK M50 x 1.5	70	25	66	6 - M4 x 18	6	6	60	3.5	—
JYSK M52 x 1.5	72	25	68	6 - M4 x 18	6	6	62	3.5	—
JYSK M55 x 1.5	75	25	71	6 - M4 x 18	6	6	65	3.5	—
JYSK M55 x 2	75	25	71	6 - M4 x 18	6	6	65	3.5	—
JYSK M58 x 1.5	82	26	77	6 - M5 x 20	6	6	70	4.5	—
JYSK M60 x 1.5	84	26	79	6 - M5 x 20	6	6	72	4.5	—
JYSK M60 x 2	84	26	79	6 - M5 x 20	6	6	72	4.5	—
JYSK M62 x 1.5	86	28	82	6 - M5 x 20	6	6	75	4.5	—
JYSK M65 x 1.5	88	28	84	6 - M5 x 20	6	6	77	4.5	—
JYSK M65 x 2	88	28	84	6 - M5 x 20	6	6	77	4.5	—
JYSK M68 x 1.5	93	28	87	6 - M5 x 20	6	7	80	4.5	—
JYSK M70 x 1.5	95	28	89	6 - M5 x 20	6	7	82	4.5	—
JYSK M70 x 2	95	28	89	6 - M5 x 20	6	7	82	4.5	—
JYSK M72 x 2	97	28	91	6 - M5 x 20	6	7	84	4.5	—
JYSK M75 x 1.5	100	28	94	6 - M5 x 20	6	7	87	4.5	—
JYSK M75 x 2	100	28	94	6 - M5 x 20	6	7	87	4.5	—
JYSK M80 x 2	110	32	103	6 - M6 x 22	6	8	95	8	—
JYSK M85 x 2	115	32	108	6 - M6 x 22	6	8	100	8	—
JYSK M90 x 2	120	32	113	6 - M6 x 22	6	8	100	8	—
JYSK M95 x 2	125	32	118	6 - M6 x 22	6	8	110	8	—
JYSK M100 x 2	130	32	123	6 - M6 x 22	6	8	115	8	—
JYSK M105 x 2	135	32	128	6 - M6 x 22	6	8	120	8	—
JYSK M110 x 2	140	32	133	6 - M6 x 22	6	8	125	8	—
JYSK M115 x 2	145	34	137	6 - M6 x 22	6	8	130	8	—
JYSK M120 x 2	155	36	146	6 - M6 x 25	6	8	136	8	—
JYSK M125 x 2	160	36	150	6 - M6 x 25	6	8	140	8	—
JYSK M130 x 2	165	36	155	6 - M6 x 25	6	8	148	8	—
JYSK M140 x 2	180	38	168	8 - M6 x 25	8	10	160	8	—
JYSK M150 x 2	190	38	178	8 - M6 x 25	8	10	170	8	—
JYSK M160 x 3	205	40	190	8 - M8 x 30	8	10	178	18	—
JYSK M170 x 3	215	40	200	8 - M8 x 30	8	10	193	18	—
JYSK M180 x 3	230	40	213	8 - M8 x 30	8	10	205	18	—
JYSK M190 x 3	240	40	223	8 - M8 x 30	8	10	215	18	—
JYSK M200 x 3	245	40	230	8 - M8 x 30	8	10	223	18	—

JLS

JYSR

Precision Lock Nuts · JYSR. Choose the full model marking and mounting format for your machine.59 models / configurationsView specs

Precision Lock Nuts · JYSR. Choose the full model marking and mounting format for your machine.

JYSR
Model No.	D	h	g	t	d	n-m	MAX. Nm	Drawing
JYSR M6 x 0.5	16	8	3	2	11	2-M4	3.5	—
JYSR M8 x 0.75	16	8	3	2	11	2-M4	3.5	—
JYSR M10 x 0.75	18	8	3	2	13	2-M4	3.5	—
JYSR M10 x 1	18	8	3	2	13	2-M4	3.5	—
JYSR M12 x 1	20	8	3	2	16	2-M4	3.5	—
JYSR M12 x 1.25	20	8	3	2	16	2-M4	3.5	—
JYSR M14 x 1.5	25	8	3	2	21	2-M4	3.5	—
JYSR M15 x 1	25	8	3	2	21	2-M4	3.5	—
JYSR M16 x 1.5	25	8	3	2	23	2-M5	4.5	—
JYSR M17 x 1.5	28	10	4	2	23	2-M5	4.5	—
JYSR M18 x 1.5	30	10	4	2	25	2-M5	4.5	—
JYSR M20 x 1	32	10	4	2	27	3-M5	4.5	—
JYSR M22 x 1.5	32	10	4	2	30	3-M5	4.5	—
JYSR M24 x 1.5	38	12	5	2	33	3-M6	8.0	—
JYSR M25 x 1.5	38	12	5	2	33	3-M6	8.0	—
JYSR M27 x 1.5	42	12	5	2	37	3-M6	8.0	—
JYSR M30 x 1.5	45	12	5	2	40	3-M6	8.0	—
JYSR M33 x 1.5	52	12	5	2	45	3-M6	8.0	—
JYSR M35 x 1.5	52	12	5	2	47	3-M6	8.0	—
JYSR M36 x 1.5	55	14	6	2.5	49	3-M6	8.0	—
JYSR M39 x 1.5	58	14	6	2.5	52	3-M6	8.0	—
JYSR M40 x 1.5	58	14	6	2.5	52	3-M6	8.0	—
JYSR M42 x 1.5	62	14	6	2.5	56	3-M6	8.0	—
JYSR M45 x 1.5	65	14	6	2.5	59	3-M6	8.0	—
JYSR M48 x 1.5	68	14	6	2.5	62	3-M6	8.0	—
JYSR M50 x 1.5	70	14	6	2.5	64	3-M6	18.0	—
JYSR M52 x 1.5	73	16	7	3	66	3-M8	18.0	—
JYSR M55 x 1.5	75	16	7	3	68	3-M8	18.0	—
JYSR M55 x 2	73	16	7	3	68	3-M8	18.0	—
JYSR M60 x 2	80	16	7	3	68	3-M8	18.0	—
JYSR M64 x 2	85	16	7	3	78	3-M8	18.0	—
JYSR M65 x 2	85	16	7	3	78	3-M8	18.0	—
JYSR M68 x 2	92	18	8	3.5	84	3-M8	18.0	—
JYSR M70 x 2	92	18	8	3.5	84	3-M8	18.0	—
JYSR M72 x 2	95	18	8	3.5	86	3-M8	18.0	—
JYSR M75 x 2	98	18	8	3.5	90	3-M8	18.0	—
JYSR M76 x 2	100	18	8	3.5	92	3-M8	18.0	—
JYSR M80 x 2	105	18	8	3.5	96	3-M8	18.0	—
JYSR M85 x 2	110	18	8	3.5	102	3-M8	18.0	—
JYSR M90 x 2	120	20	10	4	108	3-M8	18.0	—
JYSR M95 x 2	125	20	10	4	113	3-M8	18.0	—
JYSR M100 x 2	130	20	10	4	118	3-M8	18.0	—
JYSR M105 x 2	140	22	12	5	125	3-M8	18.0	—
JYSR M110 x 2	145	22	12	5	132	3-M8	18.0	—
JYSR M115 x 2	150	22	12	5	137	3-M8	18.0	—
JYSR M120 x 2	155	24	12	5	142	3-M8	18.0	—
JYSR M125 x 2	160	24	12	5	147	3-M8	18.0	—
JYSR M130 x 2	165	24	12	5	152	3-M8	18.0	—
JYSR M135 x 2	175	26	14	6	160	3-M10	35.0	—
JYSR M140 x 2	180	26	14	6	165	3-M10	35.0	—
JYSR M145 x 2	190	26	14	6	175	3-M10	35.0	—
JYSR M150 x 2	195	26	14	6	180	3-M10	35.0	—
JYSR M155 x 3	200	28	16	7	180	3-M10	35.0	—
JYSR M160 x 3	210	28	16	7	190	3-M10	35.0	—
JYSR M165 x 3	210	28	16	7	190	3-M10	35.0	—
JYSR M170 x 3	220	28	16	7	200	3-M10	35.0	—
JYSR M180 x 3	230	30	18	8	205	3-M12	60.0	—
JYSR M190 x 3	240	30	18	8	215	3-M12	60.0	—
JYSR M190 x 3	250	32	18	8	225	3-M12	60.0	—

Clamping Elements2 families

JLS

JLCK-HGI

Clamping Elements · JLCK-HGI. Choose the full model marking and mounting format for your machine.Part identificationView specs

Send the rail profile, mounting dimensions and clamping requirement to identify this series.

Clamping Elements · JLCK-HGI. Choose the full model marking and mounting format for your machine.

JLS

JLCK-ISK

Clamping Elements · JLCK-ISK. Choose the full model marking and mounting format for your machine.Part identificationView specs

Send the rail profile, mounting dimensions and clamping requirement to identify this series.

Clamping Elements · JLCK-ISK. Choose the full model marking and mounting format for your machine.

Cam Followers1 family

JLS

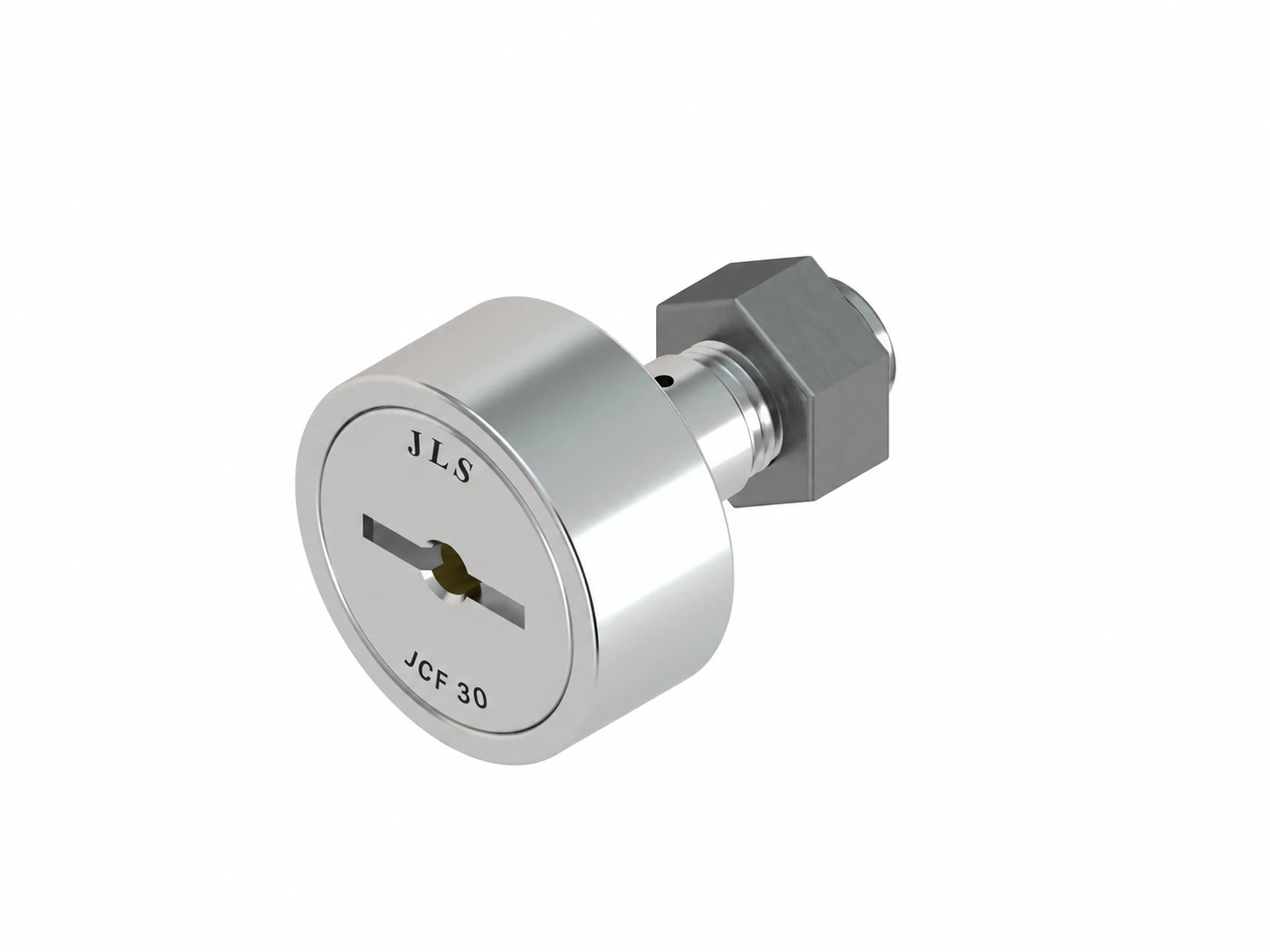

Cam Followers

Cam Followers · Cam Followers. Choose the full model marking and mounting format for your machine.18 models / configurationsView specs

Cam Followers · Cam Followers. Choose the full model marking and mounting format for your machine.

Cam Followers
New Type	Old Type	D*	C	G	d 1	G 1	B	B 1	B 2	B 3	C 1	ramin	H	Drawing
KR10	CF3	10	7	M3X0.5	3	5	8	17	9	-	0.5	0.2	2	—
KR12	CF4	12	8	M4X0.5	4	6	9	20	11	-	0.5	0.3	2.5	—
KR13	CF5	13	9	M5X0.8	5	7.5	10	23	13	-	0.5	0.3	3	—
KR16	CF6	16	11	M6X1	6	8	12.2	28.2	16	-	0.6	0.3	3	—
KR19	CF8	19	11	M8X1.25	8	10	12.2	32.2	20	-	0.6	0.3	4	—
KR22	CF10	22	12	M10X1.25	10	12	13.2	36.2	23	-	0.6	0.3	4	—
KR26	CF10K	26	12	M10X1.25	10	12	13.2	36.2	23	-	0.6	0.3	4	—
KR30	CF12	30	14	M12X1.5	12	13	15.2	40.2	25	6	0.6	0.6	6	—
KR32	CF12K	32	14	M12X1.5	12	13	15.2	40.2	25	6	0.6	0.6	6	—
KR35	CF16	35	18	M16X1.5	16	17	19.6	52.1	32.5	8	0.8	0.6	6	—
KR40	CF18	40	20	M18X1.5	18	19	21.6	58.1	36.5	8	0.8	1	8	—
KR47	CF20	47	24	M20X1.5	20	21	21.6	66.1	40.5	9	0.8	1	8	—
KR52	CF20K	52	24	M20X1.5	20	21	25.6	66.1	40.5	9	0.8	1	8	—
KR62	CF24	62	29	M24X1.5	24	25	30.6	80.1	49.5	11	0.8	1	12	—
KR72	CF24K	72	29	M24X1.5	24	25	30.6	80.1	49.5	11	0.8	1	12	—
KR80	CF30	80	35	M30X1.5	30	32	37	100	63	15	1	1	17	—
KR85	CF30K	80	35	M30X1.5	30	32	37	100	63	15	1	1	17	—
KR90	CF303	90	35	M30X1.5	30	32	37	100	63	15	1	1	17	—

Sourcing & quotations

JLS ball screws, guides & linear bearings in Delhi

Sardar Mill Store handles enquiries for JLS ball screws, end supports, guideways, linear bushings, shafts and couplings from 43 Main GB Road, Delhi 110006, serving buyers in Delhi NCR and across India.

What should I send for a JLS quote?

Share the JLS model marking, mounting dimensions, quantity and required length, plus your delivery city. Our team can match the enquiry to the relevant product family and prepare a competitive quotation.

Can I order a replacement without its full code?

Send clear photos of the marking and mounting points, measurements and machine details. Use the JLS tables above to identify the closest family before requesting a replacement.

Machine-parts enquiry guide ↗

JLS enquiry

Found your model?

Select its code in the table to prepare an enquiry, or send us a part photo, quantity and delivery location.

Enquire for JLS ↗

JLS products.Find your exact model.

Choose the type of part.

Open one family at a time.

Rolled Ball Screws

JBK

JBF

JFK

JFF

JLW

JLH

JEW

JEH

JLM-GA

JLME-GA

JLB

JLBE

JLM

JLME

JLMB

JLM-L

JLME-L

JLMB-L

JKH

JWKH

JSBE

JSBB

JST-B

JLMF-GA

JLMEF-GA

JLMF

JLMF-L

JLMEF

JLMEF-L

JLMBF

JKBA

JKBE

JLMBFC

JLMEFC

JLMFC

JLMFP-L

JLMFP

JSC-AJ

JSC

JSME-L

JSME

Linear Shafts

JSSP-E

JSWSP-E

JSHF

JSK

JRW1 / JRW2

JRW3 / JRW4

JRW6 / JRW9

JRW6-E / JRW9-E

JRW12 / JRW15

JRW18

JRU

JRT

Linear Slides

SRB

SRBM

SDS

JSPS

JSBM

JSPM

JSPM-CX

JSPM-FL / JSBM-FL

JSBM-B-FL

JSPP

JSPP-PA

JYSF

JYSK

JYSR

JLCK-HGI

JLCK-ISK

Cam Followers

JLS ball screws, guides & linear bearings in Delhi

What should I send for a JLS quote?

Can I order a replacement without its full code?

Found your model?

JLS products.
Find your exact model.
