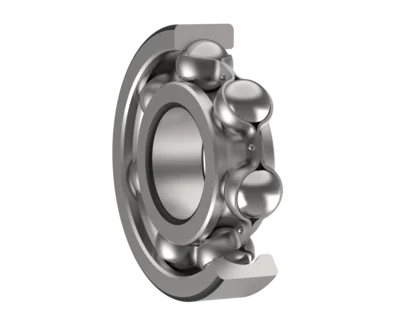

ZKL6200-series ball bearings
Dimensions, mounting limits, load ratings and reference speeds from individual ZKL product records. Each rating belongs to the listed ZKL base model.10 models / configurationsView specs
Dimensions, mounting limits, load ratings and reference speeds from individual ZKL product records. Each rating belongs to the listed ZKL base model.
| Model | Bore d | Outside D | Width B | Corner rₛ | Mass | Shaft dₐ | Housing Dₐ | Fillet rₐ | Dynamic Cᵣ | Static C₀ᵣ | Fatigue Cᵤ | Grease rpm | Oil rpm |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 6200 | 10 mm | 30 mm | 9 mm | 0.6 mm | 0.031 kg | min. 14.2 mm | max. 25.8 mm | max. 0.6 mm | 6.05 kN | 2.51 kN | 0.114 kN | 25000 min⁻¹ | 30000 min⁻¹ |
| 6201 | 12 mm | 32 mm | 10 mm | 0.6 mm | 0.037 kg | min. 16.2 mm | max. 27.8 mm | max. 0.6 mm | 6.81 kN | 3.05 kN | 0.141 kN | 18000 min⁻¹ | 24000 min⁻¹ |
| 6202 | 15 mm | 35 mm | 11 mm | 0.6 mm | 0.046 kg | min. 19.2 mm | max. 30.8 mm | max. 0.6 mm | 7.65 kN | 3.74 kN | 0.17 kN | 17000 min⁻¹ | 22000 min⁻¹ |
| 6203 | 17 mm | 40 mm | 12 mm | 0.6 mm | 0.073 kg | min. 21.2 mm | max. 35.8 mm | max. 0.6 mm | 9.58 kN | 4.81 kN | 0.215 kN | 16000 min⁻¹ | 20000 min⁻¹ |
| 6204 | 20 mm | 47 mm | 14 mm | 1 mm | 0.11 kg | min. 25.6 mm | max. 41.4 mm | max. 1 mm | 12.77 kN | 6.55 kN | 0.29 kN | 14000 min⁻¹ | 18000 min⁻¹ |
| 6205 | 25 mm | 52 mm | 15 mm | 1 mm | 0.13 kg | min. 30.6 mm | max. 46.4 mm | max. 1 mm | 14.03 kN | 7.94 kN | 0.361 kN | 12000 min⁻¹ | 16000 min⁻¹ |
| 6206 | 30 mm | 62 mm | 16 mm | 1 mm | 0.2 kg | min. 35 mm | max. 57 mm | max. 1 mm | 19.48 kN | 11.43 kN | 0.508 kN | 9500 min⁻¹ | 13000 min⁻¹ |
| 6207 | 35 mm | 72 mm | 17 mm | 1.1 mm | 0.28 kg | min. 42 mm | max. 65 mm | max. 1 mm | 25.7 kN | 15.3 kN | 0.66 kN | 11000 min⁻¹ | 13000 min⁻¹ |
| 6209 | 45 mm | 85 mm | 19 mm | 1.1 mm | 0.4 kg | min. 52 mm | max. 78 mm | max. 1 mm | 31.5 kN | 20.4 kN | 0.924 kN | 7900 min⁻¹ | 9400 min⁻¹ |
| 6210 | 50 mm | 90 mm | 20 mm | 1.1 mm | 0.46 kg | min. 57 mm | max. 83 mm | max. 1 mm | 35 kN | 23.2 kN | 0.98 kN | 7100 min⁻¹ | 8400 min⁻¹ |
