C40 variable-frequency drive model ratings
ZD calls the C40 a non-inductive variable-frequency drive for sensorless brushless DC and permanent-magnet synchronous motors. Do not assume it is interchangeable with a standard induction-motor VFD; match motor type and wiring.
ZD C40 published electrical ratings
Model
Input
Rated output current
Peak current
Power class
C40-200L-R
24 / 48 V DC
7.5 A rms
21 A peak
200 W
C40-400L-R
24 / 48 V DC
15 A rms
42 A peak
400 W
C40-200S2-BR
220 V AC
1.4 A rms
4 A peak
200 W
C40-400S2-BR
220 V AC
2.8 A rms
8 A peak
400 W
C40-750S2-BR
220 V AC
4.3 A rms
12.2 A peak
750 W
ZD
Geared motors
RC2 · Motor and gearbox combinations for lower-speed output.14 models / configurationsView specs ＋
ZD RC2 right-angle geared motor ratios
Rated output torque by motor power and reduction ratio. These are series configurations, so confirm the complete motor and gearbox code.
ZD RC2 right-angle geared motor ratios
Motor family
Output power
Reduction ratio
Allowable torque
Z6BLD200-220GKR-20S / RC2
200 W
5:1
3.13 N·m
Z6BLD200-220GKR-20S / RC2
200 W
10:1
6.97 N·m
Z6BLD200-220GKR-20S / RC2
200 W
15:1
10.45 N·m
Z6BLD200-220GKR-20S / RC2
200 W
20:1
13.94 N·m
Z6BLD200-220GKR-20S / RC2
200 W
30:1
20.91 N·m
Z6BLD200-220GKR-20S / RC2
200 W
50:1
31.37 N·m
Z6BLD200-220GKR-20S / RC2
200 W
100:1
60 N·m
Z6BLD400-220GKR-20S / RC2
400 W
5:1
6.26 N·m
Z6BLD400-220GKR-20S / RC2
400 W
10:1
13.94 N·m
Z6BLD400-220GKR-20S / RC2
400 W
15:1
20.9 N·m
Z6BLD400-220GKR-20S / RC2
400 W
20:1
27.88 N·m
Z6BLD400-220GKR-20S / RC2
400 W
30:1
41.82 N·m
Z6BLD400-220GKR-20S / RC2
400 W
50:1
60 N·m
Z6BLD400-220GKR-20S / RC2
400 W
100:1
60 N·m
Transmission1 family
ZD

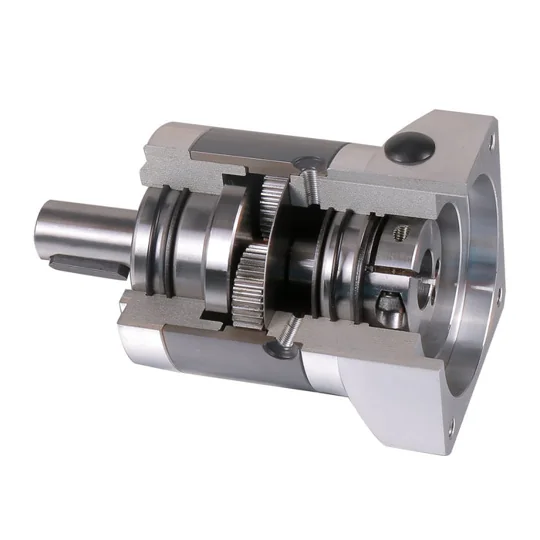

ZDWF planetary gearbox ratios
The full published output-torque matrix by ratio, stage count and frame. Torque is in N·m; a dash means no value is listed for that combination.23 models / configurationsView specs ＋
The full published output-torque matrix by ratio, stage count and frame. Torque is in N·m; a dash means no value is listed for that combination.
ZDWF planetary gearbox ratios
Reduction ratio
Stages
60ZDWF torque
80ZDWF torque
120ZDWF torque
160ZDWF torque
3
1
12
40
80
400
4
1
16
50
110
450
5
1
16
50
110
450
8
1
15
45
100
400
10
1
12
40
80
305
9
2
40
100
210
—
12
2
40
100
210
700
15
2
40
100
210
700
16
2
44
120
260
800
20
2
44
120
260
800
25
2
40
110
230
700
32
2
44
120
260
800
40
2
40
110
230
700
64
2
18
45
100
400
60
3
40
100
210
—
80
3
44
120
260
—
100
3
44
120
260
—
120
3
40
100
210
—
160
3
44
120
260
—
200
3
40
110
230
—
256
3
44
120
260
—
320
3
40
110
230
—
512
3
18
45
100
—
