Motors & drives2 families
YAKO

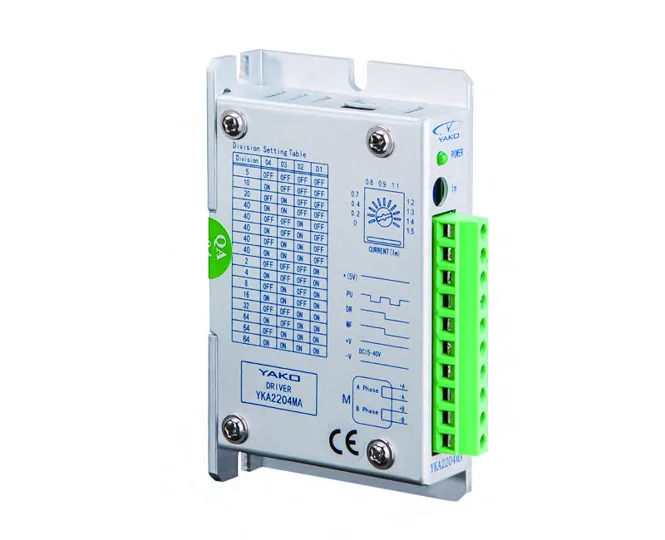

Stepper drive selection
Compare all 27 entries in the catalogue drive-selection overview. Current settings are in A and supply values are in V; the last column preserves the catalogue microstep or pulse setting range.27 models / configurationsView specs ＋
Compare all 27 entries in the catalogue drive-selection overview. Current settings are in A and supply values are in V; the last column preserves the catalogue microstep or pulse setting range.
Stepper drive selection
Driver model
Current (A)
Supply (V)
Microstep / pulse setting
YKD2204M
0.2–1.6
DC 18–36
1–32
YKD2304M
0.7–2.3
DC 18–40
1–128
YKD2305M
0.7–3.0
DC 20–50
1–200
YKD2405M
1.2–4.0
DC 20–50
1–200
YKD2408M
1.2–4.0
DC 20–80
1–200
YKD2608MH
2.0–6.0
AC 18–80
1–256
YKD2811M
1.0–8.0
AC 18–110
1–125
YKD2822M
1.0–8.0
AC 110–265
1–128
YKD3505M
1.6–5.5
DC 20–50
1–200
YKD3506M
2.3–5.9
DC 20–60
1–200
YKD3722M
0.7–7.0
AC 110–220
400–60000
YKA2204M
0.2–1.5
DC 15–40
5–64
YKA2304ME/F
0.1–3.0
DC 12–40
8–64
YKC2405M
0.7–3.0
DC 20–50
2–200
YKB2608MG/H
0.5–6.0
DC 24–80
1–200
YKC2608MG/H
0.2–6.0
AC 18–80
1–200
YKA2811MA
0.5–8.0
AC 60–110
1–200
YKB3606MA
0.2–5.8
DC 16–60
400–60000
YKA3422MA
0.6–4.2
AC 110–220
400–60000
YKC3722MA
0.7–7.0
AC 110–220
400–60000
YKD2405PR
4.2
DC 24–50
40000
YKD2608PR
4.2
DC 24–80
40000
SSD2505PR
2.5–5.0
DC 24–50
51200
YKD2405PC
4.2
DC 24–50
40000
YKD2608PC
4.2
DC 24–80
40000
SSD2505PC
2.5–5.0
DC 24–50
51200
YKA2404MA/B/C/D
0.1–3.0
DC 12–40
1–200
YAKO
Stepper motors
NEMA 17 / 23 · Motors that move in commanded steps.5 models / configurationsView specs ＋
NEMA 17 and 23 model comparison
All five examples are two-phase motors with a 1.8° step angle. Check shaft details and the driver's current setting before pairing a motor.
Selected Yako stepper motor published values
Motor model
Flange
Body length
Holding torque
Rated current
YK42HB33-02A
42 mm, NEMA 17
41 mm
0.4 N·m
2.0 A
YK42HB47-02A
42 mm, NEMA 17
49 mm
0.48 N·m
2.0 A
YK42HB60-02A
42 mm, NEMA 17
61 mm
0.72 N·m
2.0 A
YK57HB56-03A
57 mm, NEMA 23
56 mm
0.9 N·m
3.0 A
YK57HB76-03A
57 mm, NEMA 23
76 mm
1.35 N·m
3.0 A
Machine control1 family
YAKO
Programmable machine controllers
YX2N · Choose the input and output capacity your machine needs.6 models / configurationsView specs ＋
YX2N base I/O sizes
These are base-unit I/O configurations, not full purchase codes. Power supply, output type, input polarity and expansion modules complete the PLC designation.
Yako YX2N medium PLC base I/O configurations
YX2N base size
Built-in inputs
Built-in outputs
Total base I/O
16-point
8
8
16
32-point
16
16
32
48-point
24
24
48
64-point
32
32
64
80-point
40
40
80
128-point
64
64
128
Sourcing & quotations
Yako stepper drives & motors in Delhi
Sardar Mill Store handles enquiries for Yako stepper drives, stepper motors and programmable controllers from 43 Main GB Road, Delhi 110006, serving buyers in Delhi NCR and across India.
What should I send for a Yako quote?
Share the drive or motor code, supply voltage, phase count, current and interface, plus your delivery city. Our team can match the enquiry to the relevant product family and prepare a competitive quotation.
Can I order a replacement without its full code?
Send clear photos of the marking and mounting points, measurements and machine details. Use the Yako tables above to identify the closest family before requesting a replacement.
