SJC side-clamp jaw couplings

All 50 model and sleeve variants in the two published SJC side-clamp dimension tables. BL / DG / GR / RD identify the elastomer sleeve; geometry is in mm.50 models / configurationsView specs

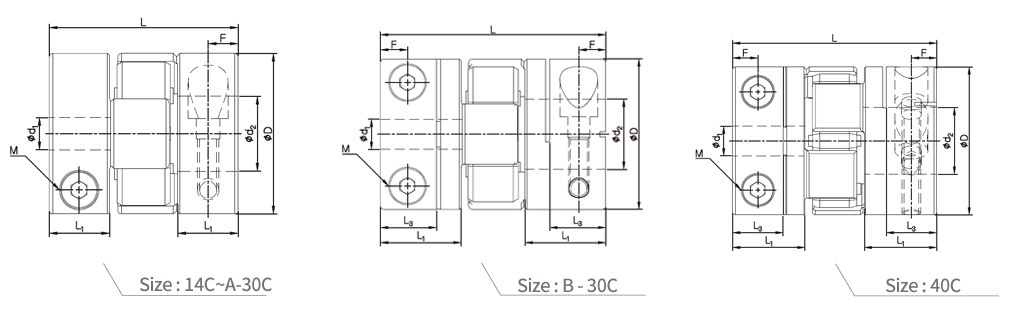

Sungil SJC side-clamp coupling dimension drawing for sizes 14C to 40C

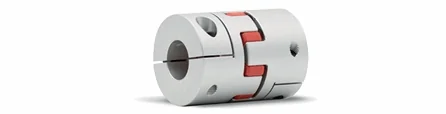

SJC jaw coupling, BL sleeve

All 50 model and sleeve variants in the two published SJC side-clamp dimension tables. BL / DG / GR / RD identify the elastomer sleeve; geometry is in mm.

SJC side-clamp jaw couplings
Model	D (mm)	L (mm)	D₂ (mm)	L₁ (mm)	L₃ (mm)	F (mm)	Clamp screw	Fastening (N·m)	Rated torque (N·m)	Max torque (N·m)	Max rpm	Inertia (kg·m²)	Torsional stiffness (N·m/rad)	Mass (g)	Angle (°)	Parallel (mm)	End-play (mm)	Hub split
SJC-14C-BL	14	22	—	7	–	3.5	M2	0.5	2	4	22,000	1.6×10⁻⁷	22	6	1	0.05	-0.2 ~ +0.6	X
SJC-14C-GR	14	22	—	7	–	3.5	M2	0.5	2	4	22,000	1.6×10⁻⁷	25	6	1	0.05	-0.2 ~ +0.6	X
SJC-14C-RD	14	22	—	7	–	3.5	M2	0.5	2.5	5	22,000	1.6×10⁻⁷	34	6	1	0.03	-0.2 ~ +0.6	X
SJC-20C-BL	20	30	—	10	–	5	M2.6	1	4	8	15,000	1.1×10⁻⁶	50	19	1	0.07	-0.3 ~ +0.8	X
SJC-20C-GR	20	30	—	10	–	5	M2.6	1	4	8	15,000	1.1×10⁻⁶	60	19	1	0.07	-0.3 ~ +0.8	X
SJC-20C-RD	20	30	—	10	–	5	M2.6	1	6	12	15,000	1.1×10⁻⁶	74	19	1	0.05	-0.3 ~ +0.8	X
SJC-25C-BL	25	31.3	—	10	–	5	M3	1.7	9	18	13,000	2.4×10⁻⁶	220	25	1	0.07	-0.4 ~ +1.0	X
SJC-25C-GR	25	31.3	—	10	–	5	M3	1.7	9	18	13,000	2.4×10⁻⁶	260	25	1	0.07	-0.4 ~ +1.0	X
SJC-25C-RD	25	31.3	—	10	–	5	M3	1.7	12	24	13,000	2.4×10⁻⁶	300	25	1	0.05	-0.4 ~ +1.0	X
SJCA-30C-BL	30	35.3	—	11.3	–	5.6	M4	3.5	12	24	10,000	6.2×10⁻⁶	170	50	1	0.08	-0.4 ~ +1.0	X
SJCA-30C-GR	30	35.3	—	11.3	–	5.6	M4	3.5	12	24	10,000	6.2×10⁻⁶	200	50	1	0.08	-0.4 ~ +1.0	X
SJCA-30C-RD	30	35.3	—	11.3	–	5.6	M4	3.5	16	32	10,000	6.2×10⁻⁶	220	50	1	0.06	-0.4 ~ +1.0	X
SJCB-30C-BL	30	44.7	—	16	11.1	5.4	M4	3.5	12	24	10,000	7.5×10⁻⁶	170	55	1	0.08	-0.4 ~ +1.0	○
SJCB-30C-GR	30	44.7	—	16	11.1	5.4	M4	3.5	12	24	10,000	7.5×10⁻⁶	200	55	1	0.08	-0.4 ~ +1.0	○
SJCB-30C-RD	30	44.7	—	16	11.1	5.4	M4	3.5	16	32	10,000	7.5×10⁻⁶	220	55	1	0.06	-0.4 ~ +1.0	○
SJCA-40C-BL	40	55	—	19.5	13.6	6.8	M5	8	17	34	8,500	3.1×10⁻⁵	1,500	135	1	0.06	-0.5 ~ +1.2	○
SJCA-40C-GR	40	55	—	19.5	13.6	6.8	M5	8	17	34	8,500	3.1×10⁻⁵	1,600	135	1	0.06	-0.5 ~ +1.2	○
SJCA-40C-RD	40	55	—	19.5	13.6	6.8	M5	8	21	42	8,500	3.1×10⁻⁵	1,750	135	1	0.04	-0.5 ~ +1.2	○
SJCB-40C-BL	40	66	—	25	16.5	8.4	M5	8	17	34	8,500	3.9×10⁻⁵	1,500	160	1	0.06	-0.5 ~ +1.2	○
SJCB-40C-GR	40	66	—	25	16.5	8.4	M5	8	17	34	8,500	3.9×10⁻⁵	1,600	160	1	0.06	-0.5 ~ +1.2	○
SJCB-40C-RD	40	66	—	25	16.5	8.4	M5	8	21	42	8,500	3.9×10⁻⁵	1,750	160	1	0.04	-0.5 ~ +1.2	○
SJC-48C-BL	48	66.8	–	25.3	17.4	9	M6	13	35	70	7,000	8.2×10⁻⁵	1,800	224	1	0.08	-0.6 ~ +1.3	○
SJC-48C-GR	48	66.8	–	25.3	17.4	9	M6	13	35	70	7,000	8.2×10⁻⁵	2,800	224	1	0.08	-0.6 ~ +1.3	○
SJC-48C-RD	48	66.8	–	25.3	17.4	9	M6	13	40	80	7,000	8.2×10⁻⁵	3,600	224	1	0.05	-0.6 ~ +1.3	○
SJC-55C-BL	55	78.3	–	30.3	21	10.5	M6	13	60	120	6,500	1.6×10⁻⁴	3,000	330	1	0.09	-0.5 ~ +1.4	○
SJC-55C-DG	55	78.3	–	30.3	21	10.5	M6	13	60	120	6,500	1.6×10⁻⁴	4,500	330	1	0.08	-0.5 ~ +1.4	○
SJC-55C-GR	55	78.3	–	30.3	21	10.5	M6	13	60	120	6,500	1.6×10⁻⁴	4,500	330	1	0.09	-0.5 ~ +1.4	○
SJC-55C-RD	55	78.3	–	30.3	21	10.5	M6	13	75	150	6,500	1.6×10⁻⁴	6,000	330	1	0.06	-0.5 ~ +1.4	○
SJC-65C-BL	65	90.3	–	35.3	25.6	12.5	M8	30	150	300	5,500	3.8×10⁻⁴	6,500	560	1	0.1	-0.6 ~ +1.5	○
SJC-65C-DG	65	90.3	–	35.3	25.6	12.5	M8	30	150	300	5,500	3.8×10⁻⁴	8,500	560	1	0.09	-0.6 ~ +1.5	○
SJC-65C-GR	65	90.3	–	35.3	25.6	12.5	M8	30	150	300	5,500	3.8×10⁻⁴	8,500	560	1	0.1	-0.6 ~ +1.5	○
SJC-65C-RD	65	90.3	–	35.3	25.6	12.5	M8	30	180	360	5,500	3.8×10⁻⁴	10,000	560	1	0.08	-0.6 ~ +1.5	○
SJC-80C-BL	80	114.2	–	45.2	30.2	14.7	M10	50	300	600	4,500	1.0×10⁻³	8,000	1,050	1	0.1	-0.6 ~ +1.5	○
SJC-80C-DG	80	114.2	–	45.2	30.2	14.7	M10	50	300	600	4,500	1.0×10⁻³	12,000	1,050	1	0.09	-0.6 ~ +1.5	○
SJC-80C-GR	80	114.2	–	45.2	30.2	14.7	M10	50	300	600	4,500	1.0×10⁻³	12,000	1,050	1	0.1	-0.6 ~ +1.5	○
SJC-80C-RD	80	114.2	–	45.2	30.2	14.7	M10	50	380	760	4,500	1.0×10⁻³	14,000	1,050	1	0.08	-0.6 ~ +1.5	○
SJC-90C-BL	95	126	–	50	35	18	M10	50	450	900	3,500	2.3 x 10⁻³	12,000	1,640	1	0.15	-0.6 ~ +2.0	○
SJC-90C-DG	95	126	–	50	35	18	M10	50	450	900	3,500	2.3 x 10⁻³	14,000	1,640	1	0.12	-0.6 ~ +2.0	○
SJC-90C-GR	95	126	–	50	35	18	M10	50	450	900	3,500	2.3 x 10⁻³	14,000	1,640	1	0.15	-0.6 ~ +2.0	○
SJC-90C-RD	95	126	–	50	35	18	M10	50	500	1,000	3,500	2.3 x 10⁻³	16,000	1,640	1	0.1	-0.6 ~ +2.0	○
SJC-100C-BL	104	140.2	–	56.2	39.9	19.9	M12	90	500	1,000	3,500	4.6×10⁻³	24,000	2,550	1	0.15	-0.6 ~ +2.0	○
SJC-100C-DG	104	140.2	–	56.2	39.9	19.9	M12	90	500	1,000	3,500	4.6×10⁻³	24,000	2,550	1	0.12	-0.6 ~ +2.0	○
SJC-100C-GR	104	140.2	–	56.2	39.9	19.9	M12	90	500	1,000	3,500	4.6×10⁻³	30,000	2,550	1	0.15	-0.6 ~ +2.0	○
SJC-100C-RD	104	140.2	–	56.2	39.9	19.9	M12	90	600	1,200	3,500	4.6×10⁻³	40,000	2,550	1	0.1	-0.6 ~ +2.0	○
SJC-120C-GR	120	160	110	65	44.5	22	M12	115	620	1,240	3,150	2.4×10⁻²	50,000	7,390	0.9	0.16	-1.0 ~ +2.2	○
SJC-120C-RD	120	160	110	65	44.5	22	M12	115	740	1,480	3,150	2.4×10⁻²	90,000	7,390	0.8	0.11	-1.0 ~ +2.2	○
SJC-135C-GR	135	185	115	75	54.5	27	M12	115	850	1,700	2,800	4.0×10⁻²	60,000	9,900	0.9	0.17	-1.0 ~ +2.6	○
SJC-135C-RD	135	185	115	75	54.5	27	M12	115	1,050	2,100	2,800	4.0×10⁻²	100,000	9,900	0.8	0.12	-1.0 ~ +2.6	○
SJC-160C-GR	160	210	135	85	60.5	26	M16	280	1,700	3,400	2,350	8.6×10⁻²	90,000	16,300	0.9	0.2	-1.5 ~ +3.0	○
SJC-160C-RD	160	210	135	85	60.5	26	M16	280	2,100	4,200	2,350	8.6×10⁻²	150,000	16,300	0.8	0.14	-1.5 ~ +3.0	○
